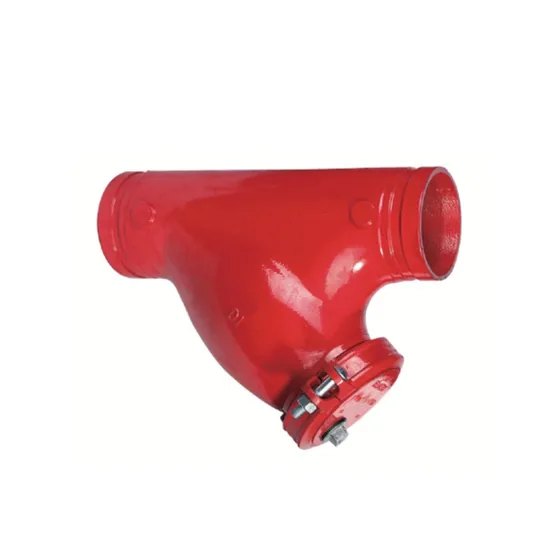

Authorised distributor for Sant ValvesGrooved end Y-type strainer for grooved fire water pipework. UL Listed (EX 29402), PN16, 50 mm to 300 mm.
Standards and approvals: UL Listed (EX 29402)
Sizes: 50 mm to 300 mm
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Inch | 2″ | 2.5″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 247.5 | 273 | 298.5 | 362 | 419 | 470 | 609.5 | 686 | 762 |
| OD | 60.3 | 76.1 | 88.9 | 114.3 | 139.7 | 165.1 | 219.1 | 273 | 323.9 |
| d | 57.15 | 72.26 | 84.94 | 110.08 | 135.48 | 160.9 | 214.4 | 268.28 | 318.29 |
| A | 15.88 | 15.88 | 15.88 | 15.88 | 15.88 | 15.88 | 19.05 | 19.05 | 19.05 |
| B | 7.92 | 7.92 | 7.92 | 9.52 | 9.52 | 9.52 | 11.13 | 12.7 | 12.7 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
