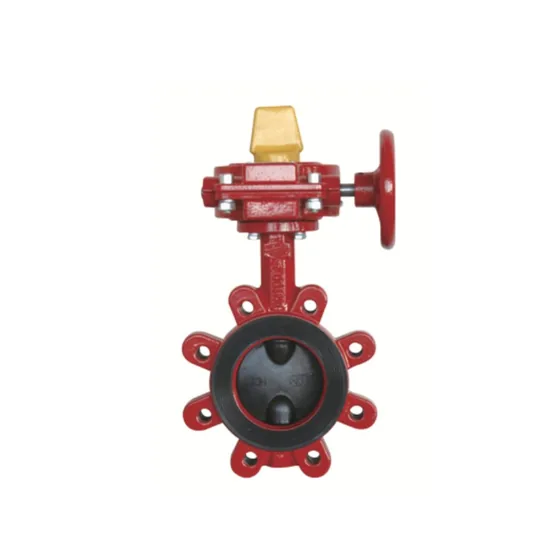

Authorised distributor for Sant ValvesLugged wafer butterfly valve with a tamper switch for supervised isolation on sprinkler and hydrant lines. UL Listed and FM Approved (EX 26413), PN16, 50 mm to 300 mm.
Standards and approvals: UL Listed / FM Approved (EX 26413), BS EN 593, UL/FM/VdS Approved, UL/FM Approved
Sizes: 50 mm to 300 mm
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Inch | 2″ | 2.5″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| A+B+L | 328 | 346.5 | 361 | 393.5 | 424.5 | 458 | 530 | 591.5 | 669 |
| C | 43 | 46 | 46 | 52 | 56 | 56 | 60 | 68 | 78 |
| H | 202.2 | 202.2 | 202.2 | 202.2 | 202.2 | 215 | 274 | 274 | 293.5 |
| W | 125 | 125 | 125 | 125 | 125 | 225 | 225 | 225 | 225 |
| ∅D (PN16) | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
| N1-M1 (P.C.D.) | 4-M16 | 4-M16 | 8-M16 | 8-M16 | 8-M16 | 8-M20 | 12-M20 | 12-M24 | 12-M24 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
Sizes: 100 mm to 400 mm
Ductile iron non rising stem gate valve with a resilient seated wedge and a post flange on top, flanged to BS EN 1092-2:1997. UL Listed and FM Approved (EX 15973), PN16, in sizes from 100 mm to 400 mm.
Sizes: 50 mm to 600 mm
Flanged ductile iron gate valve with a non rising stem and resilient seated wedge, for isolation on fire water mains. UL Listed and FM Approved (EX 15973), PN16, from 50 mm up to 600 mm.
Sizes: 50 mm to 300 mm
Grooved end version of Sant's resilient seated non rising stem gate valve, for pipework joined with grooved couplings. UL Listed and FM Approved (EX 15973), PN16, 50 mm to 300 mm.
Sizes: 50 mm to 600 mm
Outside screw and yoke gate valve with a rising stem that shows whether the valve is open, flanged to BS EN 1092-2:1997. UL Listed and FM Approved (EX 29403), PN16, 50 mm to 600 mm.
Sizes: 50 mm to 300 mm
Grooved end OS&Y gate valve with a rising stem and resilient seated wedge, for grooved fire water pipework. UL Listed and FM Approved (EX 29403), PN16, 50 mm to 300 mm.
Sizes: 50 mm to 400 mm
Compact double door check valve that clamps between pipe flanges to stop reverse flow. UL Listed (EX 16203), PN16, 50 mm to 400 mm.
