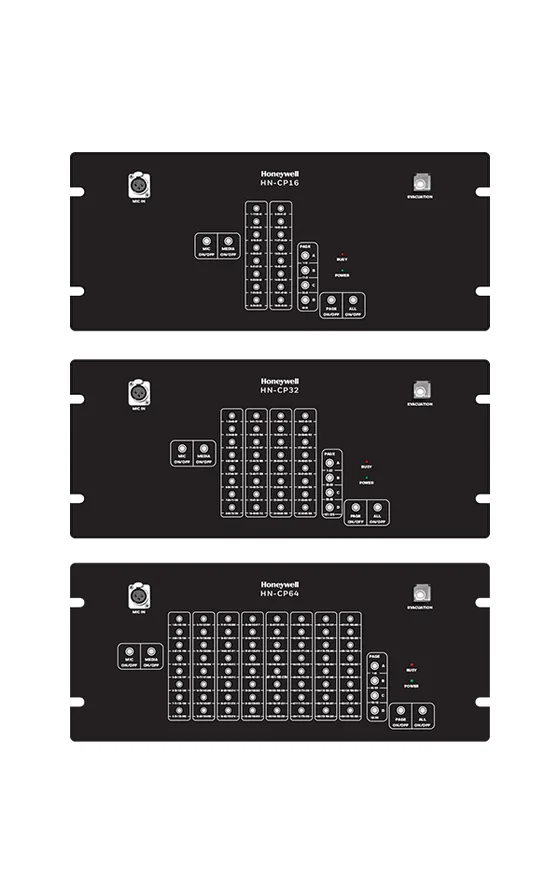

Dealer for HoneywellHoneywell RAAGA 4 HN-CP16, HN-CP32 and HN-CP64 Call Stations
Table top or 19 inch rack mount call stations for RAAGA 4 HN-MEVAC controllers, with zone selection of 1 to 64 (HN-CP16), 1 to 128 (HN-CP32) or 1 to 256 (HN-CP64) zones. A gooseneck microphone with XLR connector can be fitted.
- Zone selection up to 64, 128 or 256 zones, by model
- Table top or 19 inch rack mount versions
- Gooseneck microphone with XLR connector
- Media player on/off control
- 90 to 270 V AC universal power supply, 6 A fuse
- RJ45 connection with RS485 to the controller; CE compliant
Standards and approvals: CE
Specifications
Specifications
| Specification | Details |
|---|---|
| Total Zones | 16 | 32 | 64 |
| Pages | 16 x 4 | 32 x 4 | 64 x 4 |
| Evacuation | Round Push button with red led indication |
| Page Indication | Red led indication |
| Page Name | A, B, C, D |
| Zone Selection | Zone selection buttons with green led indication |
| All On / Off | Total connected device zones On / Off with red led indication |
| On / Off | 1 - 16 Zones On / Off with red led indication |
| LED Indication | Power / Busy |
| Volume Control | Mic / Media Player |
| Media Player | On / Off |
| Mic | On / Off |
| Microphone Input | 3 Pin XLR |
| Call station connection | RJ45, Between call station and controller RS485 |
| Transmission distance | 1200 Meters |
| THD | 0.01% |
| Signal to Noise Ratio (SNR) | >80dB |
| Volume Control (2) | 50 Hz to 20 kHz |
| Power On / Off | Power switch |
| Fuse Rating | 6 A |
| AC Input | 90 - 270V @ 50 - 60 Hz |
| Net Weight | 4.00 kg |
| Gross Weight | 5.00 kg |
| Packing Dimension | 615 mm x 535 mm x 312 mm (L x W x H) |
| Product Dimension | 585 mm x 500 mm x 280 mm (L x W x H) |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
