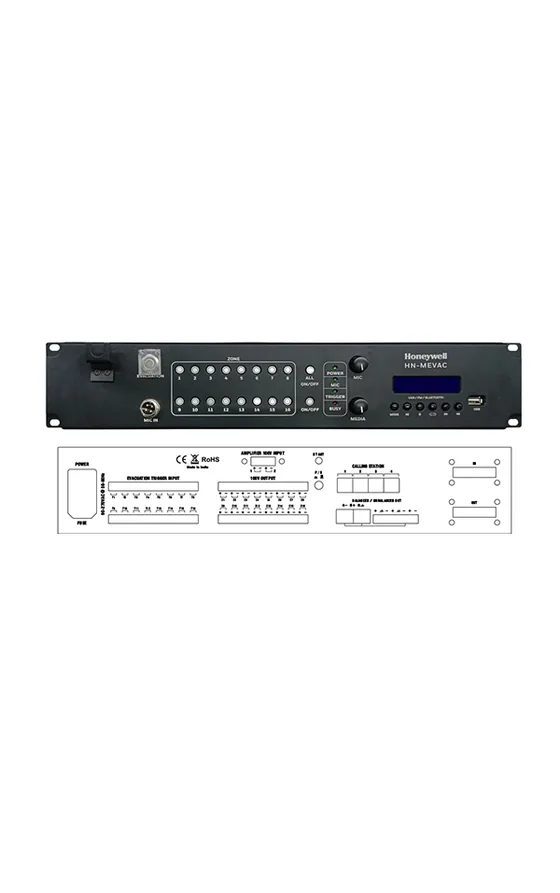

Dealer for HoneywellA 16 speaker circuit digital voice alarm controller with a digital signal processor and stored prerecorded messages. It takes signals from alarm panels and starts automatic or manual messages, pausing background music and commercial announcements in an emergency.
| Specification | HN-MEVAC |
|---|---|
| MODEL NUMBER | HN-MEVAC |
| Priority | 1 - PTT Mic, 2 - Evacuation, 3 - Call Station Input 1, 4 - Trigger Input |
| Evacuation | Round Push button with red led indication |
| Zone Selection | 1 - 16 Zone selection buttons with green led indication |
| All On / Off | Total connected device zones On / Off with red led indication |
| On / Off | 1 - 16 Zones On / Off with red led indication |
| LED Indication | Power / Mic / Trigger / Busy |
| Volume Control | Mic / Media Player |
| Media Player | MP3 / FM / Bluetooth |
| PTT Microphone Input | 4 Pin DIN Condenser type |
| Input Signal Sensitivity | 10mV/Pa |
| Call station connection | 4 x RJ45, Between call station and controller RS485 |
| Transmission distance | 1200 Meters |
| THD | 0.01% |
| Signal to Noise Ratio (SNR | >80dB |
| Balanced Input | 1.4V |
| Unbalanced Input | 1.4V |
| Evacuation Trigger Input | 15 Zones + 1 for all |
| Amplifier Input | 2 X 100V |
| Amplifier Input Watts | 2 x 1000W |
| Device output | 16 x 100V |
| Data In / Out | 2 x 26 Pin Male / Female Connector with ribbon wire |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
A local control panel that connects loudspeakers and local audio sources, for sites needing up to 16 loudspeaker circuits (zones). It stores and plays recorded emergency messages to alert or evacuate fire zones.
The core controller of Honeywell's Intevio PAVA system, handling audio storage and playback, signal processing, zone control, routing, scheduled broadcasts, supervision and fault detection. Its built-in 500 W Class-D amplifier lets one unit work as an 8-zone PAVA system.
Adds 8 speaker zones to an Intevio PAVA system, with two audio channels running at once and independent control of each channel.
Adds 24 speaker zones and 24 monitored contact inputs to an Intevio system, and can drive up to 6 external power amplifiers plus 1 backup amplifier.
The basic unit of the X-618 public address and voice alarm system, combining PA and voice alarm control in one controller. It extends over Ethernet (TCP/IP), which is meant to reduce extension and cabling work in large buildings.
An audio converter with two RJ45 inputs and four RCA outputs that lets ordinary analog amplifiers work with the X-DCS2000/EN, which provides only RJ45 audio connections.
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
