Honeywell EVACPRO-MIC Call Station for Evacpro-G2
The call station microphone of the Evacpro-G2 voice alarm system. It links to the controller over RJ45, with two-way RS485 digital communication over distances up to 300 m.

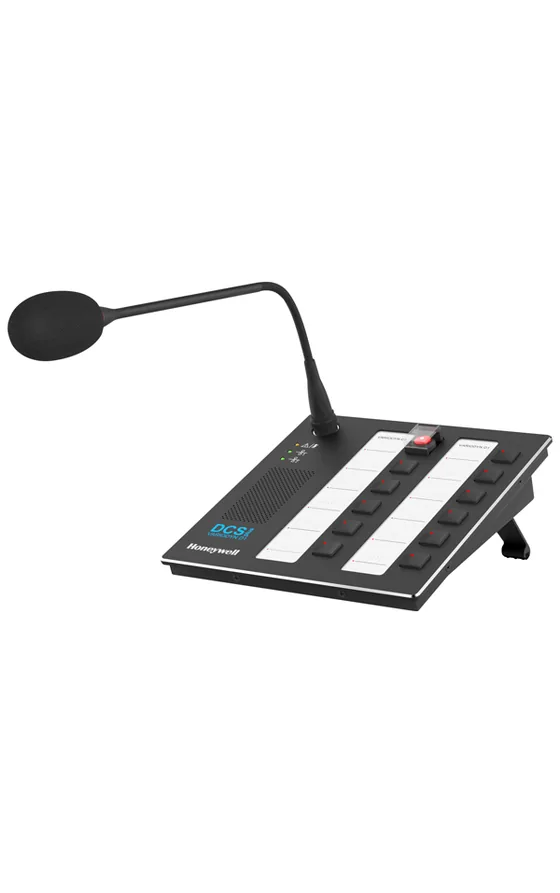

Dealer for HoneywellHoneywell Variodyn D1 DCS Plus Digital Call Station
A digital call station for voice announcements, gongs and alarms on the Variodyn D1 system; Honeywell's description covers the DCS15 and DCS2 versions. Each call station sends and receives its own voice transmissions and control signals independently.
- Voice announcements, gongs and alarms
- Up to 300 m from the system, or up to 20 kilometres with fibre optic cabling
- 2 LEDs, a microphone and a loudspeaker
- DCS15 version adds 12 configurable keys plus one external audio input and one output
- EN 54-16 listed; ambient temperature -5 to +45 °C
Standards and approvals: EN54-16
Specifications
Specifications
| Specification | DCS Plus | Details |
|---|---|---|
| Gooseneck | 400 mm | |
| Storage Temperature | -10 °C to +45 °C | |
| Audio Output Nominal level | 0 dB | |
| Audio Output Max. output level | < 6 dBu | |
| Audio Output Transmission range | 20 - 22000 Hz | |
| Audio Output Harmonic distortion at the nominal level | < 0.1% @ 1kHz | |
| Audio Output Impedance | 210 Ω | |
| Ambient temperature | -5 °C to +45 °C | |
| Microphone | Electret, cardioid diagram | |
| Audio input Nominal level | 0 dBu | |
| Audio input Transmission range | 20 - 22000 Hz | |
| Sample Rate | 48 kHz | |
| AD/DA Converter | 24 Bit | |
| Color | Black, similar to RAL 9005 | |
| Audio Output Signal/Noise Ratio | > 90 dB , A-weighting | |
| Audio Input Harmonic Distortion at Nominal Level | < 0.1% | |
| Audio Input Signal/Noise Ratio | > 90 dB , A-weighting | |
| Transmission Range | 60 to 20000 Hz | |
| Loudspeaker | 2W | |
| Current Consumption | <70 mA | |
| Air Humidity | 15% to 95% rel. hum. (non-condensing) | |
| Housing | Metal | |
| Weight | Approx. 1.42kg | |
| Dimensions(W X L X D) | 200 x 49.4 x 200 mm | |
| Specification | EN 54 - 16 | |
| DIGITAL KEYBOARD MODULE DKM PLUS | 583315.02 | |
| POWER SUPPLY FOR FO CONVERTER | 583315.02 | |
| DIGITAL CALL STATION DCS PLUS | 583501.RE | |
| FIBRE-OPTIC CONVERTER OIM | 583316.SM | |
| FIBRE-OPTIC CONVERTER DCS | 583317.21 | |
| FIBRE-OPTIC CONVERTER OIM SINGLE MODE | 583316.SM | |
| FIBRE-OPTIC CONVERTER DCS SINGLE MODE | 583315.02 | |
| WALL JACK AB | 583307 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
