Honeywell EVACPRO-MIC Call Station for Evacpro-G2
The call station microphone of the Evacpro-G2 voice alarm system. It links to the controller over RJ45, with two-way RS485 digital communication over distances up to 300 m.

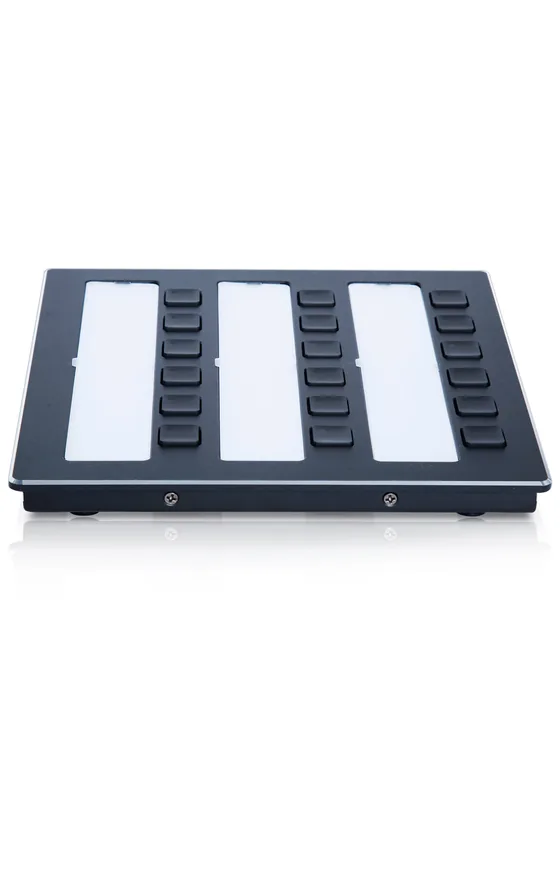

Dealer for HoneywellHoneywell Variodyn D1 DKM plus Key Module
A key module that expands a Variodyn D1 digital call station with more keys and LEDs, making it simple to select loudspeaker circuits for announcements.
- Adds keys and LEDs to a digital call station
- Selects loudspeaker circuits for voice announcements
- 18 keys and 18 LEDs per module
- Up to 3 modules on an ETCS touch screen call station
- EN 54-16 listed
Standards and approvals: EN54-16
Specifications
Specifications
| Specification | DKM plus | Details |
|---|---|---|
| Gooseneck | 400 mm | |
| Storage Temperature | -10 °C to +45 °C | |
| Audio Output Nominal level | 0 dBu | |
| Audio Output Max. output level | < 6 dBu | |
| Audio Output Transmission range | 20 - 22000 Hz | |
| Audio Output Harmonic distortion at the nominal level | < 0.1% @ 1kHz | |
| Audio Output Impedance | 210 Ω | |
| Ambient temperature | -5 °C to +45 °C | |
| Audio input Nominal level | 0 dBu | |
| Audio input Transmission range | 20 - 22000 Hz | |
| Sample Rate | 48 kHz | |
| AD/DA Converter | 24 Bit | |
| Color | Black, similar to RAL 9005 | |
| Audio Output Signal/Noise Ratio | > 90 dB , A-weighting | |
| Audio Input Harmonic Distortion at Nominal Level | < 0.1% | |
| Audio Input Signal/Noise Ratio | > 90 dB , A-weighting | |
| Transmission Range | 60 to 20000 Hz | |
| Loudspeaker | 2W | |
| Current Consumption | < 70 mA | |
| Air Humidity | 15% to 95% rel. hum. (non-condensing) | |
| Housing | Metal | |
| Weight | Approx. 1.42kg | |
| Dimensions(W X L X D) | 200 x 49.4 x 200 mm | |
| Specification | EN 54 - 16 | |
| POWER SUPPLY FOR FO CONVERTER | 583315.02 | |
| DIGITAL KEYBOARD MODULE DKM PLUS | 583526 | |
| DIGITAL CALL STATION DCS PLUS | 583520 | |
| FIBRE-OPTIC CONVERTER OIM | 583316.21 | |
| FIBRE-OPTIC CONVERTER DCS | 583317.21 | |
| FIBRE-OPTIC CONVERTER OIM SINGLE MODE | 583316.SM | |
| FIBRE-OPTIC CONVERTER DCS SINGLE MODE | 583317.SM | |
| WALL JACK AB | 583307 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
More Honeywell Call Stations & Keypads
Honeywell Intevio HMC-2000 Call Station
The call station of the Intevio system for live paging and for starting background music, service or emergency broadcasts. It can record a temporary message and broadcast it straight away without configuration.
Honeywell Intevio HMC-K8 Keypad Extension, 8 Keys
A keypad that adds 8 physical keys to the RK-MIC for faster manual operation. Each key can be set for zone selection, group selection, broadcast task selection, volume control or zone close.
Honeywell X-618 X-NPMS Network Paging Station, 7 inch Touch Screen
A touch screen paging station that connects to the X-618 system over Ethernet for live paging, audio task delivery, zone audio monitoring and intercommunication. Honeywell lists it under two codes, X-NPMS and X-NPMS-R.
Honeywell X-618 X-NPMK-B Network Paging Console, Key Operated
A key operated paging console for zone paging and broadcast control on an X-618 system on the same network.
Honeywell X-618 HN-PTT Push-to-Talk Microphone
A dynamic push-to-talk (PTT) microphone with a remote switching contact, offered as an optional part for the X-DCS2000/EN and X-NPMR.
Voice Alarm, Talk-back and Auto Dialers from other brands
Notifier
Notifier DVC-EM Digital Voice Command
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
Notifier
Notifier DS-DB Digital Series Distribution Board
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Soft-Chip
Soft-Chip Microprocessor Fire Alarm Panel with Integrated Public Address
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Soft-Chip
Soft-Chip Talk-Back Master Station for Fire Fighter Telephones (2 to 64 Zones)
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
Agni
Agni FYRLAAST Fire Telephone Control Panel
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
Agni
Agni FYRLAAST Addressable Fire Extension Telephone
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
