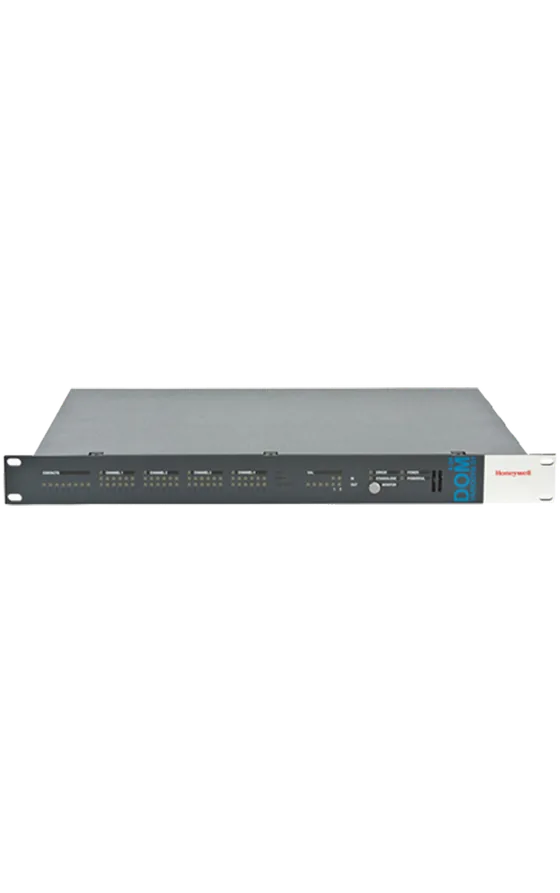

Dealer for HoneywellA 19 inch module that carries all the functions of an alarm and evacuation system, with interfaces to all input and output modules. It manages and monitors the loudspeakers and operates 6 zones.
Standards and approvals: IEC 60849
| Specification | DOM4-24 |
|---|---|
| Connection Contacts Surge voltage resistance | > 1.5 kV |
| Dimensions (W x H x D) | 483 x 44 x 345 mm/1 HE, 19” |
| Emergency Power Supply Power consumption | 24 W |
| Connection Contacts Max. voltage | 250 V AC, 30 V DC / 5 A |
| Relative Humidity | 15 % to 90 % |
| Audio Output type | electronically balanced |
| Audio Output Nominal level | 0 dB |
| Audio Output Max. output level | +6 dB |
| Audio Output Transmission range | 20 Hz to 20 kHz |
| Audio Output Max. deviation from the linear transmission | ±1 dB in transmission range |
| Audio Output Harmonic distortion at the nominal level | < 0.03 % at 1 kHz |
| Audio Output Max. harmonic distortion | 0.1 % in transmission range |
| Unweighted signal-to-noise ratio at the nominal level | > 75 dB (A) > 70 dB |
| Load impedance | min. 5 kΩ, max. 500 pF |
| Sensor Input (AVC*) Input type | symmetric ungrounded |
| Sensor Input (AVC*) Nominal level | -51 dB |
| Sensor Input (AVC*) Nominal level for emergency telephone station | 0 dB |
| Sensor Input (AVC*) Transmission range | 100 Hz to 8 kHz |
| Sensor Input (AVC*) Max. deviation from the linear transmission | ±6 dB in transmission range |
| Sensor Input (AVC*) Harmonic distortion at the nominal level | < 0.2 % at 1 kHz |
| Sensor Input (AVC*) Max. harmonic distortion | 1 % in transmission range |
| Sensor Input (AVC*) Unweighted signal-to-noise ratio at the nominal level | > 65 dB (A) > 60 dB |
| Sensor Input (AVC*) Load impedance | typ. 200 Ω |
| Control Contacts Max. voltage | 100 V DC / 1 A |
| Control Contacts Surge voltage resistant | > 2.5 kV |
| Mains Voltage Voltage range | 90 V AC to 264 V AC |
| Mains Voltage Frequency range | 47 Hz to 440 Hz |
| Mains Voltage Power consumption DOM4-24 with/without 4 x DAL | 50 W/80 W @ 230 V AC |
| Emergency Power Supply Nominal voltage | 24 V DC |
| Ambient temperature | -5°C to +55°C |
| Weight | 6.8 kg |
| Digital Output Module DOM4-24 | 583362.21.HO |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
A local control panel that connects loudspeakers and local audio sources, for sites needing up to 16 loudspeaker circuits (zones). It stores and plays recorded emergency messages to alert or evacuate fire zones.
The core controller of Honeywell's Intevio PAVA system, handling audio storage and playback, signal processing, zone control, routing, scheduled broadcasts, supervision and fault detection. Its built-in 500 W Class-D amplifier lets one unit work as an 8-zone PAVA system.
Adds 8 speaker zones to an Intevio PAVA system, with two audio channels running at once and independent control of each channel.
Adds 24 speaker zones and 24 monitored contact inputs to an Intevio system, and can drive up to 6 external power amplifiers plus 1 backup amplifier.
The basic unit of the X-618 public address and voice alarm system, combining PA and voice alarm control in one controller. It extends over Ethernet (TCP/IP), which is meant to reduce extension and cabling work in large buildings.
An audio converter with two RJ45 inputs and four RCA outputs that lets ordinary analog amplifiers work with the X-DCS2000/EN, which provides only RJ45 audio connections.
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
