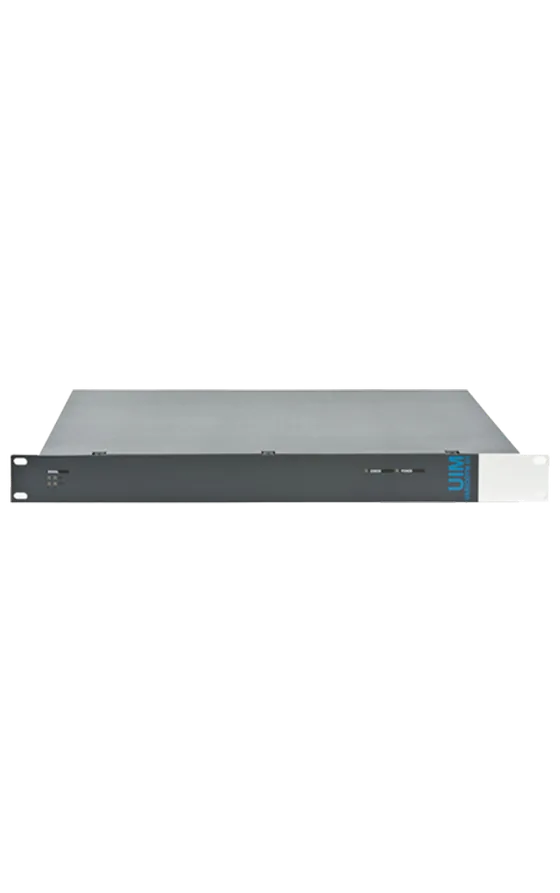

Dealer for HoneywellAn interface module that connects to the Variodyn D1 system over its DAL bus, with two analog audio inputs, two analog audio outputs and 48 control contacts for external control.
| Specification | UIM |
|---|---|
| Dimensions (W x H x D) | 483 x 44 x 345 mm/1 HE, 19” |
| Audio Input Harmonic distortion (at the nominal level) | < 0.05 % |
| Relative Humidity | 15 % to 90 % |
| Audio Output Nominal level | 0 dB |
| Audio Output Transmission range | 20 Hz to 22 kHz |
| Audio Output Harmonic distortion at the nominal level | < 0.05 % |
| Audio Output impedance XLR-socket | 200 kΩ, symmetric floating output |
| Audio Output impedance Cinch-socket | 200 kΩ, asymmetric floating output |
| Control Contacts Max. Input voltage | +36 V DC |
| Output Contacts Contact rating | 36 V DC/50 mA |
| Output Contacts Short-circuit-proof against +24 V | 1 s |
| Ambient temperature | -5 °C to +55 °C |
| Audio input Nominal level | 0 dB |
| Audio input Max. level | +6 dB |
| Audio input Transmission range | 20 Hz to 22 kHz |
| Audio input Signal-to-noise ratio | > 95 dB |
| Audio Input impedance XLR-socket | 100 kΩ , symmetric floating output |
| Audio Input Input impedance Cinch-socket | 1 kΩ, asymmetric floating output |
| Audio Output Signal-to-noise ratio | > 85 dB |
| Weight | approx. 3.6 kg |
| Universal Interface Module UIM | 583331.21 |
| Patchcable Cat5 blue, 1 m (DAL) | 583481 |
| Patchcable Cat5 blue, 2 m (DAL) | 583482 |
| Patchcable Cat5 blue, 3 m (DAL) | 583483 |
| Mounting kit 1 | 583703 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
