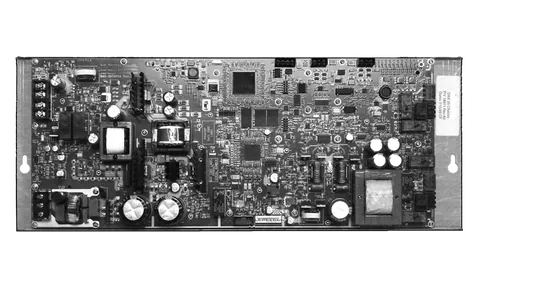

Dealer for NotifierNotifier DAX Series Digital Audio Amplifiers, 35 and 50 watt
Multi-featured digital amplifiers for jobs that do not need every feature of the DAA2 or DAA Series, offered in 35 watt and 50 watt models.
- 1 Class A or 2 Class B speaker circuits
- 35 watt and 50 watt models
- One-to-one amplifier backup with the BDA Backup Digital Amplifier
- Two-wire DAL ports convertible to fibre
- Isolated alarm bus input for backup alarm messages if digital communication is lost
- UL and ULC listed; programmable through VeriFire Tools
Standards and approvals: NFPA 72 2007 National Fire Alarm Code, Underwriter Laboratories Standard UL 864, Underwriter Laboratories of Canada (ULC) ULC-S527-99, Part 15 Class A conducted and radiated emissions as, UL Listed: file S635, ULC Listed: file S635
Specifications
Specifications
| Specification | Details |
|---|---|
| AC Power (TB7) | 120 VAC, 50/60 Hz input, 2.5 A max.; • DAX-5025 - 2.09A max. |
| Recommended wiring | 12-14 AWG (1.6 mm OD) with 600 VAC insulation. |
| Battery Connections | Supplied cable connections to batter- ies. |
| Battery Charger (DAX-35 Boards Only) | Current-limited sealed lead acid battery which charges two 12 volt batteries in series, up to 26 AH. Recommended wiring: 12-18 AWG. |
| Alarm Bus | Power-limited, supervised by source. Recom- mended wiring: 14-18 AWG twisted-pair. Requires 16VDC minimum @ 20mA across the terminals to activate. Nominal 24VDC. |
| Digital Audio Ports, wire media, A and B (TB1, TB2) | Maxi- mum distance per segment is 1900 feet (579.12 m) on Belden 5320UJ (18AWG, TP) FPL cable: 18 AWG (0.821 mm2) twisted-pair, unshielded, power-limited. For approved cable types, see wiring documentation, P/N 52916ADD: C Approved Wire Cables for Digital Audio Loops. |
| Digital Audio Ports, fiber media, fiber option modules | Dig- ital audio loop connectors support single- and multi-mode fiber with the use of fiber option modules. Refer to the Fiber Option Module datasheet for fiber specifications. |
| Speaker circuits | Power-limited outputs (exception: a DAX- 3570 or DAX-5070 used with any Canadian Room Isolator module is non-power-limited.) Supervision determined by pro- gramming. DAX-5025/70 - each circuit is rated up to 50 watts. |
| Backup | High-level audio input: 25VRMS (DAX-5025 and DAX- 3525). 70VRMS (DAX-5070 and DAX-3570). Recommended wiring AWG twisted pair (shielding recommended). Not super- vised when inactive. Supervised by backup source when active. Must be in same room or enclosure. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
