Notifier DVC-EM Digital Voice Command
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.

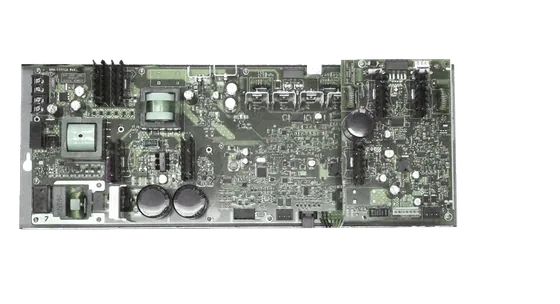

Dealer for NotifierNotifier DS-AMPE Digital Series Bulk Amplifier
A bulk audio amplifier for the DVC system, with up to four DS-AMP amplifiers connected to one DS-DB to supply high-level audio.
- Up to four DS-AMP amplifiers per DS-DB
- Backup circuits by adding a DS-BDA or dedicated DS-AMPs
- Firefighter and emergency telephone circuit
- Backup alarm message storage
- Wire, single mode or multi-mode fibre supported
- UL and ULC listed, with CSFM and FDNY listings
Standards and approvals: NFPA 72 2007 National Fire Alarm Code, Underwriter Laboratories Standard UL 864, Underwriter Laboratories of Canada (ULC) ULC-S527-99, Part 15 Class A conducted and radiated emissions as, UL Listed: S635, ULC LIsted: S635, CSFM: 7165-0028:0224 (NFS2-3030); 7165-0028:0243, FDNY: COA#6065 (NFS2-3030): COA#6085 (NFS2-640)
Specifications
Specifications
| Specification | Details |
|---|---|
| AC Power, TB4 | 120 VAC 50/60Hz input; • 4.1 A maximum when used for 25V (125W). • 3.55 A maximum when used for 70V (100W). |
| E version | 220-240 VAC 50/60 Hz input; • 2.4 A maximum when used for 25V (125W). |
| Recommended wiring | 12-14 AWG (1.6 mm O.D.) with 600 VAC insulation. |
| Battery Connections | Supplied cable connections to batter- ies. |
| High Level output (TB3) | Non-power-limited, supervision pro- vided by DS-DB. Recommended wiring: 14-18 AWG, twisted- pair, unshielded. |
| Audio In (TB2) | Power-limited, supervision provided by DS- |
| DB. Recommended wiring | 14-18 AWG, twisted-pair, unshielded. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
More Notifier Voice Evacuation & Firefighter Telephones
Notifier DS-DB Digital Series Distribution Board
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Notifier DAA2 Series Digital Audio Amplifiers
Multi-featured digital audio amplifiers that each play up to two of the 8 DVC audio channels, with a firefighter telephone riser and remote paging microphone circuit.
Notifier DAX Series Digital Audio Amplifiers, 35 and 50 watt
Multi-featured digital amplifiers for jobs that do not need every feature of the DAA2 or DAA Series, offered in 35 watt and 50 watt models.
Notifier FPJ Fireman's Phone Jack
A firefighter phone jack on a single-gang stainless steel plate, semi-flush mounted in a single-gang box, with colour-coded wires prewired for quick wiring.
Notifier FHS Fireman's Handset
A firefighter handset with a coiled cord whose plug fits the FPJ phone jack, letting firefighters talk directly with the central control area.
Voice Alarm, Talk-back and Auto Dialers from other brands
Honeywell
Honeywell Evacpro-G2 Voice Alarm Controller, 16 Zones
A local control panel that connects loudspeakers and local audio sources, for sites needing up to 16 loudspeaker circuits (zones). It stores and plays recorded emergency messages to alert or evacuate fire zones.
Honeywell
Honeywell Intevio HCU-2000 PAVA Controller with 500 W Amplifier
The core controller of Honeywell's Intevio PAVA system, handling audio storage and playback, signal processing, zone control, routing, scheduled broadcasts, supervision and fault detection. Its built-in 500 W Class-D amplifier lets one unit work as an 8-zone PAVA system.
Soft-Chip
Soft-Chip Microprocessor Fire Alarm Panel with Integrated Public Address
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Soft-Chip
Soft-Chip Talk-Back Master Station for Fire Fighter Telephones (2 to 64 Zones)
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
Agni
Agni FYRLAAST Fire Telephone Control Panel
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
Agni
Agni FYRLAAST Addressable Fire Extension Telephone
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
