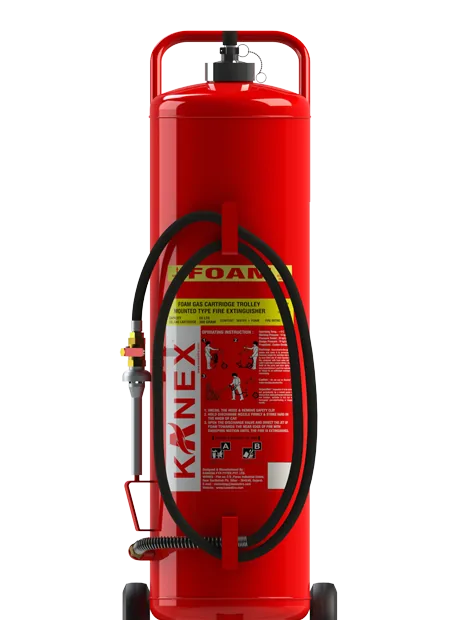

Authorised distributor for KanexA wheeled cartridge operated foam extinguisher for large flammable liquid risks in refineries, chemical industries and paint shops. It gives a 20A:233B rating with about 160 seconds of discharge and a 9 m throw.
Standards and approvals: IS:4989 (Part-II), IS : 319, IS 15683:2006, BIS, ISI, CE
Sizes: 45 L, 60 L
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 45 L | KFMRQ-45 | 20A:233B | 160 Sec. | 9 m | 15 / 17 / 35 bar | 85 kg | 1000 mm |
| 60 L | KFMRQ-60 | 20A:233B | 180 Sec. | 9 m | 15 / 17 / 35 bar | 108 kg | 1200 mm |
| Specification | 45 L | 60 L |
|---|---|---|
| Design | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 300 ±10 mm | 300 ±10 mm |
| Average % Discharge | 90% | 90% |
| Operating Temperature | +5 °C to +55 °C | +5 °C to +55 °C |
| Expelling Agent | Co2 | Co2 |
| Empty Weight (Approx.) | 40 kg | 48 kg |
| Shipping Weight (Approx.) | 86 kg | 109 kg |
| Mounting | Trolley Mounted | Trolley Mounted |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 6 L, 9 L
The HQ series water extinguisher with a stainless steel body and unique gauge testing system, suited to shops, offices and industrial locations where appearance and corrosion resistance matter. Rated 2A with 5 m throw.
Sizes: 6 L, 9 L
A nitrogen pressurised AFFF foam extinguisher for mixed Class A and Class B risks such as shops, garage forecourts and factories. The foam film seals a burning liquid surface and helps prevent re-ignition.
Sizes: 6 L, 6 kg, 9 L, 9 kg
The higher specification foam extinguisher with a stainless steel body, CE marking and a 2A:34B rating, for fuel stations, paint areas, hotels, warehouses and parking garages. Supplied in 6 and 9 size units.
Sizes: 6 kg, 9 kg
A cartridge operated AFFF foam extinguisher for refineries, chemical plants, paint shops and parking garages, where the CO2 expellant is held in a separate cartridge. Rated 2A:34B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
