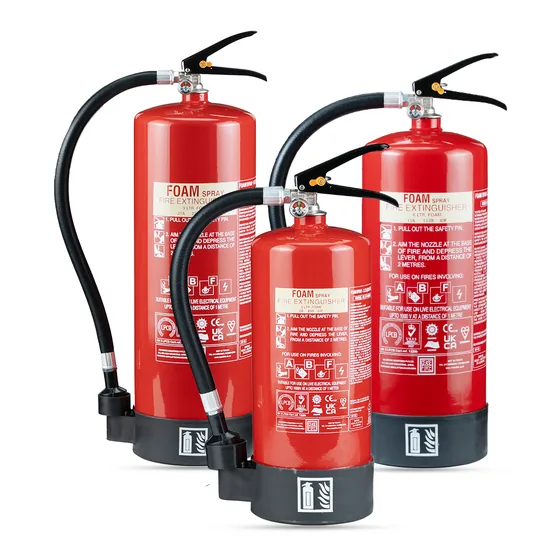

Authorised distributor for CeasefireStored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Standards and approvals: EUROCERT, LPCB, BSI, BRE GLOBAL, PED, CE, EN 3, BSI Kitemark, MED, UKCA-MED
Sizes: 3 L, 6 L, 9 L
| Specification | 3 L | FIRE EXT FOAM 3 L SS SP RED (SPRAY MODE L) | FIRE EXT FOAM 3 L MS SP RED (SPRAY MODE L) | 6 L | FIRE EXT FOAM 6 L SS SP RED (SPRAY MODE L) | FIRE EXT FOAM 6 L MS SP RED (SPRAY MODE L) | 9 L | FIRE EXT FOAM 9 L SS SP RED (SPRAY MODE L) | FIRE EXT FOAM 9 L MS SP RED (SPRAY MODE L) |
|---|---|---|---|---|---|---|---|---|---|
| Ratings | 8A, | 13A, | 21A, | ||||||
| PRODUCT CODE | CF-000779S | CF-000805S | CF-000715S | CF-000806S | CF-000716S | CF-000807S | |||
| AGENT | 6% OF KV FOAM 3% C-6 | 6% OF KV FOAM 3% C-6 | 6% OF KV FOAM 3% C-6 | 6% OF KV FOAM 3% C-6 | 6% OF KV FOAM 3% C-6 | 6% OF KV FOAM 3% C-6 | |||
| STORED PRESSURE / CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | |||
| CERTIFICATION OR VERIFING BODY | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | |||
| CERTIFICATION TYPE | PED,EN3 PENDING | PED,EN3 PENDING | PED,EN3 PENDING | PED,EN3 PENDING | PED,EN3 PENDING | PED,EN3 PENDING | |||
| CE MARKING | YES | YES | YES | YES | YES | YES | |||
| THROW | 5 METERS | 5 METERS | 5 METERS | 5 METERS | 6 METERS | 6 METERS | |||
| GROSS WEIGHT (APPROX) | 5.70 KG | 5.75 KG | 9.40 TO 9.73 KG | 9.40 TO 9.73 KG | 13.05 TO 13.95 KG | 14.70 TO 15.15 KG | |||
| NET MASS | 2.85 TO 3.00 LTR | 2.85 TO 3.00 LTR | 5.70 TO 6.00 LTR | 5.70 TO 6.00 LTR | 8.55 TO 9.00 LTR | 8.55 TO 9.00 LTR | |||
| DISCHARGE MECHANISM | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | |||
| APPLICABLE ON FIRES | A & B. | A & B. | A & B. | A & B. | A & B. | A & B. | |||
| EN 3 RATINGS | 8A | 8A | 13A | 13A | 21A | 21A | |||
| CAN CONSTRUCTION | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | |||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | |||
| INTERNOT APPLICABLEL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | |||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | |||
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES | YES | YES | |||
| WARRANTY IN YEAR | 5 | 5 | 5 | 5 | 5 | 5 | |||
| G.A. DRAWING NUMBER | CF/SP-F3-SS/GA/01 | CF/SP-F3/GA/02 | CF/SP-F6LB-SS/GA/01 | CF/SP-F6LB/GA/01 | CF/SP-F9LB-SS/GA/01 | CF/SP-F9LB/GA/02 | |||
| WORKING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | |||
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | |||
| DIA. OF SHELL (OD) | 140 MM | 140 MM | 160 MM | 160 MM | 175 MM | 175 MM | |||
| APPROX. HEIGHT OF FIRE EXT. | 435 MM | 440 MM | 520 MM | 520 MM | 610 MM | 615 MM | |||
| BODY THICKNESS | 1.5 MM | 1.6 MM | 1.5 MM | 1.6 MM | 1.5 MM | 2.0 MM | |||
| CYLINDER MATERIAL SPEC. | SS 304 (1.4301) | STEEL CR2(DC01) | SS 304 (1.4301) | STEEL CR2(DC01) | SS 304 (1.4301) | STEEL CR2(DC01) | |||
| OPERATING TEMPERATURE | 5 O C TO 60O C | 5 O C TO 60O C | 5 O C TO 60O C | 5 O C TO 60O C | 5 O C TO 60O C | 5 O C TO 60O C | |||
| SCHRAEDER VALVE | YES | YES | YES | YES | YES | YES | |||
| PRESSURE RELIEF VALVE | YES | YES | YES | YES | YES | YES |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 6 L, 9 L
Stored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Sizes: 50 L, 100 L
Trolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Foam mist extinguisher made without fluorinated chemicals such as PFAS and PFOA, for Class A, B, F and electrically started fires. The fine mist knocks down flames, cools surfaces and seals the fuel surface to help prevent re-ignition.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
