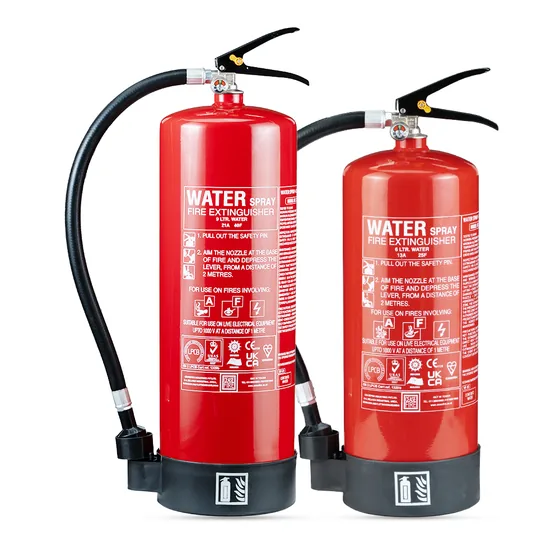

Authorised distributor for CeasefireStored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Standards and approvals: EUROCERT, LPCB, BSI, BRE GLOBAL, PED, CE, EN 3
Sizes: 6 L, 9 L
| Specification | 6 L | FIRE EXT WATER 6 L SS SP RED (SPRAY MODE L) | FIRE EXT WATER 6 L MS SP RED (SPRAY MODE L) | 9 L | FIRE EXT WATER 9 L MS SP RED (SPRAY MODE L) | FIRE EXT WATER 9 L SS SP RED (SPRAY MODE L) |
|---|---|---|---|---|---|---|
| Ratings | 13A, 25F | 21A, 40F | ||||
| PRODUCT CODE | CF-000717SA | CF-000798SA | CF-000799SA | CF-000718SA | ||
| AGENT | WATER | WATER | WATER | WATER | ||
| STORED PRESSURE / CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | ||
| CERTIFICATION OR VERIFING BODY | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | ||
| CERTIFICATION TYPE | PED,EN3 PENDING | PED,EN3 PENDING | PED,EN3 PENDING | PED,EN3 PENDING | ||
| CE MARKING | YES | YES | YES | YES | ||
| THROW | 7 METERS | 7 METERS | 7 METERS | 7 METERS | ||
| GROSS WEIGHT | 9.50 TO 10.10 KG | 9.50 TO 10.10 KG | 14.15 TO 14.85 KG | 13.05 TO 13.75 KG | ||
| NET MASS | 5.70 TO 6.00 LTR | 5.70 TO 6.00 LTR | 8.55 TO 9.00 LTR | 8.55 TO 9.00 LTR | ||
| DISCHARGE MECHANISM | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | ||
| APPLICABLE ON FIRES | A | A | A | A | ||
| EN 3 RATINGS | 13A, 25F | 13A, 25F | 21A, 40F | 21A, 40F | ||
| CAN CONSTRUCTION | DRAWN ROLLED & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DRAWN ROLLED & MIG WELDED | ||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | ||
| INTERNOT APPLICABLEL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | ||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | ||
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES | ||
| WARRANTY IN YEAR | 5 | 5 | 5 | 5 | ||
| G.A. DRAWING NUMBER | CF/SP-W6LB-SS/GA/01 | CF/SP-W6LB/GA/01 | CF/SP-W9LB/GA/02 | CF/SP-W9LB-SS/GA/01 | ||
| WORKING PRESSURE | 10 BAR | 10 BAR | 10 BAR | 10 BAR | ||
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | ||
| DIA. OF SHELL (OD) | 160 MM | 160 MM | 175 MM | 175 MM | ||
| APPROX. HEIGHT OF FIRE EXT. | 520 MM | 520 MM | 615 MM | 610 MM | ||
| BODY THICKNESS | 1.5 MM | 1.6 MM | 2.0 MM | 1.5 MM | ||
| CYLINDER MATERIAL SPEC. | SS 304 (1.4301) | STEEL CR2(DC01) | STEEL CR2(DC01) | SS 304 (1.4301) | ||
| OPERATING TEMPERATURE | 5 O C TO 60O C | 5 O C TO 60O C | 5 O C TO 60O C | 5 O C TO 60O C | ||
| SCHRAEDER VALVE | YES | YES | YES | YES | ||
| PRESSURE RELIEF VALVE | YES | YES | YES | YES |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 50 L, 100 L
Trolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Foam mist extinguisher made without fluorinated chemicals such as PFAS and PFOA, for Class A, B, F and electrically started fires. The fine mist knocks down flames, cools surfaces and seals the fuel surface to help prevent re-ignition.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
