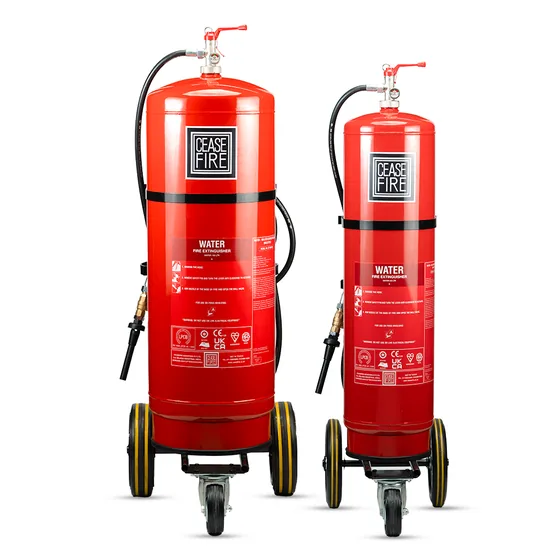

Authorised distributor for CeasefireTrolley mounted water extinguisher in 50 and 100 ltr for large Class A risks, certified to EN 1866 with a 10 m throw. It opens with a lever operated ball valve.
Standards and approvals: LPCB, BSI, EUROCERT, BRE GLOBAL, EN1866, PED, MED, KITEMARK, CE
Sizes: 50 L, 100 L
| Specification | 50 L | FIRE EXT WATER 50 L MS SP RED | FIRE EXT WATER 50 L SS SP RED | 100 L | FIRE EXT WATER 100 L MS SP RED | FIRE EXT WATER 100 L SS SP RED | FIRE EXT WATER 135 L SS SP RED |
|---|---|---|---|---|---|---|---|
| Ratings | A | A | |||||
| PRODUCT CODE | CF-001031 | CF-000755 | CF-001033 | CF-000886 | CF-000973 | ||
| AGENT | WATER | WATER | WATER | WATER | WATER | ||
| THROW | 10 METERS | 10 METERS | 10 METERS | 10 METERS | 10 METERS | ||
| CERTIFICATION OR VERIFING BODY | LPCB,BSI, EUROCERT,BRE GLOBAL | LPCB,BSI, EUROCERT | LPCB,BSI, EUROCERT,BRE GLOBAL | LPCB,BSI, EUROCERT | LPCB,BSI, EUROCERT | ||
| CERTIFICATION TYPE | EN1866, PED,MED | EN1866, PED | EN1866, PED,MED | EN1866, PED | EN1866, PED | ||
| LPCB MARKING | YES | YES | YES | YES | YES | ||
| KITEMARK MARKING | YES | YES | YES | YES | YES | ||
| CE MARKING | YES | YES | YES | YES | YES | ||
| MED/WHEEL MARKING | YES | NOT AVAILABLE | YES | NOT AVAILABLE | NOT AVAILABLE | ||
| GROSS WEIGHT (APPROX) | 102.50 KG | 91.50 KG | 178.50 KG | 158.20 KG | 208.00 KG | ||
| NET CONTENTS (APPROX) | 47.50 TO 50.00 LTR | 47.50 TO 50.00 LTR | 95.00 TO 100.00 LTR | 95.00 TO 100.00 LTR | 128.25 TO 135.00 LTR | ||
| APPROX. HEIGHT OF FIRE EXT. | 1510 MM | 1510 MM | 1520 MM | 1520 MM | 1560 MM | ||
| DISCHARGE MECHANISM | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | ||
| APPLICABLE ON FIRES | CLASS A FIRE | CLASS A FIRE | CLASS A FIRE | CLASS A FIRE | CLASS A FIRE | ||
| FIRE RATINGS | A | A | A | A | A | ||
| CAN CONSTRUCTION | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | ||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | ||
| INTERNAL COATING | EPOXY POWDER COATING | NOT APPLICABLE | EPOXY POWDER COATING | NOT APPLICABLE | NOT APPLICABLE | ||
| EXTERNAL COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | ||
| WARRANTY IN YEARS | 5 | 5 | 5 | 5 | 5 | ||
| G.A. DRAWING NUMBER | CF/SP-W50-MS/GA/04 | CF/SP-W50-SS/GA/02 | CF/SP-W100-MS/GA/02 | CF/SP-W100-SS/GA/02 | CF/SP-W135-SS/GA/02 | ||
| WORKING PRESSURE | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | ||
| DIA. OF SHELL (OD) | 300.0 MM | 300.0 MM | 400.0 MM | 400.0 MM | 450.0 MM | ||
| OPERATING TEMPERATURE | 5OC TO +60OC | 5OC TO +60OC | 5OC TO +60OC | 5OC TO +60OC | 5OC TO +60OC | ||
| HYDROSTATIC TEST PRESSURE | 30BAR | 30BAR | 30BAR | 30BAR | 30BAR | ||
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | SS 304 (1.4301) | STEEL HR3(DD13) | SS 304 (1.4301) | SS 304 (1.4301) | ||
| BODY THICKNESS | 3.0 MM | 1.8 MM | 3.5MM | 2.0 MM | 2.5 MM |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher for Class A and B fires in 3, 6 and 9 ltr, with stainless steel or mild steel bodies in red or chrome. The 3 ltr size is rated 8A, 89B.
Sizes: 3 L, 6 L, 9 L
Stored pressure foam extinguisher with a spray nozzle in 3, 6 and 9 ltr, in stainless or mild steel. Ceasefire rates it for Class A, B, F and electrically started fires, lists 8A for the 3 ltr size and shows EN3 approval as pending.
Sizes: 50 L, 100 L
Trolley mounted foam extinguisher in 50 and 100 ltr for large Class A and B risks, certified to EN 1866 and rated A, IVB. It has a 7 m throw and opens with a lever operated ball valve.
Sizes: 6 L, 9 L
Stored pressure water extinguisher for Class A fires in 6 and 9 ltr, with stainless or mild steel bodies in red or chrome. The 6 ltr size is rated 13A and the jet reaches 7 m.
Sizes: 6 L, 9 L
Stored pressure water extinguisher with a spray nozzle in 6 and 9 ltr for Class A, F and electrically started fires, rated 13A, 25F on the 6 ltr size. Ceasefire shows EN3 approval as pending for this model.
Foam mist extinguisher made without fluorinated chemicals such as PFAS and PFOA, for Class A, B, F and electrically started fires. The fine mist knocks down flames, cools surfaces and seals the fuel surface to help prevent re-ignition.
Sizes: 6 L, 9 L
A nitrogen pressurised water extinguisher for Class A fires in offices, stores and industrial areas, filled with RO processed or distilled water. Fire rating 2A with about 22 seconds discharge and 5 m throw.
Sizes: 6 L, 9 L
A water extinguisher for Class A fires that uses a separate CO2 cartridge as the expellant instead of stored nitrogen. Rated 2A with about 22 seconds discharge and 4 m throw.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher in 2, 6 and 9 L for Class A fires in wood, plastics and paper, pressurised with dry nitrogen. The 2 L size is rated 1A with a minimum effective discharge time of 8 seconds.
Sizes: 2 L, 6 L, 9 L
Stored pressure water extinguisher with a stainless steel cylinder in 2, 6 and 9 L, for Class A fires in coastal and high salinity locations. The 2 L size is rated 1A.
Sizes: 9 L
A 9 litre stored pressure extinguisher that discharges pressurised water on Class A fires in wood, paper, fabric and rubber. It is meant for places where the fire risk comes from solid materials.
Sizes: 9 L
A 9 litre stored pressure extinguisher with aqueous film forming foam for Class A and Class B fires, especially those in petrol, diesel, paint and oils. The foam blankets the burning liquid, cutting off oxygen and preventing re-ignition.
