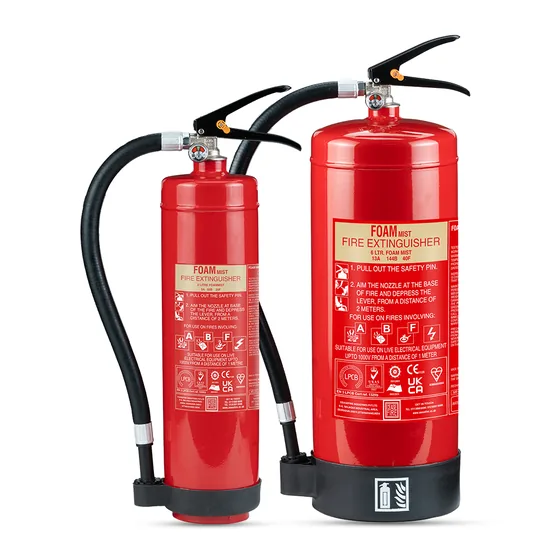

Ceasefire EN Approved Foam Mist Fire Extinguisher, Stored Pressure
Ceasefire logoAuthorised distributor for Ceasefire

Ceasefire EN Approved Foam Mist Fire Extinguisher, Stored Pressure

Foam mistEN approved2 ltr and 6 ltr5A, 55B, 25FStainless steel

Stainless steel foam mist extinguisher in 2 and 6 ltr, using water with 1% Telesolve foaming agent, for Class A, B, F and electrically started fires. The 2 ltr size is rated 5A, 55B, 25F with a 3 m throw.

  • Rotor mixes water, foaming agent and air into a 40 to 60 micron mist
  • Ceasefire states it uses far less water than a conventional water jet
  • Squeeze grip discharge, pressure gauge and EPDM hose
  • LPCB, BSI Kitemark, PED, MED and UKCA MED certified, built to EN3
  • SS 304 body, drawn, rolled and MIG welded
  • 5 year warranty

Standards and approvals: EUROCERT, LPCB, BSI, BRE GLOBAL, PED, EN3, KITEMARK, CE, BSI Kitemark, MED, UKCA-MED

Sizes: 2 L, 6 L

Ask price & availability

Download the official Ceasefire catalogue (PDF, 38.6 MB)

Specifications

Specifications
Specification2 LFIRE EXT FOAM MIST 2 L SS SP RED6 LFIRE EXT FOAM MIST 6 L SS SP RED
Ratings5A,55B, 25F13A, 144B, 40F
PRODUCT CODECF-000696CF-000698
AGENTTELESOLVE1%TELESOLVE1%
STORED PRESSURE / CARTRIDGESTORED PRESSURESTORED PRESSURE
CERTIFICATION OR VERIFING BODYEUROCERT,LPCB,BSI,BRE GLOBALEUROCERT,LPCB,BSI,BRE GLOBAL
CERTIFICATION TYPEPED,EN3PED,EN3
LPCB MARKINGYESYES
KITEMARK MARKINGYESYES
CE MARKINGYESYES
WHEEL / MED MARKINGYESYES
THROW3 METERS3 METERS
GROSS WEIGHT (APPROX)4.45 TO 4.65 KG10.30 TO 10.90 KG
GROSS WEIGHT (WITH LESS THICKNESS)4.50KG10.60KG
NET MASS1.90 TO 2.00 LTR5.70 TO 6.00 LTR
DISCHARGE MECHANISMSQUEEZE GRIPSQUEEZE GRIP
APPLICABLE ON FIRESA, B, F & ELECTRICAL STARTED FIRE.A, B, F & ELECTRICAL STARTED FIRE.
EN 3 RATINGS5A, 55B, 25F13A, 144B, 40F
CAN CONSTRUCTIONDRAWN ROLLED & MIG WELDEDDRAWN ROLLED & MIG WELDED
VALVE / CAP CONSTRUCTIONFORGING AND MACHININGFORGING AND MACHINING
EXTERNAL COATINGEPOXY POLYESTER POWDEREPOXY POLYESTER POWDER
HELIUM LEAK DETECTION TESTINGYESYES
WARRANTY IN YEAR55
G.A. DRAWING NUMBERCF/SP-FM2LB/GA/02CF/SP-FM6LB/GA/02
WORKING PRESSURE15 BAR15 BAR
HYDROSTATIC TEST PRESSURE35 BAR35 BAR
DIA. OF SHELL (OD)108 MM175 MM
APPROX. HEIGHT OF FIRE EXT.485 MM575 MM
BODY THICKNESS (APPROX)1.5 MM1.5 MM
CYLINDER MATERIAL SPEC.SS 304 (1.4301)SS 304 (1.4301)
OPERATING TEMPERATURE5 O C TO 60O C5 O C TO 60O C
SCHRAEDER VALVEYESYES
PRESSURE RELIEF VALVEYESYES

Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
