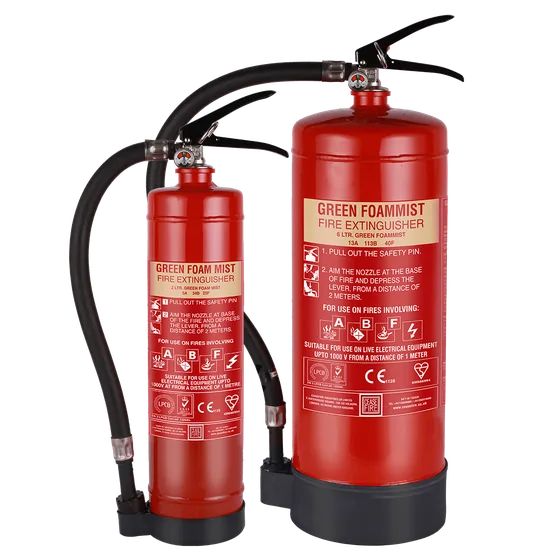

Ceasefire EN Approved Green Foam Mist Fire Extinguisher
Ceasefire logoAuthorised distributor for Ceasefire

Ceasefire EN Approved Green Foam Mist Fire Extinguisher

Green foam mistEN approved2 ltr and 6 ltr5A, 34B, 25FStainless steel

Stainless steel foam mist extinguisher in 2 and 6 ltr, using a lower 0.5% dose of Telesolve foaming agent, for Class A, B, F and electrically started fires. The 2 ltr size is rated 5A, 34B, 25F with a 3 m throw.

  • Rotor mixes water, foaming agent and air into a 40 to 60 micron mist
  • Nearly all the mist evaporates in the fire, cooling and smothering it
  • Squeeze grip discharge, pressure gauge and EPDM hose
  • LPCB, BSI Kitemark, PED, MED and UKCA MED certified, built to EN3
  • SS 304 body, drawn, rolled and MIG welded
  • 1 year warranty

Standards and approvals: EUROCERT, LPCB, BSI, PED, EN3, KITEMARK, CE, BSI Kitemark, MED, UKCA-MED

Sizes: 2 L, 6 L

Ask price & availability

Download the official Ceasefire catalogue (PDF, 38.6 MB)

Specifications

Specifications
Specification2 LFIRE EXT GREEN FOAM MIST 2 L SS SP RED6 LFIRE EXT GREEN FOAM MIST 6 L SS SP RED
Ratings5A, 34B, 25F13A, 133B, 40F
PRODUCT CODECF-000838CF-000839
AGENTTELESOLVE 0.5%TELESOLVE 0.5%
STORED PRESSURE / CARTRIDGESTORED PRESSURESTORED PRESSURE
CERTIFICATION OR VERIFING BODYEUROCERT, LPCB,BSIEUROCERT, LPCB,BSI
CERTIFICATION TYPEPED,EN3PED,EN3
LPCB MARKINGYESYES
KITEMARK MARKINGYESYES
CE MARKINGYESYES
THROW3 METERS3 METERS
GROSS WEIGHT (APPROX)4.336KG10.439KG
GROSS WEIGHT (WITH LESS THICKNESS)4.50KG10.60KG
NET MASS2.00 LTR6.00 LTR
DISCHARGE MECHANISMSQUEEZE GRIPSQUEEZE GRIP
APPLICABLE ON FIRESA, B, F & ELECTRICAL STARTED FIRE.A, B, F & ELECTRICAL STARTED FIRE.
EN 3 RATINGS5A, 34B, 25F13A, 133B, 40B
CAN CONSTRUCTIONDRAWN ROLLED & MIG WELDEDDRAWN ROLLED & MIG WELDED
VALVE / CAP CONSTRUCTIONFORGING AND MACHININGFORGING AND MACHINING
EXTERNAL COATINGEPOXY POLYESTER POWDEREPOXY POLYESTER POWDER
HELIUM LEAK DETECTION TESTINGYESYES
WARRANTY IN YEAR11
WORKING PRESSURE15 BAR15 BAR
HYDROSTATIC TEST PRESSURE35 BAR35 BAR
DIA. OF SHELL (OD)109 MM175 MM
APPROX. HEIGHT OF FIRE EXT.415MM466MM
BODY THICKNESS (APPROX)1.5 MM1.5 MM
CYLINDER MATERIAL SPEC.SS 304 (1.4301)SS 304 (1.4301)
OPERATING TEMPERATURE5 O C TO 60O C5 O C TO 60O C
SCHRAEDER VALVEYESYES
PRESSURE RELIEF VALVEYESYES

Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.

More Ceasefire Watermist, Foam Mist & CAFS

Water Mist and CAFS Fire Extinguishers from other brands

Minimax

Minimax CAFS Backpack, Compressed Air Foam, 9 L

CAFS backpackWater + AFFF 6%9 L

Sizes: 9 L

Compressed air foam backpack holding 9 L of water with 6 percent AFFF, expelled by air from a 2 L cylinder at 200 bar. Rated 55A 233B with a 14 m jet, for first intervention from fire trucks, industrial sites and marine settings.
