Automatic modular fire extinguishers are ceiling or wall mounted units that sense the heat of a fire and discharge on their own, protecting stores, panel rooms, server rooms and engine compartments where nobody is around to use a hand held unit. FPS offers ABC powder and clean agent modules from Ceasefire, Kanex, Minimax, Savemax and Balaji Fire Safety in Bhopal and across Madhya Pradesh.

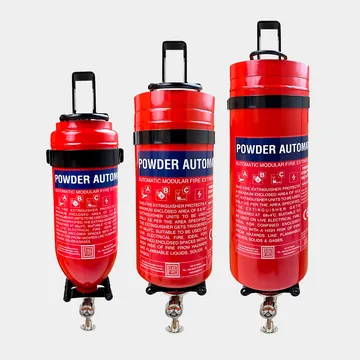

Wall mounted automatic extinguisher with ABC powder (MAP 50 and MAP 90) in 1, 2, 4, 6 and 9 kg, with a thermal actuator that discharges when the temperature rises. It suits compact spaces such as boats and engine compartments.

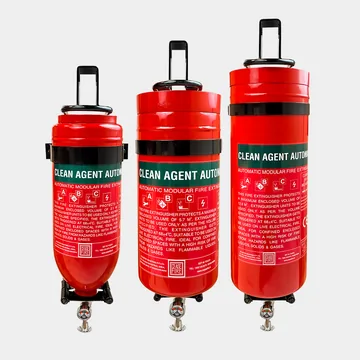

Wall mounted automatic extinguisher filled with Fluoroketone (FK-5-1-12) clean agent, in sizes from 1 kg to 9 kg including 1.5 kg and 2.5 kg. It works as a standalone modular suppression unit for small, high risk spaces.
Sizes: 5 kg, 10 kg

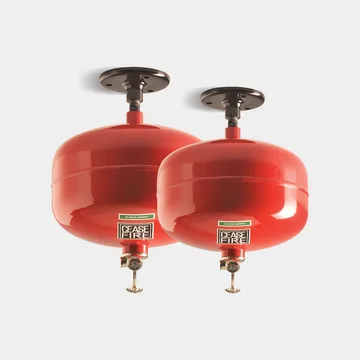

Ceiling mounted automatic extinguisher with clean agent (Fluoroketone or HFC 227ea) in 5 kg and 10 kg, which senses heat and discharges without anyone present. It needs no piping or ducting and leaves no residue.
Sizes: 5 kg, 10 kg

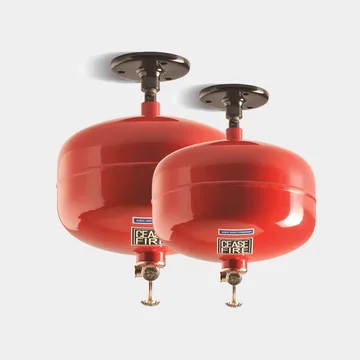

Ceiling mounted automatic extinguisher with MAP 90 ABC powder in 5 kg and 10 kg, for stores, factories and high stacks that hand held units cannot reach. It installs without piping or ducting and activates on its own when it senses heat.

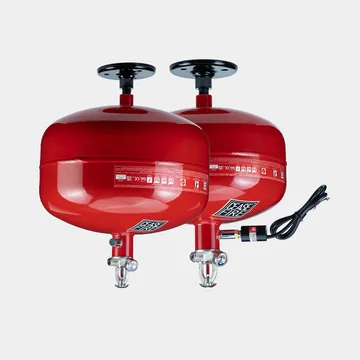

Self contained ceiling unit with MAP 90 ABC powder in 2, 5, 10 and 15 kg, triggered by a quartzoid bulb sprinkler head at about 68 C. It can be made monitorable with a pressure switch or linked with Metron actuators into a total flooding system.
Self contained ceiling unit with Fluoroketone (FK-5-1-12) clean agent in 2, 5, 10 and 15 kg, triggered by a quartzoid bulb at about 68 C. It leaves no residue, and Ceasefire states it is safe in confined spaces with people present.
Sizes: 4 kg, 6 kg, 9 kg

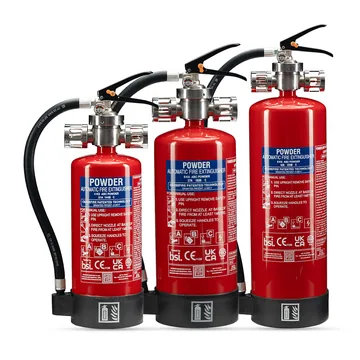

A MAP 90 powder extinguisher in 4, 6 and 9 kg that can be used by hand, launched towards a large fire, or left to act as a standalone suppression unit. Two heat sensors trigger it at about 68 C for a 360 degree discharge.

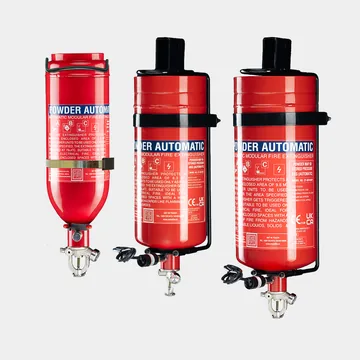

Wall mounted self contained unit with MAP 50 ABC powder in 1, 2, 4, 6 and 9 kg, triggered by a quartzoid bulb at about 68 C. It gives round the clock protection where people are rarely present and can be linked into a total flooding system.

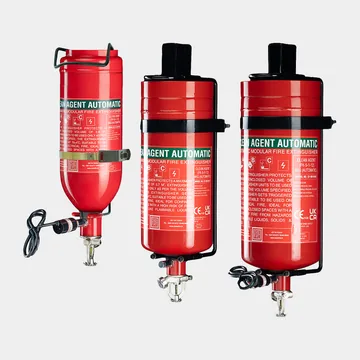

Wall mounted self contained unit with Fluoroketone (FK-5-1-12) clean agent in 1, 2, 4, 6 and 9 kg, triggered by a quartzoid bulb at 68 C, plus or minus 4 C. It leaves no residue and suits electronics and confined spaces.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg

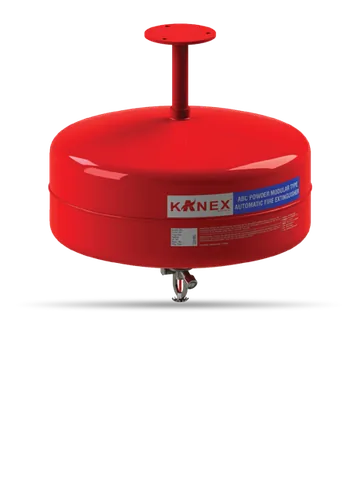

Ceiling mounted module filled with UL listed MAP 90 dry powder that detects and suppresses fire in one unit when the heat sensing bulb bursts. Supplied in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg

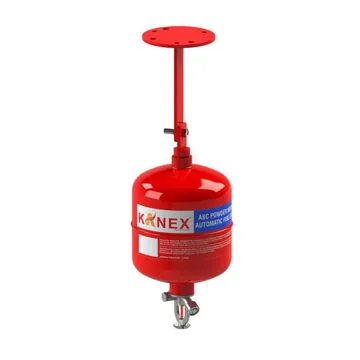

The RQ series ceiling module using MAP 50 dry powder, the regular quality (RQ) version of the MAP 90 unit, with the same automatic bulb operation. Available in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Ceiling module charged with FE-36 clean agent gas that leaves no residue, suited to electrical and electronic risks. Offered in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg

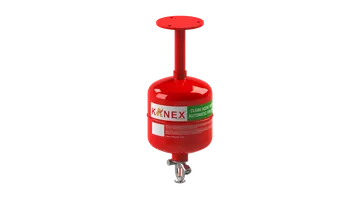

RQ series ceiling module filled with HFC 236fa clean agent gas for rooms where residue free suppression is required. Sizes 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg

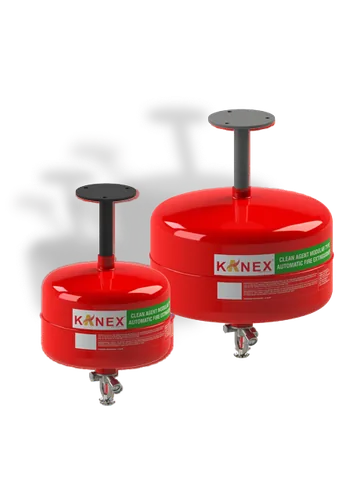

CE marked ceiling module using FK-5-1-12 fluoroketone, a clean agent with zero ozone depletion potential and low global warming potential that leaves no residue on sensitive equipment. Available in 2 kg, 5 kg and 10 kg.
Sizes: 2 kg, 5 kg, 10 kg

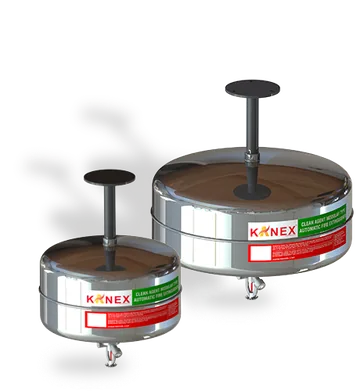

The same FK-5-1-12 fluoroketone ceiling module supplied with a stainless steel body for humid, clean or display sensitive locations. Sizes 2 kg, 5 kg and 10 kg.
Sizes: 5 kg, 10 kg
Ceiling mounted extinguisher in 5 and 10 kg that releases ABC powder on its own when its sprinkler bulb bursts at 68 °C. Meant for stores, server rooms and IT rooms with little foot traffic, covering about 3 m x 3 m.
Sizes: 5 kg, 6 kg, 10 kg, 12 kg
Ceiling mounted extinguisher filled with Grenoz 1230 (FK-5-1-12) clean agent in 5, 6, 10 and 12 kg, released automatically when its 68 °C bulb bursts. Intended for electrical panels, server rooms, computer rooms and other areas with electronic equipment.
Sizes: 5 kg | 10 kg

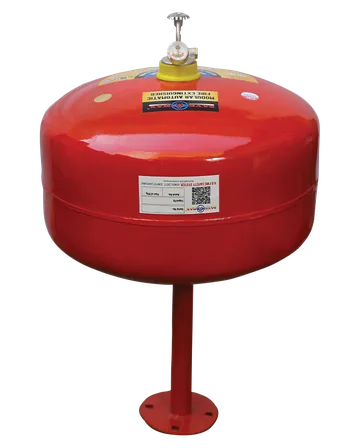

A self-activating extinguisher fixed to the ceiling that discharges on its own when the heat around it goes above a set threshold, with no one needed to operate it. It is offered in 5 Kg and 10 Kg with either ABC dry powder or clean agent.
Sizes: 5 kg, 10 kg
A ceiling mounted ABC powder extinguisher that discharges on its own when the temperature below reaches its set point, for rooms where a fire could start with nobody present. Offered in 5 kg and 10 kg, with a mild steel body, and listed by Balaji as ISI.
Choose the agent by what the room holds. ABC powder (MAP 50 or MAP 90) covers Class A, B and C fires in stores, factories, high stacks and engine compartments, but leaves powder to clean up. Clean agent units (FK-5-1-12 fluoroketone, FE-36, HFC 236fa or HFC 227ea) leave no residue, so they suit electrical panels, server rooms, computer rooms and other areas with electronic equipment.
Then choose ceiling or wall mounting. Ceiling modules hang above the risk and use no floor space: Kanex offers 2, 5, 10 and 15 kg (FK-5-1-12 in 2, 5 and 10 kg), Minimax ABC powder in 5 and 10 kg and Grenoz 1230 in 5, 6, 10 and 12 kg, Savemax 5 and 10 Kg with ABC powder or clean agent, Balaji Fire Safety ABC powder in 5 kg and 10 kg with a mild steel body, and Ceasefire 5 and 10 kg plus M Series units in 2, 5, 10 and 15 kg. Ceasefire wall mounted units (1 kg to 9 kg) sit on a bracket, with an optional flexible bracket to aim them at a panel, engine or machine.
Check how each unit triggers and what it covers. Ceasefire and Minimax units use a bulb that bursts at about 68 C, with other temperatures on request from Minimax, Balaji Fire Safety lists 68 C activation on its 5 kg unit, and Kanex lists sensing bulbs from 57 degrees C to 107 degrees C; Savemax units discharge once the heat passes a set threshold. Minimax lists a coverage of 3 m x 3 m per unit, Kanex a discharge of about 4 to 5 seconds, and Balaji Fire Safety a discharge of 6 to 8 sec on the 5 kg unit and 15 to 20 sec on the 10 kg unit; FPS works out the number of modules for your room.
If the module must report to a fire alarm panel or BMS, the Ceasefire M Series has a pressure port for a pressure switch and a Metron electrical actuation option that links units into a detector controlled total flooding system. The Ceasefire Launcher, a MAP 90 unit in 4, 6 and 9 kg, can be used by hand, thrown towards a large fire, or left to act on its own with two heat sensors and a 360 degree discharge.
