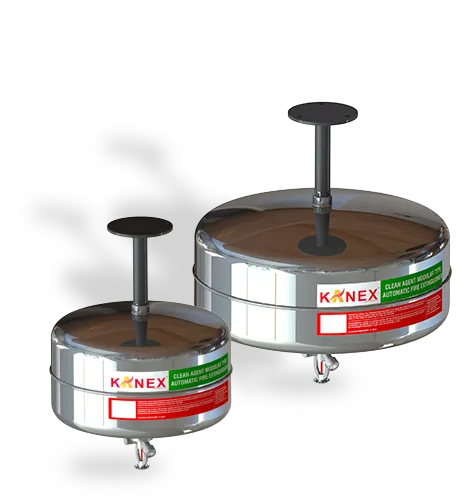

Authorised distributor for KanexThe same FK-5-1-12 fluoroketone ceiling module supplied with a stainless steel body for humid, clean or display sensitive locations. Sizes 2 kg, 5 kg and 10 kg.
Standards and approvals: CE
Sizes: 2 kg, 5 kg, 10 kg
| Size | Model | Discharge time | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|
| 2 kg | KMCSSRQ-2-FK | 4-5 Sec Approx | 15 / 35 bar | 3.56 kg | 370 mm Approx. |
| 5 kg | KMCSSRQ-5-FK | 6-8 Sec Approx | 15 / 35 bar | 7.64 kg | 380 mm Approx. |
| 10 kg | KMCSSRQ-10-FK | 10-15 Sec Approx | 15 / 35 bar | 14.11 kg | 405 mm Approx |
| Specification | 2 kg | 5 kg | 10 kg |
|---|---|---|---|
| Design | Ceiling Mounted | Ceiling Mounted | Ceiling Mounted |
| Diameter (Approx.) | 150±10 mm | 230±10 mm | 300±10 mm |
| Hanging Height Above Risk | 1.5 Mtr | 1.5 - 2 Mtr | 1.75 - 2.25 Mtr |
| Area Protection | 1-1.5 m² | 2 - 2.5 m² | 4 to 5 m² |
| Volume Protection | 2.5 m³ Approx | 6 m³ Approx | 10 m³ Approx. |
| Average % Discharge | 95% | 95% | 95% |
| Operating Temperature | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C |
| Expelling Agent | Nitrogen (UHP grade) | Nitrogen (UHP grade) | Nitrogen (UHP grade) |
| Empty Weight (Approx.) | 1.56 kg | 2.64 kg | 4.11 kg |
| Shipping Weight (Approx.) | 3.75 kg | 7.8 kg | 14.5 kg |
| Mounting Bracket | Ceiling Mounting Stand | Ceiling Mounting Stand | Ceiling Mounting Stand |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Ceiling mounted module filled with UL listed MAP 90 dry powder that detects and suppresses fire in one unit when the heat sensing bulb bursts. Supplied in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
The RQ series ceiling module using MAP 50 dry powder, the regular quality (RQ) version of the MAP 90 unit, with the same automatic bulb operation. Available in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Ceiling module charged with FE-36 clean agent gas that leaves no residue, suited to electrical and electronic risks. Offered in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
RQ series ceiling module filled with HFC 236fa clean agent gas for rooms where residue free suppression is required. Sizes 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg
CE marked ceiling module using FK-5-1-12 fluoroketone, a clean agent with zero ozone depletion potential and low global warming potential that leaves no residue on sensitive equipment. Available in 2 kg, 5 kg and 10 kg.
Wall mounted automatic extinguisher with ABC powder (MAP 50 and MAP 90) in 1, 2, 4, 6 and 9 kg, with a thermal actuator that discharges when the temperature rises. It suits compact spaces such as boats and engine compartments.
Wall mounted automatic extinguisher filled with Fluoroketone (FK-5-1-12) clean agent, in sizes from 1 kg to 9 kg including 1.5 kg and 2.5 kg. It works as a standalone modular suppression unit for small, high risk spaces.
Sizes: 5 kg, 10 kg
Ceiling mounted extinguisher in 5 and 10 kg that releases ABC powder on its own when its sprinkler bulb bursts at 68 °C. Meant for stores, server rooms and IT rooms with little foot traffic, covering about 3 m x 3 m.
Sizes: 5 kg, 6 kg, 10 kg, 12 kg
Ceiling mounted extinguisher filled with Grenoz 1230 (FK-5-1-12) clean agent in 5, 6, 10 and 12 kg, released automatically when its 68 °C bulb bursts. Intended for electrical panels, server rooms, computer rooms and other areas with electronic equipment.
Sizes: 5 kg | 10 kg
A self-activating extinguisher fixed to the ceiling that discharges on its own when the heat around it goes above a set threshold, with no one needed to operate it. It is offered in 5 Kg and 10 Kg with either ABC dry powder or clean agent.
Sizes: 5 kg, 10 kg
A ceiling mounted ABC powder extinguisher that discharges on its own when the temperature below reaches its set point, for rooms where a fire could start with nobody present. Offered in 5 kg and 10 kg, with a mild steel body, and listed by Balaji as ISI.
