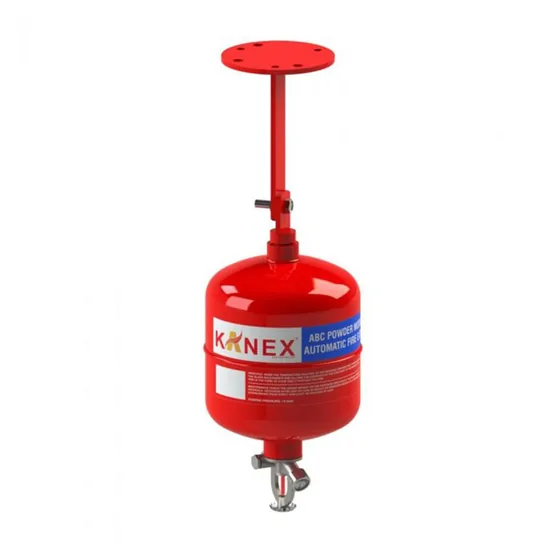

Authorised distributor for KanexThe RQ series ceiling module using MAP 50 dry powder, the regular quality (RQ) version of the MAP 90 unit, with the same automatic bulb operation. Available in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
| Size | Model | Discharge time | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|
| 2 kg | KMPRQ-2-50% | 4-5 Sec. | 15 / 35 bar | 3.6 kg | 380 mm |
| 5 kg | KMPRQ-5-50% | 6-8 Sec. | 15 / 35 bar | 7.6 kg | 3754 mm |
| 10 kg | KMPRQ-10-50% | 10-15 Sec. | 15 / 35 bar | 14.1 kg | 405 mm |
| 15 kg | KMPRQ-15-50% | 15-20 Sec. | 15 / 35 bar | 21.4kg | 425 mm |
| Specification | 2 kg | 5 kg | 10 kg | 15 kg |
|---|---|---|---|---|
| Design | Ceiling Mounted | Ceiling Mounted | Ceiling Mounted | Ceiling Mounted |
| Diameter (Approx.) | 150±10 mm | 230±10 mm | 300±10 mm | 400±10 mm |
| Average Discharge | 98% | 98% | 99% | 99% |
| Operating Temperature | -30 °C to +55 °C | -30 °C to +55 °C | -30 °C to +55 °C | -30 °C to +55 °C |
| Expelling Agent | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) |
| Empty Weight (Approx.) | 1.6 kg | 2.6 kg | 4.16 kg | 6.4 kg |
| Shipping Weight (Approx.) | 3.7 kg | 7.7 kg | 14.5 kg | 22 kg |
| Mounting Bracket | Ceiling mounting stand | Ceiling mounting stand | Ceiling mounting stand | Ceiling mounting stand |
| Approvals | Any Government approved Lab | Any Government approved Lab | Any Government approved Lab | Any Government approved Lab |
| Volume Protection | 2.5 m 3 | 2-2.5 m 3 | 10 m3 | 15 m 3 |
| Area Protection | 1-1.5 m 2 | 1.5-2 m2 | 4-5 m 2 | 5-6 m 2 |
| Hanging Height Above Risk | 2 m | 2 m | 2 m | 2.5 m |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Ceiling mounted module filled with UL listed MAP 90 dry powder that detects and suppresses fire in one unit when the heat sensing bulb bursts. Supplied in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Ceiling module charged with FE-36 clean agent gas that leaves no residue, suited to electrical and electronic risks. Offered in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
RQ series ceiling module filled with HFC 236fa clean agent gas for rooms where residue free suppression is required. Sizes 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg
CE marked ceiling module using FK-5-1-12 fluoroketone, a clean agent with zero ozone depletion potential and low global warming potential that leaves no residue on sensitive equipment. Available in 2 kg, 5 kg and 10 kg.
Sizes: 2 kg, 5 kg, 10 kg
The same FK-5-1-12 fluoroketone ceiling module supplied with a stainless steel body for humid, clean or display sensitive locations. Sizes 2 kg, 5 kg and 10 kg.
Wall mounted automatic extinguisher with ABC powder (MAP 50 and MAP 90) in 1, 2, 4, 6 and 9 kg, with a thermal actuator that discharges when the temperature rises. It suits compact spaces such as boats and engine compartments.
Wall mounted automatic extinguisher filled with Fluoroketone (FK-5-1-12) clean agent, in sizes from 1 kg to 9 kg including 1.5 kg and 2.5 kg. It works as a standalone modular suppression unit for small, high risk spaces.
Sizes: 5 kg, 10 kg
Ceiling mounted extinguisher in 5 and 10 kg that releases ABC powder on its own when its sprinkler bulb bursts at 68 °C. Meant for stores, server rooms and IT rooms with little foot traffic, covering about 3 m x 3 m.
Sizes: 5 kg, 6 kg, 10 kg, 12 kg
Ceiling mounted extinguisher filled with Grenoz 1230 (FK-5-1-12) clean agent in 5, 6, 10 and 12 kg, released automatically when its 68 °C bulb bursts. Intended for electrical panels, server rooms, computer rooms and other areas with electronic equipment.
Sizes: 5 kg | 10 kg
A self-activating extinguisher fixed to the ceiling that discharges on its own when the heat around it goes above a set threshold, with no one needed to operate it. It is offered in 5 Kg and 10 Kg with either ABC dry powder or clean agent.
Sizes: 5 kg, 10 kg
A ceiling mounted ABC powder extinguisher that discharges on its own when the temperature below reaches its set point, for rooms where a fire could start with nobody present. Offered in 5 kg and 10 kg, with a mild steel body, and listed by Balaji as ISI.
