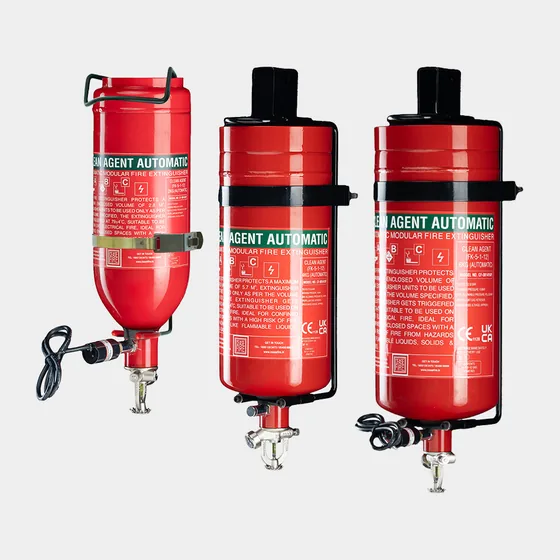

Authorised distributor for CeasefireWall mounted self contained unit with Fluoroketone (FK-5-1-12) clean agent in 1, 2, 4, 6 and 9 kg, triggered by a quartzoid bulb at 68 C, plus or minus 4 C. It leaves no residue and suits electronics and confined spaces.
Standards and approvals: PED, UKCA-PED
| Size | Pressure (service / max / test) |
|---|---|
| Automatic Fire Ext Wal L Mounted FK-5-1-12 1 kg MS SP Red | 10 Bar |
| Automatic Fire Ext Wal L Mounted FK-5-1-12 2 kg MS SP Red | 10 Bar |
| Automatic Fire Ext Wal L Mounted FK-5-1-12 4 kg MS SP Red | 10 Bar |
| Automatic Fire Ext Wal L Mounted FK-5-1-12 6 kg MS SP Red | 10 Bar |
| Automatic Fire Ext Wal L Mounted FK-5-1-12 9 kg MS SP Red | 10 Bar |
| Specification | Automatic Fire Ext Wal L Mounted FK-5-1-12 1 kg MS SP Red | Automatic Fire Ext Wal L Mounted FK-5-1-12 2 kg MS SP Red | Automatic Fire Ext Wal L Mounted FK-5-1-12 4 kg MS SP Red | Automatic Fire Ext Wal L Mounted FK-5-1-12 6 kg MS SP Red | Automatic Fire Ext Wal L Mounted FK-5-1-12 9 kg MS SP Red |
|---|---|---|---|---|---|
| Stored Pressure / Cartridge | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure |
| Agent | FK-5-1-12 | FK-5-1-12 | FK-5-1-12 | FK-5-1-12 | FK-5-1-12 |
| Product Code | CF-001411 | CF-001413 | CF-001415 | CF-001416 | CF-001417 |
| Certification Standards | PED | PED | PED | PED | PED |
| CE Marked | Yes | Yes | Yes | Yes | Yes |
| Gross Weight (approx.) | 1.85 Kg | 3.35 Kg | 6.05 Kg | 8.75 Kg | 12.95 Kg |
| Net Contents (approx.) | 1 Kg | 2 Kg | 4 Kg | 6 Kg | 9 Kg |
| Approx. Height Of Fire Ext. | 370 mm | 442 mm | 493 mm | 538 mm | 668 mm |
| Type of Operating Mechanism | Automatic Thermal Quarzoid Bulb / Elect(metron) | Automatic Thermal Quarzoid Bulb / Elect(metron) | Automatic Thermal Quarzoid Bulb / Elect(metron) | Automatic Thermal Quarzoid Bulb / Elect(metron) | Automatic Thermal Quarzoid Bulb / Elect(metron) |
| Min. Discharge Time | 0.5 sec | 1 sec | 2 sec | 3 sec | 4 sec |
| Min Single Volume Coverage | 0.79 m3 | 1.58 m3 | 3.16 m3 | 4.74 m3 | 7.11 m3 |
| Max Single Volume Coverage | 1.4 m3 | 2.8 m3 | 5.7 m3 | 8.5 m3 | 12.8 m3 |
| Concentration At Max Volume | 4.5 v/kg % | 4.5 v/kg % | 4.5 v/kg % | 4.5 v/kg % | 4.5 v/kg % |
| Actuation Temperature | 68° C +- 4° C | 68° C +- 4° C | 68° C +- 4° C | 68° C +- 4° C | 68° C +- 4° C |
| Type of Discharge Fitting | Sprinkler With Quartzoid Bulbhead | Sprinkler With Quartzoid Bulbhead | Sprinkler With Quartzoid Bulbhead | Sprinkler With Quartzoid Bulbhead | Sprinkler With Quartzoid Bulbhead |
| Warranty In Years | 10 | 10 | 10 | 10 | 10 |
| Dia. Of Shell (OD) | 86 mm | 108 mm | 140 mm | 160 mm | 175 mm |
| Operating Temperature | -30° C to 60° C | -30° C to 60° C | -30° C to 60° C | -30° C to 60° C | -30° C to 60° C |
| Hydrostatic Test Pressure | 30 Bar | 30 Bar | 30 Bar | 30 Bar | 30 Bar |
| Body Thickness | 1.4 mm | 1.4 mm | 1.2 mm | 1.4 mm | 1.4 mm |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Wall mounted automatic extinguisher with ABC powder (MAP 50 and MAP 90) in 1, 2, 4, 6 and 9 kg, with a thermal actuator that discharges when the temperature rises. It suits compact spaces such as boats and engine compartments.
Wall mounted automatic extinguisher filled with Fluoroketone (FK-5-1-12) clean agent, in sizes from 1 kg to 9 kg including 1.5 kg and 2.5 kg. It works as a standalone modular suppression unit for small, high risk spaces.
Sizes: 5 kg, 10 kg
Ceiling mounted automatic extinguisher with clean agent (Fluoroketone or HFC 227ea) in 5 kg and 10 kg, which senses heat and discharges without anyone present. It needs no piping or ducting and leaves no residue.
Sizes: 5 kg, 10 kg
Ceiling mounted automatic extinguisher with MAP 90 ABC powder in 5 kg and 10 kg, for stores, factories and high stacks that hand held units cannot reach. It installs without piping or ducting and activates on its own when it senses heat.
Self contained ceiling unit with MAP 90 ABC powder in 2, 5, 10 and 15 kg, triggered by a quartzoid bulb sprinkler head at about 68 C. It can be made monitorable with a pressure switch or linked with Metron actuators into a total flooding system.
Self contained ceiling unit with Fluoroketone (FK-5-1-12) clean agent in 2, 5, 10 and 15 kg, triggered by a quartzoid bulb at about 68 C. It leaves no residue, and Ceasefire states it is safe in confined spaces with people present.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Ceiling mounted module filled with UL listed MAP 90 dry powder that detects and suppresses fire in one unit when the heat sensing bulb bursts. Supplied in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
The RQ series ceiling module using MAP 50 dry powder, the regular quality (RQ) version of the MAP 90 unit, with the same automatic bulb operation. Available in 2 kg, 5 kg, 10 kg and 15 kg.
Sizes: 5 kg, 10 kg
Ceiling mounted extinguisher in 5 and 10 kg that releases ABC powder on its own when its sprinkler bulb bursts at 68 °C. Meant for stores, server rooms and IT rooms with little foot traffic, covering about 3 m x 3 m.
Sizes: 5 kg, 6 kg, 10 kg, 12 kg
Ceiling mounted extinguisher filled with Grenoz 1230 (FK-5-1-12) clean agent in 5, 6, 10 and 12 kg, released automatically when its 68 °C bulb bursts. Intended for electrical panels, server rooms, computer rooms and other areas with electronic equipment.
Sizes: 5 kg | 10 kg
A self-activating extinguisher fixed to the ceiling that discharges on its own when the heat around it goes above a set threshold, with no one needed to operate it. It is offered in 5 Kg and 10 Kg with either ABC dry powder or clean agent.
Sizes: 5 kg, 10 kg
A ceiling mounted ABC powder extinguisher that discharges on its own when the temperature below reaches its set point, for rooms where a fire could start with nobody present. Offered in 5 kg and 10 kg, with a mild steel body, and listed by Balaji as ISI.
