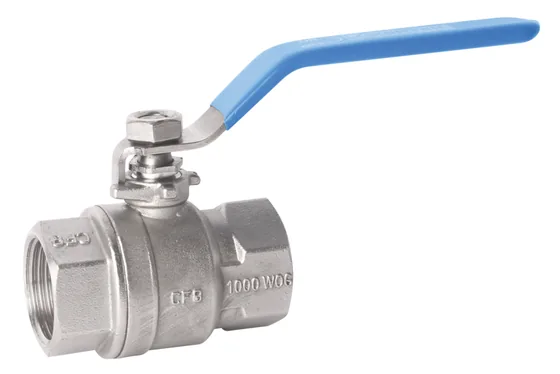

Authorised distributor for Kartar ValvesAn investment cast stainless steel ball valve with screwed ends, SS ball, stem and handle and Teflon seals. K804 is rated WOG 1000 in 15 mm to 50 mm; K804.E is rated PN 40 in 15 mm to 25 mm, with larger sizes in development.
| Specification | K804 | K804.E |
|---|---|---|
| Item | Kartar Stainless Steal (Investment casted ) Ball Valve | Kartar Stainless Steal (Investment casted ) Ball Valve |
| Pressure rating | WOG 1000 | PN 40 |
| Ends | Screwed | Screwed |
| Ball & stem | SS | SS |
| Seals | Teflon | Teflon |
| Handle | SS | SS |
| Sizes (MM) | 15, 20, 25, 32, 40, 50 | 15, 20, 25 |
| Note | 32, 40, 50: IN DEVELOPMENT |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
Sizes: 15 mm to 100 mm
Cast iron ball valve with flanged ends in a 3 piece design, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
Sizes: 15 mm to 100 mm
Cast iron ball valve with screwed ends, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm, in full bore or reduced bore. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
A red cast iron screwed ball valve for fire lines, with Teflon seals, stainless steel ball and stem and an MS lever with PVC coating, ISI marked to IS 9890. Sizes 15 mm to 100 mm, higher on request.
A full bore forged brass ball valve with brass ball and stem, Teflon seals, screwed ends and a chrome plated finish, PN 40, in 10 mm to 100 mm.
The Eco version of Kartar's forged brass ball valve, rated PN 40, in 10, 15, 20 and 25 mm.
A gunmetal ball valve with screwed ends, full bore, brass ball and stem and a natural bronze finish, PN1.6, in 15 mm to 50 mm.
Sizes: 15 mm to 100 mm
Three piece, lever operated ball valve in stainless steel AISI-304 (CF-8) with drilled Class-150 flanges. Sizes 15 mm to 100 mm.
Sizes: 15 mm to 50 mm
Two piece, lever operated full bore ball valve with a CF 8 M body, SS 316 ball and stem, and female BSP taper threads. Sizes 15 mm to 50 mm.
Sizes: 15 mm to 100 mm
Two piece, full bore bronze ball valve with a stainless steel ball, opened and closed by a quarter turn of the lever. Female threaded ends, 15 mm to 100 mm, listed for plumbing and fire fighting.
Sizes: 15 mm to 50 mm
Zoloto's E-Model bronze ball valve: full bore and two piece, with a stainless steel ball and quarter turn lever, in sizes 15 mm to 50 mm for plumbing and fire fighting lines.
