Sant Valves

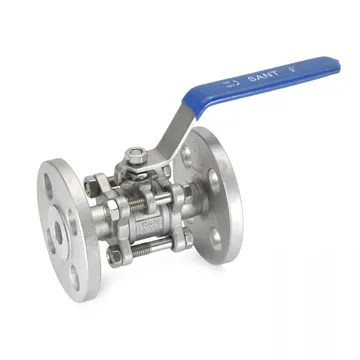

Sant Valves SSBVF Stainless Steel Ball Valve, 3 Piece, Class-150 Flanged
Sizes: 15 mm to 100 mm
Three piece, lever operated ball valve in stainless steel AISI-304 (CF-8) with drilled Class-150 flanges. Sizes 15 mm to 100 mm.
Ball Valves in Bhopal
Ball valves open or shut a line with a quarter turn of a drilled ball, which makes them quick to operate on small bore water lines such as drain, test and gauge connections in pump rooms and sprinkler installations. Fire Protection System supplies brass, bronze, gunmetal, cast iron, stainless steel and cast steel ball valves from Sant Valves, Kartar Valves and Zoloto in Bhopal and across Madhya Pradesh.
Sant Valves

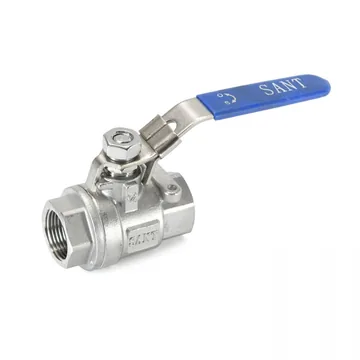

Sant Valves SSBVS Stainless Steel Ball Valve, SS 316, Full Bore, Screwed
Sizes: 15 mm to 50 mm
Two piece, lever operated full bore ball valve with a CF 8 M body, SS 316 ball and stem, and female BSP taper threads. Sizes 15 mm to 50 mm.
Sant Valves

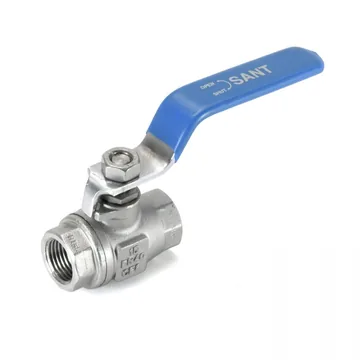

Sant Valves IC-1 Investment Cast Stainless Steel Ball Valve, PN-40
Sizes: 15 mm to 50 mm
Two piece investment cast ball valve in SS 304 (CF-8), rated PN-40, with female BSP taper threads to BS 21. Sizes 15 mm to 50 mm.
Sant Valves

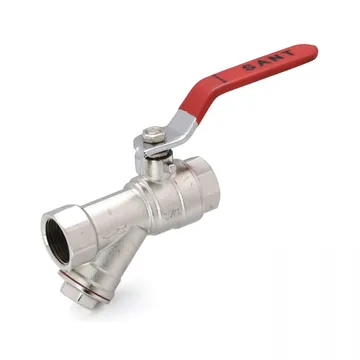

Sant Valves FBV4 Forged Brass Ball Valve with Built In Strainer, PN-25
Sizes: 15 mm to 40 mm
Two piece forged brass ball valve with an inbuilt Y strainer, so one fitting isolates the line and catches debris. PN-25, 15 mm to 40 mm.
Sant Valves

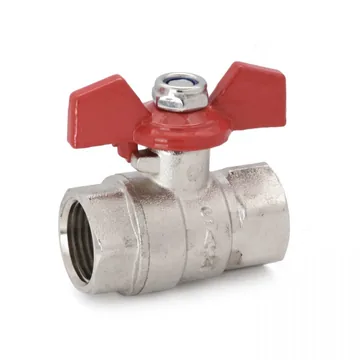

Sant Valves FBV3 Forged Brass Ball Valve, T Handle, Full Bore, PN-25
Sizes: 15 mm, 20 mm, 25 mm
Two piece forged brass full bore ball valve operated by a T handle, rated PN-25. Screwed BSP ends, 15 mm to 25 mm.
Sant Valves

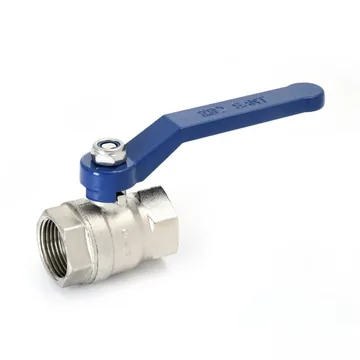

Sant Valves FBV2 Forged Brass Ball Valve, Lever, Full Bore, PN-25
Sizes: 8 mm to 100 mm
Two piece, lever operated forged brass ball valve with full bore and nickel plated brass ball, rated PN-25. Screwed BSP ends, 8 mm to 100 mm.
Sant Valves

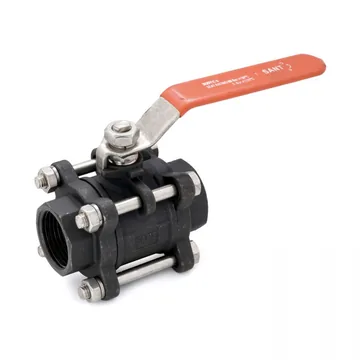

Sant Valves WCB Cast Steel Ball Valve, 3 Piece, Screwed
Sizes: 15 mm to 50 mm
Three piece, lever operated ball valve in cast carbon steel (ASTM A 216 Gr. WCB), rated 69 barg at 30°C and 5 bar at 225°C. Screwed BSP taper ends, 15 mm to 50 mm.
Sant Valves

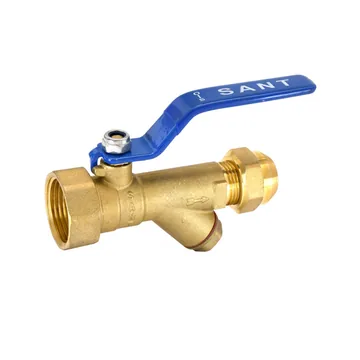

Sant Valves BBVSF Brass Ball Valve with Strainer and Flare Nut
Sizes: 20 mm, 25 mm
Two piece, lever operated brass ball valve with a built in strainer and a swivel flare nut on one end. Sizes 20 mm and 25 mm.
Sant Valves

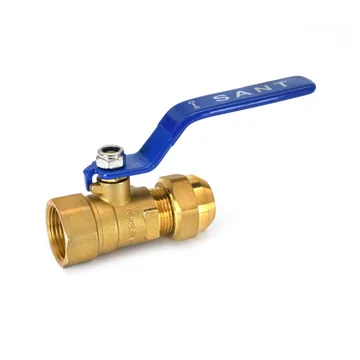

Sant Valves BBVF Brass Ball Valve with Flare Nut
Sizes: 20 mm, 25 mm
Two piece, lever operated brass ball valve with a swivel flare nut on one end and a female BSP thread on the other. Sizes 20 mm and 25 mm.
Sant Valves

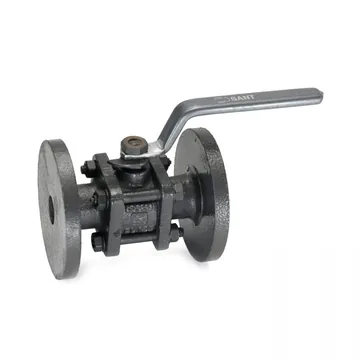

Sant Valves CI-18 Cast Iron Ball Valve, IS 9890, Flanged
Sizes: 15 mm to 100 mm
ISI marked three piece cast iron ball valve to IS 9890 Class 125, with stainless steel ball and stem and flanged ends. Sizes 15 mm to 100 mm, for water, oil and gas.
Sant Valves

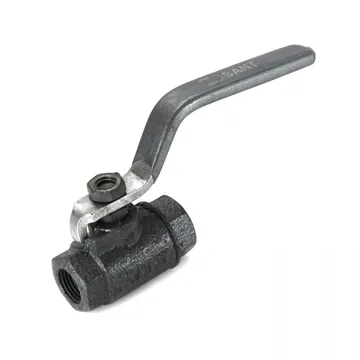

Sant Valves CI-17 Cast Iron Ball Valve, IS 9890, Screwed
Sizes: 15 mm to 100 mm
ISI marked two piece cast iron ball valve to IS 9890 Class 125, straight pattern with screwed ends. Sizes 15 mm to 100 mm, for water, oil and gas.
Sant Valves

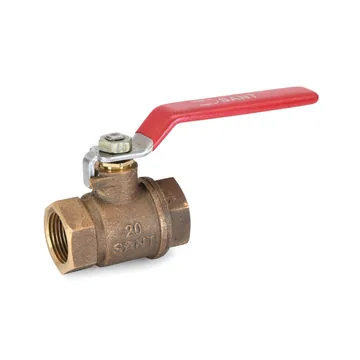

Sant Valves IS-20 Bronze Ball Valve, Lever Operated, Screwed
Sizes: 8 mm to 100 mm
Two piece, lever operated gun metal ball valve with stainless steel ball and stem and standard bore. Screwed ends, 8 mm to 100 mm, for water and oil.
Kartar Valves
Kartar Valves Cast Iron Ball Valve, 3 Piece Flanged, PN 16 (K802)
Sizes: 15 mm to 100 mm
Cast iron ball valve with flanged ends in a 3 piece design, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
Kartar Valves
Kartar Valves Cast Iron Ball Valve, Screwed, PN 16 (K801)
Sizes: 15 mm to 100 mm
Cast iron ball valve with screwed ends, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm, in full bore or reduced bore. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
Kartar Valves

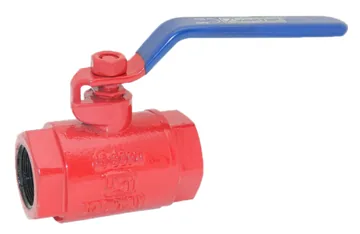

Kartar Valves Red Cast Iron Ball Valve, Screwed, ISI Marked (K-938)
A red cast iron screwed ball valve for fire lines, with Teflon seals, stainless steel ball and stem and an MS lever with PVC coating, ISI marked to IS 9890. Sizes 15 mm to 100 mm, higher on request.
Kartar Valves

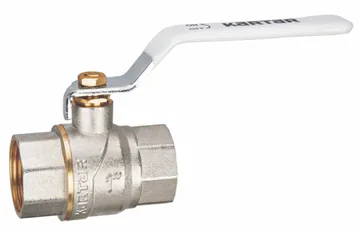

Kartar Valves Forged Brass Ball Valve, Full Bore, Chrome Plated, PN 40 (K916, K611)
A full bore forged brass ball valve with brass ball and stem, Teflon seals, screwed ends and a chrome plated finish, PN 40, in 10 mm to 100 mm.
Kartar Valves

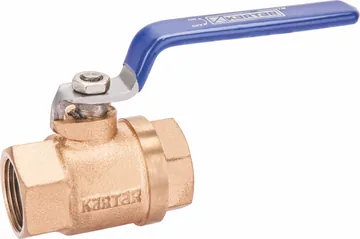

Kartar Valves Gunmetal Ball Valve, Full Bore, PN1.6 (K609)
A gunmetal ball valve with screwed ends, full bore, brass ball and stem and a natural bronze finish, PN1.6, in 15 mm to 50 mm.
Kartar Valves

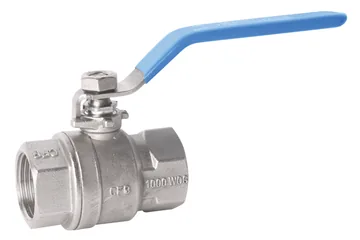

Kartar Valves Stainless Steel Ball Valve, Investment Cast (K804, K804.E)
An investment cast stainless steel ball valve with screwed ends, SS ball, stem and handle and Teflon seals. K804 is rated WOG 1000 in 15 mm to 50 mm; K804.E is rated PN 40 in 15 mm to 25 mm, with larger sizes in development.
Zoloto

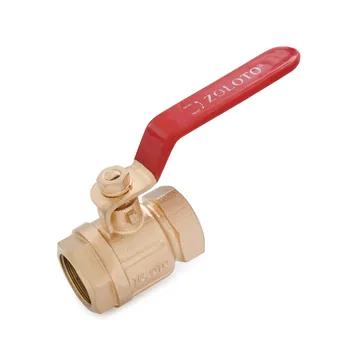

Zoloto Bronze Ball Valve, Full Bore, Screwed (1008)
Sizes: 15 mm to 100 mm
Two piece, full bore bronze ball valve with a stainless steel ball, opened and closed by a quarter turn of the lever. Female threaded ends, 15 mm to 100 mm, listed for plumbing and fire fighting.
Zoloto

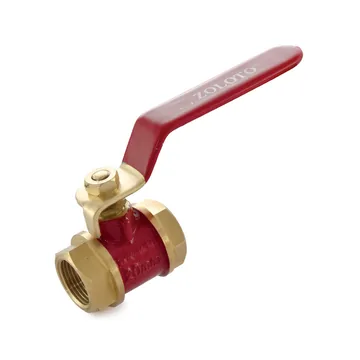

Zoloto Bronze Ball Valve E-Model, Full Bore, Screwed (1008A)
Sizes: 15 mm to 50 mm
Zoloto's E-Model bronze ball valve: full bore and two piece, with a stainless steel ball and quarter turn lever, in sizes 15 mm to 50 mm for plumbing and fire fighting lines.
Zoloto

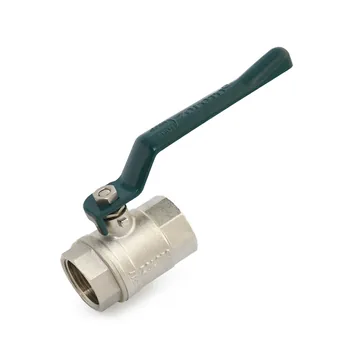

Zoloto Forged Brass Ball Valve, Chrome Finish, Screwed (1008B)
Sizes: 8 mm to 100 mm
Chrome finished forged brass ball valve with a hard chrome plated brass ball, full bore and two piece, from 8 mm to 100 mm. Listed for plumbing, fire fighting and HVAC lines.
Zoloto

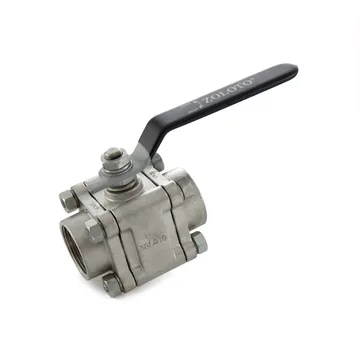

Zoloto SS 316 (CF8M) Three Piece Ball Valve, Class 150, Screwed (1080A)
Sizes: 15 mm to 50 mm
Three piece ball valve in CF8M (SS 316) stainless steel, designed to BS EN ISO 17292 (BS 5351), with reduced bore and threaded or socket weld ends. Class 150, 15 mm to 50 mm.
Zoloto

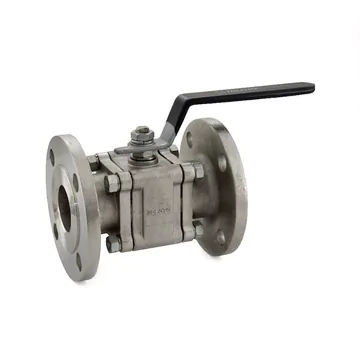

Zoloto SS 316 (CF8M) Three Piece Ball Valve, Class 150, Flanged (1080B)
Sizes: 15 mm to 100 mm
Flanged version of Zoloto's CF8M (SS 316) three piece ball valve, with flanges drilled to ASME B16.5 Class 150, in sizes 15 mm to 100 mm.
Zoloto

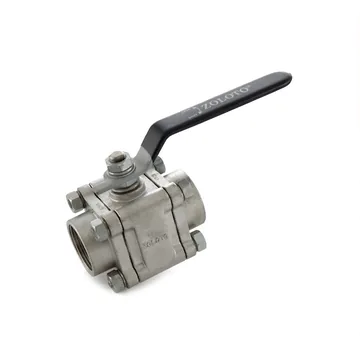

Zoloto SS 304 (CF8) Three Piece Ball Valve, Class 150, Screwed (1081)
Sizes: 15 mm to 50 mm
Three piece ball valve in CF8 (SS 304) stainless steel, designed to BS EN ISO 17292 (BS 5351), with reduced bore and threaded or socket weld ends. Class 150, 15 mm to 50 mm.
Zoloto

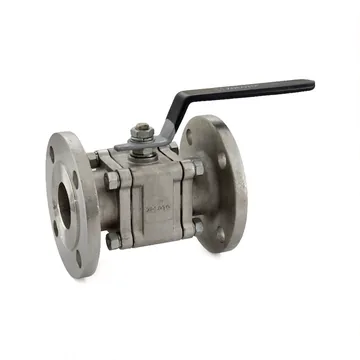

Zoloto SS 304 (CF8) Three Piece Ball Valve, Class 150, Flanged (1081A)
Sizes: 15 mm to 100 mm
Flanged version of Zoloto's CF8 (SS 304) three piece ball valve, with flanges drilled to ASME B16.5 Class 150, in sizes 15 mm to 100 mm.
Zoloto

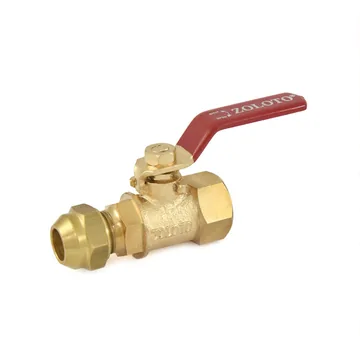

Zoloto Bronze Ball Valve with Flare Nut, Mixed Ends (1085B)
Sizes: 15 mm, 20 mm, 25 mm
Two piece bronze ball valve with a BSP female inlet and a 5/8 inch BSP male outlet carrying a flare nut, made for refrigeration and HVAC connections. Sizes 15 mm to 25 mm.
Kartar Valves
Kartar Valves Forged Brass Ball Valve Eco, PN 40 (K611E)
The Eco version of Kartar's forged brass ball valve, rated PN 40, in 10, 15, 20 and 25 mm.
- Item: Kartar Forged Brass Ball Valve Eco
- Pressure rating: PN 40
- Sizes (MM): 10, 15, 20, 25
Kartar Valves

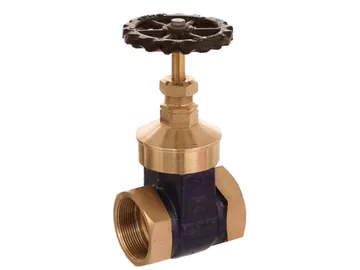

Kartar Valves GM Gate Ball Valve (Gunmetal)
A gunmetal valve that Kartar lists under the name GM Gate Ball Valve, with a photo only. We confirm its design, sizes and rating with the maker before quoting.
Kartar Valves

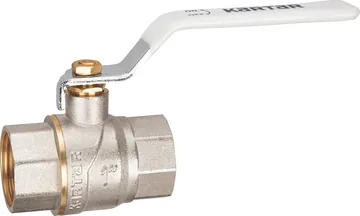

Kartar Valves CP Ball Valve
A ball valve that Kartar lists as the CP ball valve, with a name and photo only. We confirm its material, finish and sizes with the maker before quoting.
How to choose
Start with the body material. Forged brass, bronze and gunmetal valves suit small bore water lines: Kartar Valves offers forged brass (K916, K611, K611E) and gunmetal (K609) valves, Sant Valves forged brass FBV valves and the gun metal IS-20 for water and oil, and Zoloto bronze (1008, 1008A) and chrome finished forged brass (1008B) valves listed for plumbing and fire fighting. Cast iron valves follow IS 9890: the Sant Valves CI-17 and CI-18 are ISI marked to IS 9890 Class 125 and listed for water, oil and gas, the red Kartar Valves K-938 for fire lines is ISI marked to IS 9890, and the Kartar Valves K801 and K802 are made to IS 9890 in PN 16. Stainless steel valves in CF8 (SS 304) or CF8M (SS 316) from all three makers are chosen where corrosion resistance matters, and the Sant Valves WCB cast steel valve is rated 69 barg at 30°C and 5 bar at 225°C.
Next check size and pressure, choosing a rating that covers the highest pressure in that line. Sizes run from 8 mm (Sant Valves FBV2 and IS-20, Zoloto 1008B) or 10 mm (Kartar Valves forged brass) up to 100 mm. Kartar Valves rates its forged brass valves PN 40 and the gunmetal K609 PN1.6, rates the stainless steel K804 WOG 1000 and the K804.E PN 40, and states its cast iron K801 and K802 can be installed at up to 35 bar. Sant Valves rates its forged brass FBV valves PN-25 and the stainless steel IC-1 PN-40, and the Zoloto stainless steel valves are Class 150, designed to BS EN ISO 17292.
Then match the ends and bore. Screwed valves come with threads to IS 554, BS 21 or ISO 7 or BSP taper, with NPT on request from Kartar Valves, and the Zoloto 1080A and 1081 can also have socket weld ends. Flanged options include the Kartar Valves K802 with flange dimensions to ANSI B16.1, the Sant Valves CI-18 (IS 3516 or B.S.10 Table F) and SSBVF (Class-150), and the Zoloto 1080B and 1081A drilled to ASME B16.5 Class 150. Full bore valves, such as the Kartar Valves K916 and K609, the Sant Valves FBV2, FBV3 and SSBVS and the Zoloto 1008, 1008A and 1008B, keep the full pipe opening, while reduced bore valves such as the Zoloto 1080A and 1081 have a smaller port. Three piece bodies, such as the Kartar Valves K802, the Sant Valves SSBVF and WCB and the Zoloto stainless steel valves, let the centre section be taken out for service.
For special duties, Sant Valves offers the FBV4 forged brass valve and the BBVSF brass valve with a built in strainer, so one fitting isolates the line and catches debris, and the FBV3 with a T handle. Sant Valves (BBVF, BBVSF) and Zoloto (1085B) also offer ball valves with a flare nut on one end, which Zoloto lists for refrigeration and HVAC connections. FPS supplies, installs and maintains ball valves on fire and water lines across Madhya Pradesh.
Frequently asked questions
Where are ball valves used in a fire protection system?
Ball valves are mostly used on small bore water lines, such as drain and test points, gauge connections and pump room auxiliaries, where a quick quarter turn to open or shut is useful. Larger mains are usually isolated with gate, sluice or butterfly valves.
Should I choose a full bore or reduced bore ball valve?
A full bore valve has a port the same size as the pipe, so it keeps the full opening when open; the Sant Valves FBV2 and SSBVS, the Zoloto 1008 series and the Kartar Valves K916 and K609 are full bore. Reduced bore valves have a smaller port, as on the Zoloto 1080A and 1081, and Kartar Valves offers its K801 in both full and reduced bore.
What does IS 9890 mean on a ball valve?
It is the Indian standard that the cast iron ball valves in this range are made to. The Sant Valves CI-17 and CI-18 are made to IS 9890 Class 125 and ISI marked, the red Kartar Valves K-938 is ISI marked to IS 9890, and the Kartar Valves K801 and K802 are made to IS 9890 in PN 16.
Which ball valve material should I choose?
Brass, bronze and gunmetal valves from all three makers suit small bore water lines, cast iron valves to IS 9890 suit larger screwed or flanged lines, and stainless steel valves in SS 304 or SS 316 are chosen where corrosion resistance matters. FPS can advise on the right material for your line.
Is there a ball valve with a built in strainer?
Yes. The Sant Valves FBV4 forged brass ball valve, rated PN-25 from 15 mm to 40 mm, and the BBVSF brass ball valve have a built in strainer, so one fitting isolates the line and catches debris.
Does FPS supply ball valves, and how do I get a price?
FPS is an authorised distributor of Sant Valves and Kartar Valves and a dealer for Zoloto, and it supplies, installs and maintains ball valves in Bhopal and across MP. Prices depend on material, size and quantity and are shared on request: call or WhatsApp +91 92440 89060.
