Sant Valves SSBVS Stainless Steel Ball Valve, SS 316, Full Bore, Screwed
Sizes: 15 mm to 50 mm
Two piece, lever operated full bore ball valve with a CF 8 M body, SS 316 ball and stem, and female BSP taper threads. Sizes 15 mm to 50 mm.

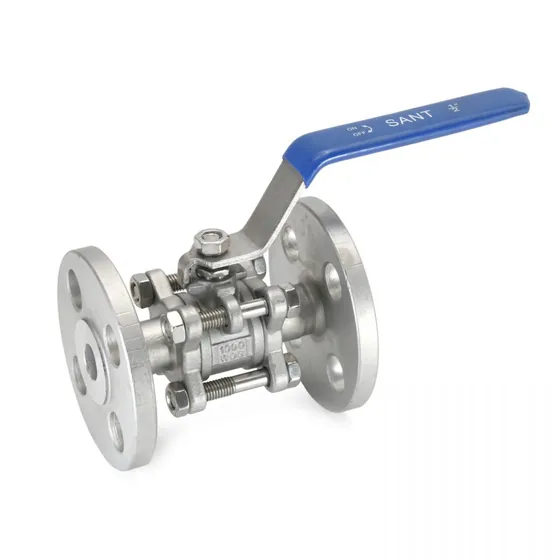

Authorised distributor for Sant ValvesSant Valves SSBVF Stainless Steel Ball Valve, 3 Piece, Class-150 Flanged
Three piece, lever operated ball valve in stainless steel AISI-304 (CF-8) with drilled Class-150 flanges. Sizes 15 mm to 100 mm.
- Body and ball in stainless steel AISI-304 (CF-8), AISI-410 stem
- Renewable PTFE seat rings and gland packing
- Flanges to B 16.5 Class-150, drilled
- Body test 30 barg (435 psig), seat test 22 barg (320 psig)
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 1/2 | 3/4 | 1 |
| LL | 137 | 140 | 160 | 160 | 195 | 200 | 230 | 250 | 270 |
| F±2 | 108±2 | 117±2 | 127±2 | 140±2 | 165±2 | 178±2 | 190±2 | 203±2 | 229±2 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
