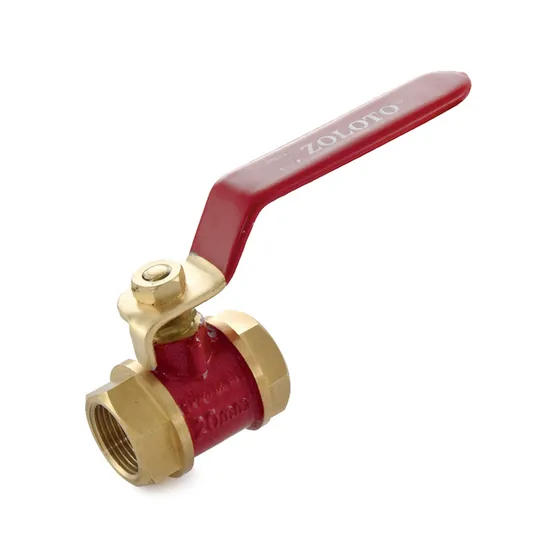

Dealer for ZolotoZoloto's E-Model bronze ball valve: full bore and two piece, with a stainless steel ball and quarter turn lever, in sizes 15 mm to 50 mm for plumbing and fire fighting lines.
Sizes: 15 mm to 50 mm
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1008A |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 53 | 58 | 68 | 76 | 85 | 102 | |
| B | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | |
| C ~ | 40 | 44 | 50 | 65 | 72 | 79 | |
| D ~ | 106 | 123 | 123 | 147 | 178 | 217 | |
| Shell | 20 kg/cm²g (285 psig) | ||||||
| Seat | 13.5 kg/cm²g (192 psig) | ||||||
| Maximum Working Temperature | 220°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
Sizes: 15 mm to 100 mm
Two piece, full bore bronze ball valve with a stainless steel ball, opened and closed by a quarter turn of the lever. Female threaded ends, 15 mm to 100 mm, listed for plumbing and fire fighting.
Sizes: 8 mm to 100 mm
Chrome finished forged brass ball valve with a hard chrome plated brass ball, full bore and two piece, from 8 mm to 100 mm. Listed for plumbing, fire fighting and HVAC lines.
Sizes: 15 mm to 50 mm
Three piece ball valve in CF8M (SS 316) stainless steel, designed to BS EN ISO 17292 (BS 5351), with reduced bore and threaded or socket weld ends. Class 150, 15 mm to 50 mm.
Sizes: 15 mm to 100 mm
Flanged version of Zoloto's CF8M (SS 316) three piece ball valve, with flanges drilled to ASME B16.5 Class 150, in sizes 15 mm to 100 mm.
Sizes: 15 mm to 50 mm
Three piece ball valve in CF8 (SS 304) stainless steel, designed to BS EN ISO 17292 (BS 5351), with reduced bore and threaded or socket weld ends. Class 150, 15 mm to 50 mm.
Sizes: 15 mm to 100 mm
Flanged version of Zoloto's CF8 (SS 304) three piece ball valve, with flanges drilled to ASME B16.5 Class 150, in sizes 15 mm to 100 mm.
Sizes: 15 mm to 100 mm
Three piece, lever operated ball valve in stainless steel AISI-304 (CF-8) with drilled Class-150 flanges. Sizes 15 mm to 100 mm.
Sizes: 15 mm to 50 mm
Two piece, lever operated full bore ball valve with a CF 8 M body, SS 316 ball and stem, and female BSP taper threads. Sizes 15 mm to 50 mm.
Sizes: 15 mm to 100 mm
Cast iron ball valve with flanged ends in a 3 piece design, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
Sizes: 15 mm to 100 mm
Cast iron ball valve with screwed ends, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm, in full bore or reduced bore. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
