Sant Valves SSBVF Stainless Steel Ball Valve, 3 Piece, Class-150 Flanged
Sizes: 15 mm to 100 mm
Three piece, lever operated ball valve in stainless steel AISI-304 (CF-8) with drilled Class-150 flanges. Sizes 15 mm to 100 mm.

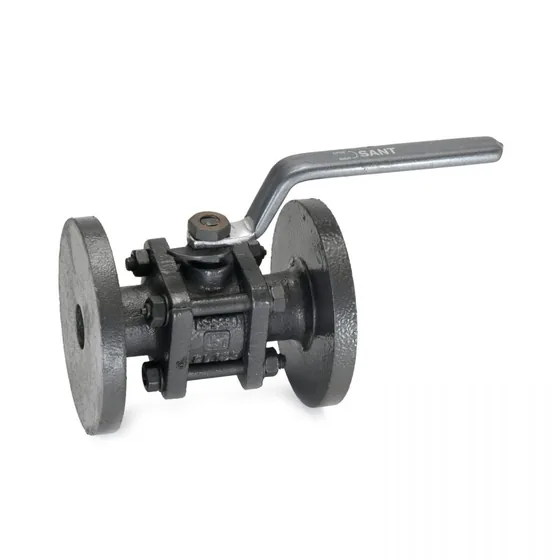

Authorised distributor for Sant ValvesSant Valves CI-18 Cast Iron Ball Valve, IS 9890, Flanged
ISI marked three piece cast iron ball valve to IS 9890 Class 125, with stainless steel ball and stem and flanged ends. Sizes 15 mm to 100 mm, for water, oil and gas.
- IS 9890 Class 125, ISI marked
- Cast iron body to IS:210 Gr.FG220, SS AISI-410 stem, SS AISI-304 ball
- Renewable Teflon seat, Teflon gland rings
- Flanges to IS:3516-1966 undrilled or B.S.10 Table F
- Body test 300 psig; seat test 220 psig hydraulic and 100 psig air
Standards and approvals: IS:9890 Class 125, ISI Marked
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| F | 130±2 | 130±2 | 140±2 | 165±2 | 165±2 | 203±2 | 222±2 | 241±2 | 305±2 |
| LL (Approx.) | 135 | 160 | 170 | 205 | 205 | 205 | 250 | 380 | 380 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
More Sant Valves Ball Valves
Sant Valves SSBVS Stainless Steel Ball Valve, SS 316, Full Bore, Screwed
Sizes: 15 mm to 50 mm
Two piece, lever operated full bore ball valve with a CF 8 M body, SS 316 ball and stem, and female BSP taper threads. Sizes 15 mm to 50 mm.
Sant Valves IC-1 Investment Cast Stainless Steel Ball Valve, PN-40
Sizes: 15 mm to 50 mm
Two piece investment cast ball valve in SS 304 (CF-8), rated PN-40, with female BSP taper threads to BS 21. Sizes 15 mm to 50 mm.
Sant Valves FBV4 Forged Brass Ball Valve with Built In Strainer, PN-25
Sizes: 15 mm to 40 mm
Two piece forged brass ball valve with an inbuilt Y strainer, so one fitting isolates the line and catches debris. PN-25, 15 mm to 40 mm.
Sant Valves FBV3 Forged Brass Ball Valve, T Handle, Full Bore, PN-25
Sizes: 15 mm, 20 mm, 25 mm
Two piece forged brass full bore ball valve operated by a T handle, rated PN-25. Screwed BSP ends, 15 mm to 25 mm.
Sant Valves FBV2 Forged Brass Ball Valve, Lever, Full Bore, PN-25
Sizes: 8 mm to 100 mm
Two piece, lever operated forged brass ball valve with full bore and nickel plated brass ball, rated PN-25. Screwed BSP ends, 8 mm to 100 mm.
Ball Valves from other brands
Kartar Valves
Kartar Valves Cast Iron Ball Valve, 3 Piece Flanged, PN 16 (K802)
Sizes: 15 mm to 100 mm
Cast iron ball valve with flanged ends in a 3 piece design, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
Kartar Valves
Kartar Valves Cast Iron Ball Valve, Screwed, PN 16 (K801)
Sizes: 15 mm to 100 mm
Cast iron ball valve with screwed ends, SS ball and stem and Teflon seals, made to IS 9890 in PN 16, from 15 mm to 100 mm, in full bore or reduced bore. Kartar's website states it can be installed at up to 200 degrees centigrade and 35 bar.
Zoloto
Zoloto Bronze Ball Valve, Full Bore, Screwed (1008)
Sizes: 15 mm to 100 mm
Two piece, full bore bronze ball valve with a stainless steel ball, opened and closed by a quarter turn of the lever. Female threaded ends, 15 mm to 100 mm, listed for plumbing and fire fighting.
Zoloto
Zoloto Bronze Ball Valve E-Model, Full Bore, Screwed (1008A)
Sizes: 15 mm to 50 mm
Zoloto's E-Model bronze ball valve: full bore and two piece, with a stainless steel ball and quarter turn lever, in sizes 15 mm to 50 mm for plumbing and fire fighting lines.
