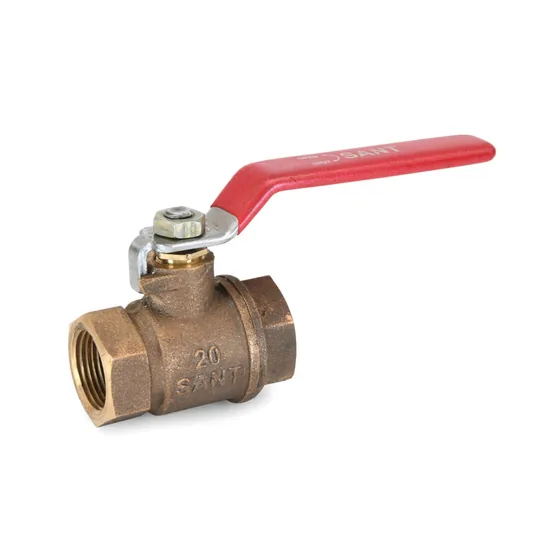

Authorised distributor for Sant ValvesSant Valves IS-20 Bronze Ball Valve, Lever Operated, Screwed
Two piece, lever operated gun metal ball valve with stainless steel ball and stem and standard bore. Screwed ends, 8 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- SS AISI-410 stem, SS-304/CF8 ball, renewable PTFE seats
- Standard bore, PTFE gland packing
- Female threads to IS-554 parallel, body and seat tested at 500 psig
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 51±2 | 51±2 | 65±2 | 65±2 | 77±2 | 88±2 | 108±2 | 120±2 | 151±2 | 172±2 | 215±2 |
| LL (Approx.) | 102 | 102 | 102 | 112 | 127 | 150 | 170 | 170 | 255 | 255 | 330 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
