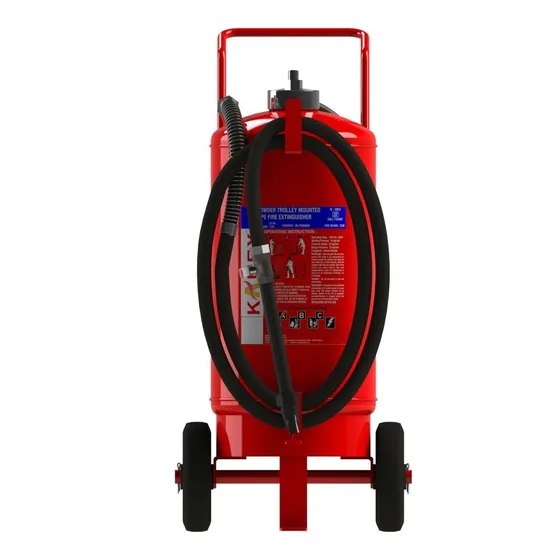

Authorised distributor for KanexTrolley scale cartridge operated extinguisher in 25, 50 and 75 kg charged with potassium bicarbonate powder. Built for fuel points, tank areas and large industrial sheds.
Standards and approvals: IS 16018:2012, BIS, ISI, IS:319, IS:617, IS 4308
Sizes: 25 kg, 50 kg, 75 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 25 kg | KFDRQ-25-P | 233B | 32 Sec | 6 m | 15 / 18 / 35 bar | 84 kg | 980 mm |
| 50 kg | KFDRQ-50-P | 233B | 40 Sec | 7.5 m | 15 / 18 / 35 bar | 120 kg | 1020 mm |
| 75 kg | KFDRQ-75-P | 233B | 51 Sec | 8 m | 15 / 18 / 35 bar | 150 kg | 1030 mm |
| Specification | 25 kg | 50 kg | 75 kg |
|---|---|---|---|
| Design | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 300±10 mm | 400±10 mm | 400±10 mm |
| Average Discharge | 90% | 92.5% | 93.5% |
| Operating Temperature | -30 °C to +55 °C | -30 °C to +55 °C | -30 °C to +55 °C |
| Expelling Agent | Co2 | Co2 | Co2 |
| Empty Weight (Approx.) | 59 kg | 70 kg | 75 kg |
| Shipping Weight (Approx.) | 85 kg | 122 kg | 152.5 kg |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 4 kg, 6 kg, 9 kg
Portable stored pressure extinguisher filled with siliconized sodium bicarbonate powder for flammable liquid, gas and electrical fires. Available in 4, 6 and 9 kg with hose and nozzle discharge.
Sizes: 4 kg, 6 kg, 9 kg
The same portable stored pressure design filled with siliconized potassium bicarbonate powder, offered in 4, 6 and 9 kg. Intended for flammable liquid, pressurised gas and electrical risks.
Sizes: 4 kg, 6 kg, 9 kg
Portable cartridge operated extinguisher in 4, 6 and 9 kg with sodium bicarbonate powder and a separate CO2 cartridge as propellant. Suited to industrial areas where a higher flammable liquid rating is wanted.
Sizes: 4 kg, 6 kg, 9 kg
Cartridge operated portable in 4, 6 and 9 kg filled with potassium bicarbonate powder, using a CO2 cartridge to expel the charge. For Class B, C and electrical fire risks.
Sizes: 25 kg, 50 kg, 75 kg
Large capacity cartridge operated DCP extinguisher in 25, 50 and 75 kg with sodium bicarbonate powder, for heavy flammable liquid and gas risks. Discharge is controllable through a ball valve, hose and nozzle.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher with sodium bicarbonate powder in 1, 2, 4, 6 and 9 kg, pressurised with dry nitrogen. The 1 kg size is rated 34B with a minimum effective discharge time of 8 seconds.
Sizes: 4 kg, 6 kg, 9 kg
Gas cartridge operated BC powder extinguisher in 4, 6 and 9 kg for industrial use and severe, usually outdoor, conditions. The 4 kg size is rated 89B with a minimum effective discharge time of 13 seconds.
Sizes: 25 kg
A wheeled 25 Kg BC dry chemical powder extinguisher in which a separate CO2 cartridge is pierced on operation to expel the powder. Suited to fuel and chemical handling areas where a cartridge mechanism is preferred.
Sizes: 25 kg, 50 kg, 75 kg
BC dry chemical powder trolley extinguishers that use CO2 stored pressure inside the cylinder for discharge, available in 25 Kg, 50 Kg and 75 Kg. The larger sizes give a long discharge for wide industrial floor areas.
Sizes: 50 kg
A 50 kg stored pressure extinguisher on a trolley, listed by Balaji for BC dry powder. The same listing also names CO2 and water CO2 types, so we confirm the agent with Balaji before supply.
