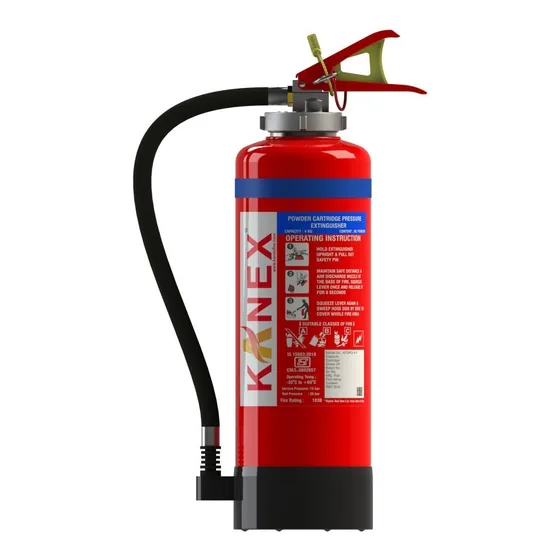

Authorised distributor for KanexCartridge operated portable in 4, 6 and 9 kg filled with potassium bicarbonate powder, using a CO2 cartridge to expel the charge. For Class B, C and electrical fire risks.
Standards and approvals: IS: 4947, IS 15683:2006, BIS, ISI
Sizes: 4 kg, 6 kg, 9 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 4 kg | KFDRQ-4-P | 183B | 15 Sec. | 4 m | 15 / 17 / 35 bar | 8 kg | 510 mm |
| 6 kg | KFDRQ-6-P | 183B | 20 Sec. | 4.5 m | 15 / 17 / 35 bar | 10.3 kg | 540 mm |
| 9 kg | KFDRQ-9-P | 233B | 30 Sec. | 5 m | 15 / 17 / 35 bar | 15.3 kg | 585 mm |
| Specification | 4 kg | 6 kg | 9 kg |
|---|---|---|---|
| Design | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 140±10 mm | 150±10 mm | 180±10 mm |
| Average Discharge | 95% | 95% | 95% |
| Operating Temperature | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C |
| Expelling Agent | Co2 gas | Co2 gas | Co2 gas |
| Empty Weight (Approx.) | 4 kg | 4.3 kg | 6.3 kg |
| Shipping Weight (Approx.) | 8.3 kg | 10.6 kg | 15.8 kg |
| Packing Standard | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 22.5"X6.75"X14.10” | 2 in 1 - 24.5"X15.3.0"X8.0" |
| Mounting Bracket | Wall bracket | Wall bracket | Wall bracket |
| Co2 gas cartridge | 120 gm | 200 gm |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 4 kg, 6 kg, 9 kg
Portable stored pressure extinguisher filled with siliconized sodium bicarbonate powder for flammable liquid, gas and electrical fires. Available in 4, 6 and 9 kg with hose and nozzle discharge.
Sizes: 4 kg, 6 kg, 9 kg
The same portable stored pressure design filled with siliconized potassium bicarbonate powder, offered in 4, 6 and 9 kg. Intended for flammable liquid, pressurised gas and electrical risks.
Sizes: 4 kg, 6 kg, 9 kg
Portable cartridge operated extinguisher in 4, 6 and 9 kg with sodium bicarbonate powder and a separate CO2 cartridge as propellant. Suited to industrial areas where a higher flammable liquid rating is wanted.
Sizes: 25 kg, 50 kg, 75 kg
Large capacity cartridge operated DCP extinguisher in 25, 50 and 75 kg with sodium bicarbonate powder, for heavy flammable liquid and gas risks. Discharge is controllable through a ball valve, hose and nozzle.
Sizes: 25 kg, 50 kg, 75 kg
Trolley scale cartridge operated extinguisher in 25, 50 and 75 kg charged with potassium bicarbonate powder. Built for fuel points, tank areas and large industrial sheds.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher with sodium bicarbonate powder in 1, 2, 4, 6 and 9 kg, pressurised with dry nitrogen. The 1 kg size is rated 34B with a minimum effective discharge time of 8 seconds.
Sizes: 4 kg, 6 kg, 9 kg
Gas cartridge operated BC powder extinguisher in 4, 6 and 9 kg for industrial use and severe, usually outdoor, conditions. The 4 kg size is rated 89B with a minimum effective discharge time of 13 seconds.
Sizes: 25 kg
A wheeled 25 Kg BC dry chemical powder extinguisher in which a separate CO2 cartridge is pierced on operation to expel the powder. Suited to fuel and chemical handling areas where a cartridge mechanism is preferred.
Sizes: 25 kg, 50 kg, 75 kg
BC dry chemical powder trolley extinguishers that use CO2 stored pressure inside the cylinder for discharge, available in 25 Kg, 50 Kg and 75 Kg. The larger sizes give a long discharge for wide industrial floor areas.
Sizes: 50 kg
A 50 kg stored pressure extinguisher on a trolley, listed by Balaji for BC dry powder. The same listing also names CO2 and water CO2 types, so we confirm the agent with Balaji before supply.
