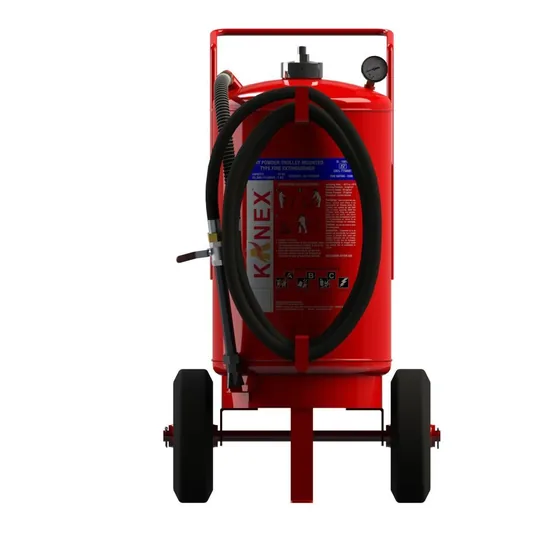

Authorised distributor for KanexLarge capacity cartridge operated DCP extinguisher in 25, 50 and 75 kg with sodium bicarbonate powder, for heavy flammable liquid and gas risks. Discharge is controllable through a ball valve, hose and nozzle.
Standards and approvals: BIS, ISI, IS:319, IS:617, IS 16018:2012, IS 4308
Sizes: 25 kg, 50 kg, 75 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 25 kg | KFDRQ-25-S | 233B | 32 Sec. | 6 m | 15 / 18 / 35 bar | 84 kg | 980 mm |
| 50 kg | KFDRQ-50-S | 233B | 40 Sec. | 7.5 m | 15 / 18 / 35 bar | 120 kg | 1020 mm |
| 75 kg | KFDRQ-75-S | 233B | 51 Sec. | 8 m | 15 / 18 / 35 bar | 150 kg | 1030 mm |
| Specification | 25 kg | 50 kg | 75 kg |
|---|---|---|---|
| Design | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 300±10 mm | 400 ±10 mm | 400 ±10 mm |
| Average Discharge | 90% | 92.5% | 93.5% |
| Operating Temperature | -30 °C to +55 °C | -30 °C to +55 °C | -30 °C to +55 °C |
| Expelling Agent | Co2 | Co2 | Co2 |
| Empty Weight (Approx.) | 59 kg | 70 kg | 75 kg |
| Shipping Weight (Approx.) | 85 kg | 122 kg | 152.5 kg |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 4 kg, 6 kg, 9 kg
Portable stored pressure extinguisher filled with siliconized sodium bicarbonate powder for flammable liquid, gas and electrical fires. Available in 4, 6 and 9 kg with hose and nozzle discharge.
Sizes: 4 kg, 6 kg, 9 kg
The same portable stored pressure design filled with siliconized potassium bicarbonate powder, offered in 4, 6 and 9 kg. Intended for flammable liquid, pressurised gas and electrical risks.
Sizes: 4 kg, 6 kg, 9 kg
Portable cartridge operated extinguisher in 4, 6 and 9 kg with sodium bicarbonate powder and a separate CO2 cartridge as propellant. Suited to industrial areas where a higher flammable liquid rating is wanted.
Sizes: 4 kg, 6 kg, 9 kg
Cartridge operated portable in 4, 6 and 9 kg filled with potassium bicarbonate powder, using a CO2 cartridge to expel the charge. For Class B, C and electrical fire risks.
Sizes: 25 kg, 50 kg, 75 kg
Trolley scale cartridge operated extinguisher in 25, 50 and 75 kg charged with potassium bicarbonate powder. Built for fuel points, tank areas and large industrial sheds.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher with sodium bicarbonate powder in 1, 2, 4, 6 and 9 kg, pressurised with dry nitrogen. The 1 kg size is rated 34B with a minimum effective discharge time of 8 seconds.
Sizes: 4 kg, 6 kg, 9 kg
Gas cartridge operated BC powder extinguisher in 4, 6 and 9 kg for industrial use and severe, usually outdoor, conditions. The 4 kg size is rated 89B with a minimum effective discharge time of 13 seconds.
Sizes: 25 kg
A wheeled 25 Kg BC dry chemical powder extinguisher in which a separate CO2 cartridge is pierced on operation to expel the powder. Suited to fuel and chemical handling areas where a cartridge mechanism is preferred.
Sizes: 25 kg, 50 kg, 75 kg
BC dry chemical powder trolley extinguishers that use CO2 stored pressure inside the cylinder for discharge, available in 25 Kg, 50 Kg and 75 Kg. The larger sizes give a long discharge for wide industrial floor areas.
Sizes: 50 kg
A 50 kg stored pressure extinguisher on a trolley, listed by Balaji for BC dry powder. The same listing also names CO2 and water CO2 types, so we confirm the agent with Balaji before supply.
