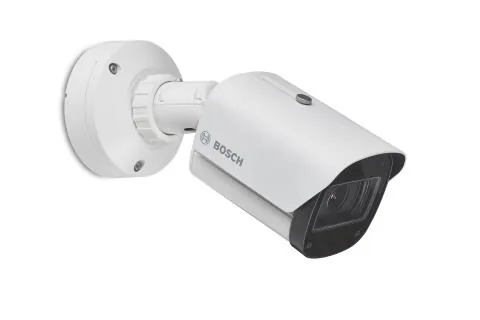

Dealer for BoschBosch AVIOTEC 8000i IR FCS-8000-VFD-I Video Fire Detection Bullet Camera, 4MP, IP67
A rugged 4MP bullet camera with built-in video fire detection that identifies smoke and flames on its own, without a separate evaluation unit.
- Detects smoke and flames from video, stand-alone with no separate evaluation unit
- Starlight X low-light performance and smart IR illumination up to 80 m
- 4MP with a 1/1.8 inch CMOS sensor and 4.4 to 10 mm lens
- Robust, corrosion resistant design for outdoor use, IP67
- Embedded processor for machine learning and deep neural networks
- Supply 24 VAC or 12 to 26 volts DC; Bosch lists VdS and CMIM
Standards and approvals: CMIM, VdS
Specifications
Specifications
| Specification | FCS-8000-VFD-I |
|---|---|
| Min. detection size for Smoke, standard setting(% of picture width) | 1.6 |
| Smoke speed(% of picture height/s) | 0.5 - 16 |
| Smoke speed(% of picture width/s) | 0%-30% |
| Min. Smoke density (%) | needs to be visible in the picture |
| Min. detection size for Flame, standard setting(% of picture width) | 1.1 |
| Min. illumination level (lx) | 1 |
| Min. illumination level with IR illumination (lx) | 0 |
| Max. illumination level for flame detection (lx) | 20,000 |
| PoE input | PoE IEEE 802.3af / 802.3at Type 1, Class 3;PoE and auxiliary power can be connected simultaneously for redundant operation |
| Input voltage (VAC) | 24 VAC ±10% |
| Input voltage (VDC) | 12 VDC: 26 VDC ±10% |
| Power consumption PoE (W) (typical: maximum) | 7 W: 12.95 W |
| Power consumption VAC (W) (typical: maximum) | 7.10 W: 13 W |
| Power consumption VDC (W) (typical: maximum) | 7.50 W: 16 W |
| Sensor type | 1/1.8 inch CMOS |
| Effective pixels (H x V px) | 2688 x 1520;2.9 μm |
| Total sensor pixels | 4.10 MP approx. |
| Low light technology | starlight X |
| Sensitivity | 30 IRE |
| Color (lx) (sensitivity measured according to IEC 62676 Part 5) | 0.0090 lx |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
