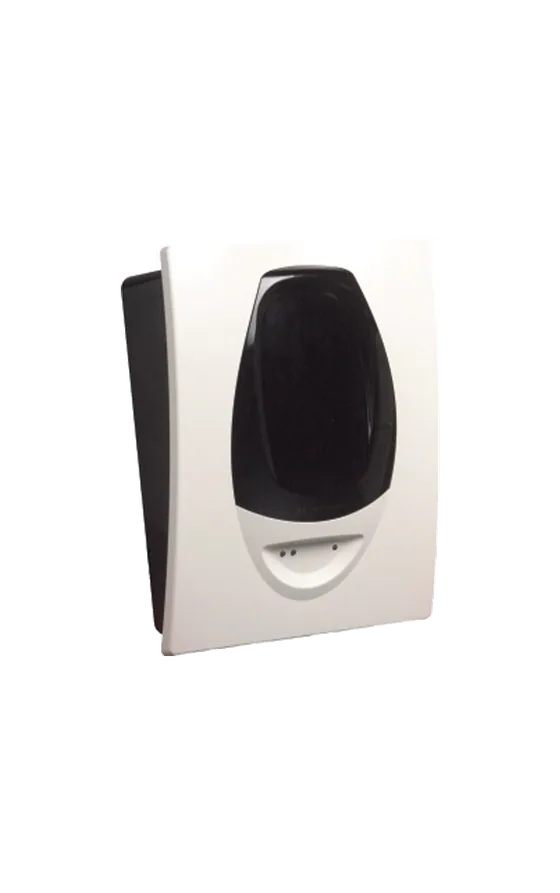

Dealer for Morley by HoneywellMorley by Honeywell MI-LPB2-S3I Addressable Reflective Optical Beam Smoke Detector
An addressable reflector-type linear beam smoke detector that works on infra red light obscuration, for large open spaces such as warehouses and atriums. The combined transmitter and receiver connects directly to an analogue loop.
- Range 10 to 70 m with the standard 200 x 230 mm reflector
- 70 to 100 m with the BEAM-LRK long range reflector kit; BEAM-SMK surface mount accessory
- Gunsight targeting device for alignment
- 15 to 32Vdc (24Vdc nominal), 2mA typical standby current
- IP54, -30°C to +55°C, 1.77kg
- EN 54-12
Standards and approvals: EN54-12
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | MI-LPB2-S3I |
|---|---|
| Weight | 1.77kg |
| Max Wire Gauge for Terminals | 2.5mm2 |
| Colour | White trim, black box |
| Material | Bayblend FR110 trim, Lexan lens cover, Noryl backbox |
| Reflector | 200 x 230mm (10 to 70m range, supplied as standard) |
| Operating Voltage Range | 15 to 32Vdc (24Vdc nominal) |
| Typical Standby Current | 2mA @ 24Vdc (No communications, LED off) |
| Maximum Alarm Current (LED on:) | 8.5mA |
| Maximum Alignment Current | 20mA |
| Operating Temperature Range | -30ºC to +55ºC |
| Humidity | 0 to 95% Relative Humidity (noncondensing) |
| IP Rating | IP54 |
| BEAM-LRK | Long Range reflector kit (70 to 100m range). 3 off 200 x 230mm. |
| BEAM-SMK | Surface Mount accessory |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
