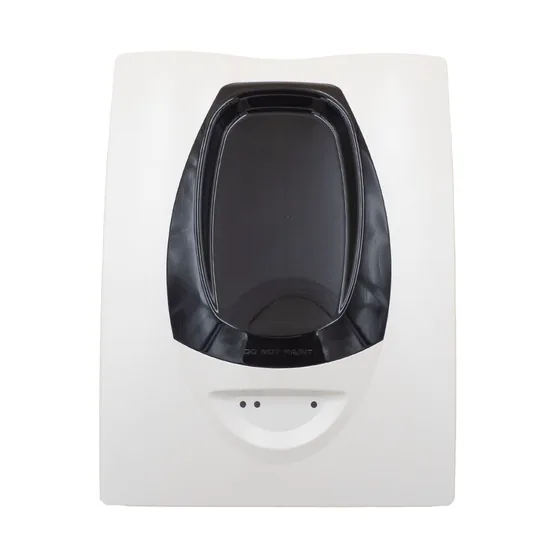

System Sensor 6500E Addressable Reflected Beam Smoke Detector
An addressable reflector-type linear optical beam detector that connects directly to an analogue loop, for buildings with large open spaces.
- Combined transmitter and receiver unit working in the infrared spectrum
- 4 fixed sensitivity levels and 2 automatic variable sensitivity modes
- Numerical indicators and plus or minus 10° horizontal and vertical beam alignment
- Automatic drift compensation, status LED visible from the front and bottom
- 15 to 32VDC, or 15 to 28.5VDC when using the built-in isolators
- IP54, -30 to +55°C, EN 54-12
Standards and approvals: EN54 to 12:2002
Specifications
Specifications
| Specification | 6500E |
|---|---|
| Operating Voltage Range | 15 to 32VDC (24VDC nominal)* 15 to 28.5VDC if using built-in isolators |
| Typical Standby Current | 2mA @ 24VDC (No communications, LED off) |
| Maximum Alarm Current (LED on) | 8.5mA |
| Application Temperature Range | -30°C to +55°C |
| Humidity | 0 to 95% Relative Humidity (non condensing) |
| IP Rating | IP54 |
| Height | 254mm, 6500-SMK backbox 230mm |
| Diameter | 84mm |
| Width | Detector 190mm, 6500-SMK backbox 178mm |
| Weight | 1.77kg |
| Max Wire Gauge for Terminals | 2.0mm2 |
| Colour | White trim, black box |
| Material | Trim - Bayblend FR110, Lens cover - Lexan, Backbox - Noryl |
| Reflector | 200 x 230mm (5 to 70m range, supplied as standard) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
