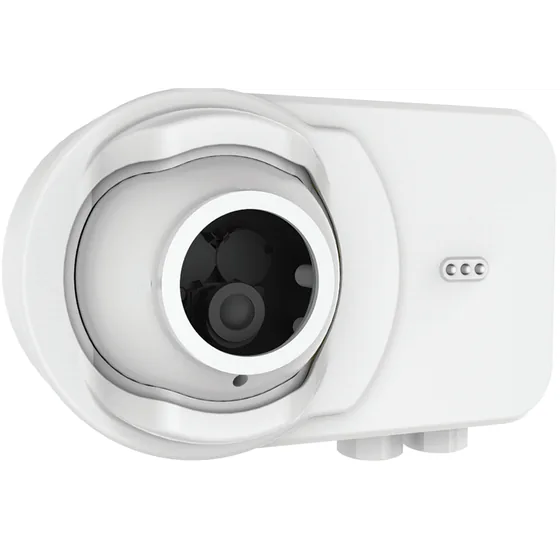

System Sensor OSI-RIE-xx Intelligent Imaging Beam Smoke Detector
An addressable reflector-type beam detector for panels using Advanced Protocol or CLIP mode communication, supplied with an 8 inch reflector.
- Range 5 to 100 m
- Wide 12° field of view with alignment shown by directional arrows
- 50° horizontal and 20° vertical beam alignment
- Resistant to building movement, strong light and large solid intruding objects
- 15 to 32 VDC without isolator, 15 to 28.5 V with isolator
- Complies with EN 54-12
Standards and approvals: EN54-12
Specifications
Specifications
| Specification | OSI-RIE-xx |
|---|---|
| Operating Voltage Range | Without isolator: 15 to 32 VDC | (24VDC nominal) | With Isolator: 15-28.5V |
| Maximum Standby Current | 13 mA @ 32 VDC | (polling device once per second) | 20 mA @ 15 VDC | (polling device once per second) |
| Maximum Alarm Current | 22 mA @ 32 VDC | (LED on) (polling device once per second) | 22 mA @ 15 VDC | (polling device once per second) |
| Resistance to building movement | Horizontal: 0.8° | Vertical: 1° |
| Humidity | 0 to 95% Relative Humidity | (non- condensing) |
| Operating Temperature Range | -20°C to +55°C. | UL-Listed for use from 0°C to 37.8°C |
| Weight OSI-RIE-xx | 1.12 kg (2.48 lbs) |
| Shipping weight OSI-RIE-xx | 1.77 kg (3.91 lbs) |
| Wire Gauge for Terminals | 14 AWG (2.08 mm2) |
| Colour | Lyric White |
| Detector (WxHxD) | 254 mm × 152.4 mm × 114.3 mm | (10” x 6” x 4.5”) |
| Reflector | 200 x 230 mm (7.87” x 9.06“) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
