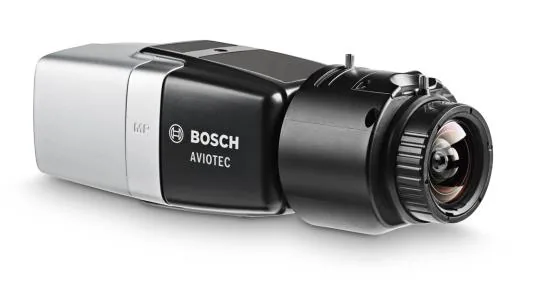

Dealer for BoschBosch AVIOTEC IP starlight 8000 FCS-8000-VFD-B Video-Based Fire Detection Camera, 1080p
A video-based fire detection camera that identifies smoke and flames, with 1080p resolution and strong low-light performance.
- Video-based detection of smoke and flames
- Covers a large monitoring area
- Resolution 1080p with performance in low light
- Designed to be robust against false alarms
- Operating temperature in °C: -20 to 50, humidity 20 to 93% non-condensing
- Bosch lists VdS, CB, CMIM, CSIRO and FCC certificates
Standards and approvals: CB, CMIM, CSIRO, FCC, VdS
Specifications
Specifications
| Specification | FCS-8000-VFD-B |
|---|---|
| Operating temperature (°C) | -20 to 50 |
| Operating temperature (°F) | -4 to 122 |
| Storage temperature (°C) | -30 to 70 |
| Storage temperature (°F) | -22 to 158 |
| Alarm inputs | 2 |
| Alarm outputs | 1 |
| Minimum signal-to-noise ratio (dB) | 50 |
| Operating relative humidity, non-condensing (%) | 20 to 93 |
| Storage relative humidity (%) | 0 to 98 |
| Color (lx) | 2 |
| Audio input | Line-in |
| Audio output | Line-out |
| Compression and sampling rate | G.711 8 kHz; L16 16 kHz; AAC-LC 80kbps 16 kHz; AAC-LC 48kbps 16 kHz |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
