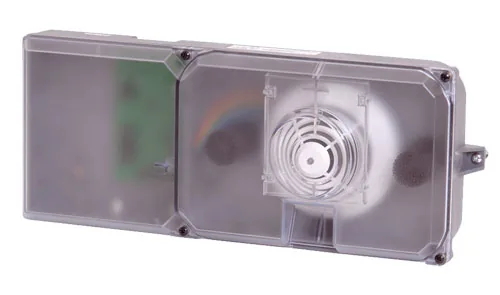

Dealer for BoschAn air sampling housing with connection board and detector base that, with the FAD-425-O-R detector ordered in addition, detects smoke in ventilation ducts and reports it over the LSN improved bus.
Standards and approvals: CB, CMIM, CNBOP, CPR, VdS
| Specification | FAD-420-HS-EN |
|---|---|
| Operating voltage (VDC) | 15 to 33 |
| Dimensions (H x W x D) (cm) | 16.50 x 39.50 x 11 |
| Operating temperature (°C) | 0 to 50 |
| Storage temperature (°C) | -20 to 80 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 0 to 95 |
| Color | Gray |
| Material | Plastic |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
An analog addressable aspirating smoke detector for one pipe system (FAS-420-TP1) or two pipe systems (FAS-420-TP2), with LED displays for operation, malfunction and alarm.
An analog addressable aspirating smoke detector with a differentiated alarm and smoke level display, for one pipe system (FAS-420-TT1) or two pipe systems (FAS-420-TT2).
A compact analog addressable aspirating smoke detector for one pipe system, with LED displays for operating mode, malfunction and alarm.
A compact analog addressable aspirating smoke detector for one pipe system that pinpoints the fire location by monitoring up to five distinct zones.
A compact analog addressable aspirating smoke detector with room identification and a 10-segment smoke level display, for one pipe system.
A conventional aspirating smoke detector for one pipe system (FCS-320-TP1) or two pipe systems (FCS-320-TP2), with LED displays for operation, malfunction and alarm.
An aspirating smoke detector that draws air from separate sampling points through microbore tubes, so it can pinpoint the location of a fire threat. It has three sensitivity settings and an IP40 enclosure.
A very early warning aspirating smoke detector for small, business-critical areas of less than 500 m2 (5,380 sq ft). It samples air continuously through a pipe network and detects very small amounts of smoke with light scattering.
An aspirating smoke detector with a built-in SLC module that communicates directly with Notifier panels over the SLC loop, offered in one-pipe and four-pipe models (VEP-A00-1P-NTF-VN, VEP-A00-P-NTF-VN and VEP-A10-P-NTF-VN).
An aspirating smoke detector with sector addressability for up to four sectors and a built-in SLC module for direct connection to Notifier panels (VES-A00-P-NTF-VN and VES-A10-P-NTF-VN).
An addressable reflector-type linear beam smoke detector that works on infra red light obscuration, for large open spaces such as warehouses and atriums. The combined transmitter and receiver connects directly to an analogue loop.
An intelligent reflector-type beam smoke detector that uses IR video imaging, for spacious rooms, open areas and high ceilings, with only one device to install and align.
