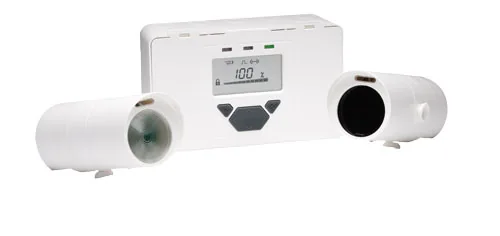

Dealer for BoschAn end-to-end linear beam detector for light and dark smoke across 5 to 120 m, for very large and high halls where point detectors cannot be used.
Standards and approvals: CB, CPR, VdS
| Specification | FIRERAY3000 |
|---|---|
| Weight (g) | 600 |
| Operating voltage (VDC) | 12 to 36 |
| Operating temperature (°C) | -10 to 55 |
| Wavelength (nm) | 850 |
| Color | Gray |
| LED color | Red; Yellow; Green |
| Material | Plastic |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
Conventional reflective linear smoke detectors with transmitter, receiver and evaluation unit in one compact housing: the Fireray 50RV for 5 to 50 m and the Fireray 100RV for 50 to 100 m.
A reflective linear smoke detector with one detector head and one prism for 8 to 50 m, extendable to 50 to 100 m with four prisms, which Bosch states complies with EN 54-12.
A standalone reflective linear beam detector with an integrated control unit and a motorised head that aligns itself, covering 5 to 120 m.
An aspirating smoke detector that draws air from separate sampling points through microbore tubes, so it can pinpoint the location of a fire threat. It has three sensitivity settings and an IP40 enclosure.
A very early warning aspirating smoke detector for small, business-critical areas of less than 500 m2 (5,380 sq ft). It samples air continuously through a pipe network and detects very small amounts of smoke with light scattering.
An aspirating smoke detector with a built-in SLC module that communicates directly with Notifier panels over the SLC loop, offered in one-pipe and four-pipe models (VEP-A00-1P-NTF-VN, VEP-A00-P-NTF-VN and VEP-A10-P-NTF-VN).
An aspirating smoke detector with sector addressability for up to four sectors and a built-in SLC module for direct connection to Notifier panels (VES-A00-P-NTF-VN and VES-A10-P-NTF-VN).
An addressable reflector-type linear beam smoke detector that works on infra red light obscuration, for large open spaces such as warehouses and atriums. The combined transmitter and receiver connects directly to an analogue loop.
An intelligent reflector-type beam smoke detector that uses IR video imaging, for spacious rooms, open areas and high ceilings, with only one device to install and align.
