Ravel RE-428 Series Reflective Beam Smoke Detector
A reflective beam smoke detector with the infrared transmitter and receiver in one housing, for large indoor spaces. It is ordered as the RE-428FR or the longer range RE-428HR.

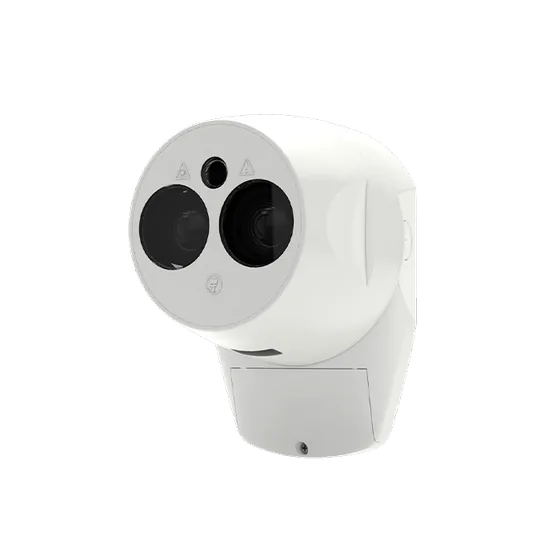

Dealer for RavelRavel EazyBeam Auto Aligning Reflective Beam Smoke Detector
A standalone reflective beam smoke detector that aligns itself and keeps its alignment as the building moves. It can be installed and commissioned by one person.
- Laser assisted auto alignment and building movement tracking
- Range up to 50 m, or up to 120 m with the long range reflector kit
- Four alarm threshold settings, from 25% to 85%
- Separate alarm and fault relays
- 14 to 36 V DC, IP55, UL94 V0 polycarbonate housing
- Ravel states UL listing
Standards and approvals: UL
Specifications
Specifications
| Specification | EazyBeam |
|---|---|
| Operating Voltage | 14 to 36 VDC |
| Operating current | All operational modes, 5mA; Fast alignment mode, 33mA |
| Operating temperature | -20 to +55°C |
| Storage temperature | -40 to +85°C |
| Relative humidity (non-condensing or icing) | 0 to 93% |
| IP rating | Ip55 |
| Housing flammability rating | UL94 V0 polycarbonate |
| Fault level / Rapid obscuration (Δ ≤ 2 seconds) | ≥85% |
| Maximum angular misalignment of Reflective Detector | ±0.5° |
| Maximum angular misalignment of Reflector | ±5° |
| Maximum angular alignment of Reflective Detector | ±4.5°(±70° with adjustment bracket accessory) |
| Detection range | 0 to 50m 0 to 120m with Reflective Long Range Kit |
| Alignment method | Laser assisted, Auto-AlignmentTM. Manual alignment: optional setting |
| Auto-AlignmentTM protocol | Background check, Box search, Adjust and Centre |
| Building Movement TrackingTM | Compensates for natural shifts in alignment from building movement* |
| Contamination Compensation | Compensates for gradual build-up of contamination on the optical surfaces |
| Light Cancellation TechnologyTM | Compensates for high levels of sunlight and artificial lighting |
| Optical wavelength: smoke detection | 850nm near infrared (invisible) |
| Integrated laser: laser alignment | 650nm visible. Class IIIa <5mW |
| Dynamic Beam Phasing | Allows beam detectors to be mounted facing each other with the reflectors in the middle. Eliminates false alarms caused by crosstalk between beams |
| Signal output | Individual Alarm and Fault relays (VFCO) 2A @ 30 VDC |
| Alarm response threshold levels | 25% (1.25dB): Fastest response to smoke 35% (1.87dB), Default value 55% (3.46dB), High immunity to false alarms, slow response to smoke 85% (8.23dB), Highest immunity to false alarms, slowest response to smoke. Configured via the integrated user interface |
| Delay to Alarm | 10 seconds, for momentary partial obstruction of the beam path |
| Delay to Fault | 10 seconds, for momentary obstruction of the beam path |
| Separation distance between Detector and Reflector | 5 to 50m 50 to 120m with Reflective Long Range Kit |
| Beam path clearance | 1m in diameter from centre line between Detector and Reflector |
| Detector dimensions | 130W x 181H x 134D in mm (see diagram) |
| Reflector dimensions | Up to 50m separation distance, Single reflector 100mm x 100mm x 9mm Up to 120m separation distance, Four reflectors arranged in a square patter 200mm x 200mm x9mm |
| Product weight | Detector: 0.7kg; Reflector, 0.1kg |
| Multi-detector arrangement | Dynamic Beam Phasing allows for Detectors to face each other with the reflectors in the middle |
| Housing colour | White RAL9016, UV stable |
| Cable gauge and type | 2 core, dedicated, 0.5 to 1.6mm (24 to 14 AWG) System compatible with fireproof and non-fireproof cable meeting local installation standards |
| Cable entry | 3 knock-out locations capable of accepting M20, 1⁄2″ or 3⁄4″ glands | 4 drill-out locations capable of accepting glands up to 21mm diameter |
| Alarm test | Optical alarm test using Commissioning and Maintenance Kit accessory |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
