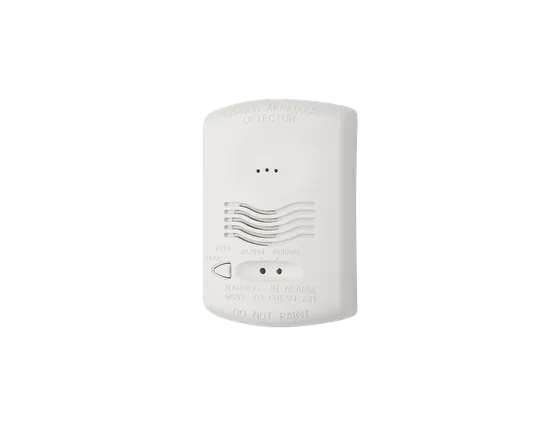

System Sensor CO1224T 6-Wire Carbon Monoxide Detector with RealTest (Square and Round CO1224TR)
A 12/24 VDC carbon monoxide detector that sounds and flashes a temporal 4 alarm when dangerous CO levels are detected, available in the standard CO1224T and the round CO1224TR.
- RealTest allows functional testing with canned CO gas
- Trouble relay sends sensor failure or end-of-life signals to the panel
- Alarm and trouble contacts rated 0.5 A at 30 VDC
- 20 mA in standby and 40 mA in alarm
- Wiring supervision with SEMS terminals, wall or ceiling mounting
- Operating temperature 0 to 40°C, humidity 22 to 90% RH, tested up to 12,000 feet above sea level
Specifications
Specifications
| Specification | CO1224T | CO1224TR |
|---|---|---|
| Operating Voltage | 12/24 VDC | 12/24 VDC |
| Audible Signal | 85 dB in alarm | 85 dB in alarm |
| Standby Current | 20 mA | 20 mA |
| Alarm Current | 40 mA (75 mA test) | 40 mA (75 mA test) |
| Alarm Contact Ratings | 0.5 A @ 30 VDC | 0.5 A @ 30 VDC |
| Trouble Contact Ratings | 0.5 A @ 30 VDC | 0.5 A @ 30 VDC |
| Size: CO1224T & CO1224A | Length: 5.1 in (130 mm), Width: 3.3 in (84 mm), Height: 1.3 in (33 mm) | |
| Approximate Weight | CO1224T & CO1224A: 7 oz (198 g); CO1224TR: 11 oz (312 g) | CO1224T & CO1224A: 7 oz (198 g); CO1224TR: 11 oz (312 g) |
| Operating Temperature Range | 32°F to 104° F (0°C to 40° C) | 32°F to 104° F (0°C to 40° C) |
| Operating Humidity Range | 22 to 90% RH | 22 to 90% RH |
| Input Terminals | 14 to 22 AWG | 14 to 22 AWG |
| Mounting | Single-gang back box; surface mount to wall or ceiling | Single-gang back box; surface mount to wall or ceiling |
| Size: CO1224TR | Diameter: 6.0 in (152 mm), Height: 1.3 in (33 mm) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
