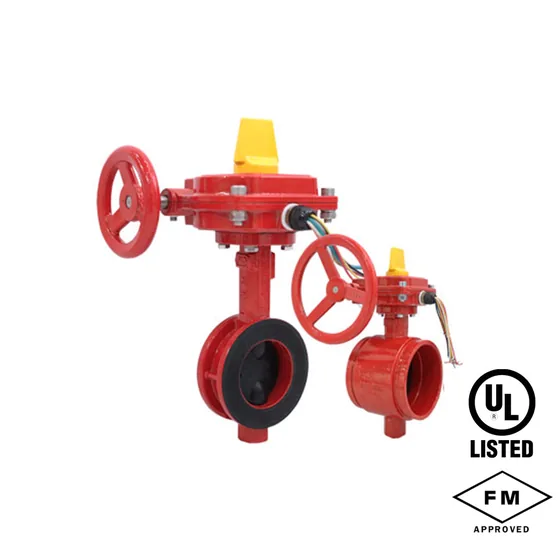

Dealer for HD FireFire protection butterfly valves in wafer, lugged and grooved types with an integral tamper switch, rated for 300 psi. The ductile iron body is fusion bonded epoxy coated, and HD states the valve gives bubble tight shut-off with little pressure drop.
Standards and approvals: UL Listed, FM Approved, ASTM A536
Sizes: 2″ to 12″
| Specification | 2″ to 12″ |
|---|---|
| Size | 2″ to 12″ |
| Maximum Working Pressure | 300 PSI |
| Body & Gear Box | Ductile Iron Construction (ASTM A536, 65-45-12) |
| Disc | Ductile Iron with EPDM |
| Drive Shaft | Stainless Steel |
| SIZES | 2” (50NB), 2.5” (65NB), 3” (80NB), 4” (100NB), 6” (150NB), 8” (200NB), 10” (250NB), 12” (300NB) |
| MAXIMUM WORKING PRESSURE | 300 psi (21 kg/sq.cm) |
| TEMPERATURE RATING | 0 - 80°C |
| BODY | Ductile iron conforming to ASTM A-536, grade 65-45-12 |
| DISC | Ductile iron ASTM A-536, EPDM Coated |
| COATING | Fusion Bond Epoxy Coating (In accordance with ANSI/ AWWA C550) |
| MODEL | Wafer Type: HDMW250, HDMW300, HDMWPN16 Grooved Type: HDMG250, HDMG300, HDPGPN16 Lug Type: HDML250, HDML300, HDMLPN16 (Refer Table 1 for details) |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Sizes: 50 to 300 mm (2” to 12”)
Resilient wedge gate valves for fire protection in OS&Y and non-rising stem (NRS) versions, rated for 21 bar (300 psi). The OS&Y type shows clearly whether it is open or shut, and both are UL Listed and FM Approved.
Post indicators that show the position of a non-rising stem gate valve and let it be operated from outside: the HD-IP vertical post for underground valves, adjustable for bury depth, and the HD-WP wall post for valves behind a wall. Both are UL Listed and FM Approved.
Bourdon tube pressure gauges for fire protection systems in a polished stainless steel case that seals against weather, moisture and dust. HDP-1 has a 90 mm dial and phosphor bronze Bourdon tube, and the range is UL Listed and FM Approved.
Sizes: 50 to 200 NB (2” to 8”)
A pilot operated pressure reducing valve for fire protection that brings a high inlet pressure down to a steady, set outlet pressure under varying flow. It comes in 50 to 200 NB with grooved or flanged ends.
A swing check valve that lets water flow one way only, opening when flow pressure exceeds its cracking pressure and closing promptly when flow stops or reverses, to protect the system from back flow and pressure surges. It is UL Listed and FM Approved.
A compact three position ball valve (OFF, TEST and DRAIN) with a drain orifice of K 5.6, or K 4.2 as an option, and a tamper resistant sight glass. It is made of brass to ASTM B584 and is UL Listed and FM Approved.
Sizes: 50 mm to 377 mm
Grooved end butterfly valve in ductile iron, designed to BS EN 593 with grooves to ISO 6182, rated PN16. Sizes listed from 50 mm to 377 mm.
Sizes: 50 mm to 200 mm
Lever operated wafer butterfly valve with a cast iron body, EPDM lining and SS 304 disc, rated PN16. Seat and disc are replaceable, 50 mm to 200 mm.
Wafer type butterfly valve with a CI body and an integrally moulded Nitrile or EPDM liner, PN 1.0, to IS 13095. K701 has a CF8-304 stainless disc and K702 a CF8M-316 disc; sizes 25 mm to 600 mm.
A red cast iron wafer butterfly valve for fire lines, with an S.S. disc, EPDM liner and SS stem, lever operated and direct actuator mountable, in PN 16 and ISI marked. Sizes 50 mm to 200 mm, higher sizes on request.
Sizes: PN 1.6 to 150 mm
Lever operated wafer butterfly valve with SG iron body and SG iron disc, rated PN 1.6 (1.6 MPa), for 40 mm to 150 mm lines. Designed to IS 13095 / BS EN 593 and listed with the ISI mark.
Sizes: PN 1.0 to 600 mm
Gear operated wafer butterfly valve with SG iron body and disc for large lines from 200 mm to 600 mm, designed to IS 13095 / BS EN 593, in PN 1.0 and PN 1.6 ratings.
