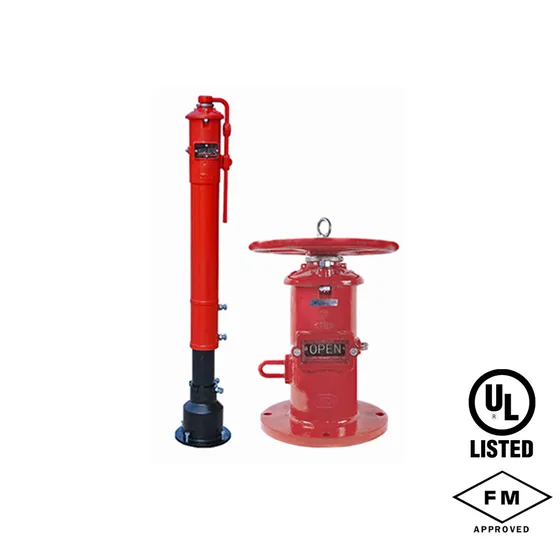

Dealer for HD FirePost indicators that show the position of a non-rising stem gate valve and let it be operated from outside: the HD-IP vertical post for underground valves, adjustable for bury depth, and the HD-WP wall post for valves behind a wall. Both are UL Listed and FM Approved.
Standards and approvals: UL Listed, FM Approved
| Specification | Details |
|---|---|
| MODELS | HD-IP (Vertical type- adjustable length), HD-WP (Wall type) |
| SIZES OF NRS GATE VALVE TO BE USED WITH INDICATOR POST | 4” to 24” (100 NB to 600 NB) * |
| MATERIAL OF CONSTRUCTION | Refer specification table for Indicator Post & NRS Gate Valve |
| FINISH | Fusion bonded epoxy coating (internal & external) in accordance with ANSI/ AWWA C550, RAL 3000 |
| REFERENCE STANDARD | UL 789, FM Class Number 1110 |
| ORDERING INFORMATION | Type of Indicator Post (i.e.Vertical or Wall), Model Number & Size of NRS Gate Valve |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Sizes: 2″ to 12″
Fire protection butterfly valves in wafer, lugged and grooved types with an integral tamper switch, rated for 300 psi. The ductile iron body is fusion bonded epoxy coated, and HD states the valve gives bubble tight shut-off with little pressure drop.
Sizes: 50 to 300 mm (2” to 12”)
Resilient wedge gate valves for fire protection in OS&Y and non-rising stem (NRS) versions, rated for 21 bar (300 psi). The OS&Y type shows clearly whether it is open or shut, and both are UL Listed and FM Approved.
Bourdon tube pressure gauges for fire protection systems in a polished stainless steel case that seals against weather, moisture and dust. HDP-1 has a 90 mm dial and phosphor bronze Bourdon tube, and the range is UL Listed and FM Approved.
Sizes: 50 to 200 NB (2” to 8”)
A pilot operated pressure reducing valve for fire protection that brings a high inlet pressure down to a steady, set outlet pressure under varying flow. It comes in 50 to 200 NB with grooved or flanged ends.
A swing check valve that lets water flow one way only, opening when flow pressure exceeds its cracking pressure and closing promptly when flow stops or reverses, to protect the system from back flow and pressure surges. It is UL Listed and FM Approved.
A compact three position ball valve (OFF, TEST and DRAIN) with a drain orifice of K 5.6, or K 4.2 as an option, and a tamper resistant sight glass. It is made of brass to ASTM B584 and is UL Listed and FM Approved.
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Forged carbon steel gate valve to API 602 with bolted bonnet, outside screw and yoke and rising stem. Class 600 flanged ends, 15 mm to 40 mm.
Sizes: 15 mm to 40 mm
High pressure forged steel gate valve conforming to BS-5352/API 602, rated Class 1500 with socket welded ends. Sizes 15 mm to 40 mm.
Cast iron sluice valve with a non rising stem, flanged ends drilled to IS 1538, SS AISI 410 shaft and gunmetal working parts, made to IS 14846. With cap (K501 PN1.0, K503 PN1.6) or handwheel (K502 PN1.0, K504 PN1.6), 50 mm to 600 mm.
Cast iron sluice valve with a rising spindle, flanged ends drilled to IS 1538, SS AISI 410 shaft and gunmetal working parts, made to IS 14846, in PN1.0 (K505) or PN1.6 (K506), 50 mm to 600 mm.
Sizes: 8 mm to 100 mm
Compact hex body bronze gate valve with a non rising stem, designed for fitting where space is tight. Female threaded ends, 8 mm to 100 mm.
Sizes: 8 mm to 100 mm
Peg type bronze gate valve designed to BS EN 12288 (BS 5154), with a non rising stem and female threaded ends, 8 mm to 100 mm.
