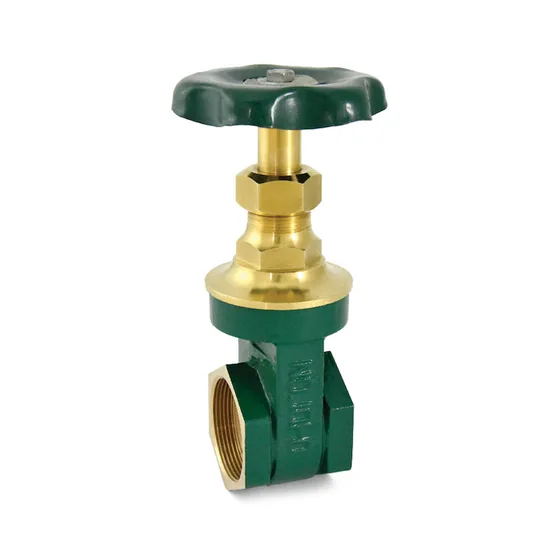

Dealer for ZolotoZoloto Bronze Gate Valve, Hex Type, Screwed (1006)
Compact hex body bronze gate valve with a non rising stem, designed for fitting where space is tight. Female threaded ends, 8 mm to 100 mm.
- Female threads to IS 554 / BS 21 / ISO 7
- Screwed in bonnet, inside screw, non rising stem, integral seat
- Forged brass bonnet, wedge, stem and gland nut
- Sheet metal handwheel and PTFE gland packing
- Maximum working temperature 225°C
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 1006 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/4* | 3/8* | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2* | 3* | 4* | |
| Size (mm) | 8* | 10* | 15 | 20 | 25 | 32 | 40 | 50 | 65* | 80* | 100* | |
| A ±1.5 | 35 | 38 | 41 | 45 | 50 | 54 | 60 | 65 | 76 | 92 | 105 | |
| B ~ | 92 | 96 | 103 | 122 | 137 | 150 | 166 | 200 | 250 | 292 | 365 | |
| ØC ~ | 60 | 60 | 60 | 65 | 70 | 90 | 90 | 110 | 120 | 138 | 160 | |
| D | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | |
| Shell | 24 kg/cm²g (340 psig) | |||||||||||
| Seat | 16 kg/cm²g (225 psig) | |||||||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
