Gate and sluice valves isolate a pipeline by moving a wedge across the flow, and are fitted wherever a line must be shut fully, such as hydrant and sprinkler mains, pump suction and delivery lines and water mains. Fire Protection System supplies cast iron, ductile iron, bronze and steel gate and sluice valves, including UL Listed OS&Y and NRS fire valves, from Sant Valves, Kartar Valves, Zoloto, New Age and HD Fire in Bhopal and across Madhya Pradesh.
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Forged carbon steel gate valve to API 602 with bolted bonnet, outside screw and yoke and rising stem. Class 600 flanged ends, 15 mm to 40 mm.
Sizes: 15 mm to 40 mm
High pressure forged steel gate valve conforming to BS-5352/API 602, rated Class 1500 with socket welded ends. Sizes 15 mm to 40 mm.
Sizes: 10 mm to 40 mm
Standard bore forged steel wedge gate valve to BS 5352/API 602, Class 800, with socket welded ends. Sizes 10 mm to 40 mm.
Sizes: 10 mm to 40 mm
Screwed end version of Sant's Class 800 forged steel wedge gate valve, to BS 5352/API 602, with female NPT threads. Sizes 10 mm to 40 mm.
Sizes: 40 mm to 200 mm
Cast carbon steel (ASTM A-216 Gr. WCB) gate valve conforming to BS-1414/API 600, with OS&Y rising stem and Class 600 flanges. Sizes 40 mm to 200 mm.
Sizes: 50 mm to 300 mm
Ductile iron sluice valve with a non rising stem and a soft, EPDM covered wedge that seals without a metal seat. PN-16, flanged to IS-1538 with drilled flanges, 50 mm to 300 mm.
Sizes: 15 mm to 150 mm
SBM standard pattern gun metal gate valve with inside screw and non rising stem, flanged to BS 10 Table D. Sizes 15 mm to 150 mm, for water and oil.
Sizes: 8 mm to 100 mm
SBM standard pattern gun metal gate valve with non rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
Sizes: 8 mm to 100 mm
Peglar type PN-20 gun metal gate valve with non rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
Sizes: 15 mm to 80 mm
Small bore cast iron gate valve with clamped bonnet and rising stem, a renewable seat and Cu-alloy trim. Screwed BSP ends, 15 mm to 80 mm, for water and oil.
Sizes: 15 mm to 80 mm
All iron version of Sant's clip pattern gate valve, with integral seat and no bronze trim. Screwed BSP ends, 15 mm to 80 mm, for water and oil.
Sizes: 15 mm to 100 mm
Gun metal gate valve with outside screw and yoke and rising stem, made as per IS-778 Class 2. Screwed ends, 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
Class 1 version of Sant's OS&Y bronze gate valve, made as per IS-778 with a rising stem. Screwed ends, 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 50 mm
Class 3 gun metal gate valve made to IS-778:1971, with inside screw and non rising stem. Screwed ends, 15 mm to 50 mm, for water and oil.
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with inside screw and rising stem. Flanged ends, 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with rising stem and screwed ends. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with non rising stem and flanged ends. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with non rising stem and screwed ends. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with rising stem and flanged ends. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 8 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with rising stem and screwed ends. Sizes 8 mm to 100 mm, for water and oil.
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with non rising stem and flanged ends. Sizes 15 mm to 100 mm, for water and oil.
Sizes: 8 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with non rising stem and screwed ends. Sizes 8 mm to 100 mm, for water and oil.
Sizes: 50 mm to 300 mm
ISI marked cast iron sluice valve to IS 14846, rated PN 16, with bolted bonnet and non rising stem. Drilled IS 1538 flanges, 50 mm to 300 mm, for water mains.
Sizes: 50 mm to 300 mm
Cast iron wedge gate sluice valve with outside screw and yoke and rising stem, rated PN 10, with face to face dimensions as per IS 14846. Drilled IS 1538 flanges, 50 mm to 300 mm.
Sizes: 50 mm to 300 mm
ISI marked cast iron sluice valve to IS 14846, rated PN 10, with bolted bonnet and non rising stem. Drilled IS 1538 flanges, 50 mm to 300 mm, for water mains.
Sizes: 50 mm to 300 mm
PN 16 cast iron wedge gate sluice valve with outside screw and yoke and rising stem, face to face as per IS 14846. Drilled IS 1538 flanges, 50 mm to 300 mm.
Sizes: 50 mm to 300 mm
Cast iron wedge gate sluice valve with bolted bonnet, inside screw and non rising stem, body tested at 2.4 MPa and seat tested at 1.6 MPa minimum. Drilled IS 1538 flanges, 50 mm to 300 mm.
Sizes: 50 mm to 300 mm
PN 10 cast iron wedge gate sluice valve with face to face and flange dimensions as per IS 780, non rising stem and renewable wedge. Sizes 50 mm to 300 mm, for water.
Cast iron sluice valve with a non rising stem, flanged ends drilled to IS 1538, SS AISI 410 shaft and gunmetal working parts, made to IS 14846. With cap (K501 PN1.0, K503 PN1.6) or handwheel (K502 PN1.0, K504 PN1.6), 50 mm to 600 mm.

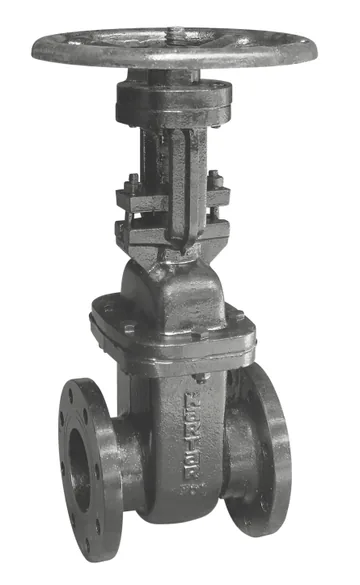

Cast iron sluice valve with a rising spindle, flanged ends drilled to IS 1538, SS AISI 410 shaft and gunmetal working parts, made to IS 14846, in PN1.0 (K505) or PN1.6 (K506), 50 mm to 600 mm.

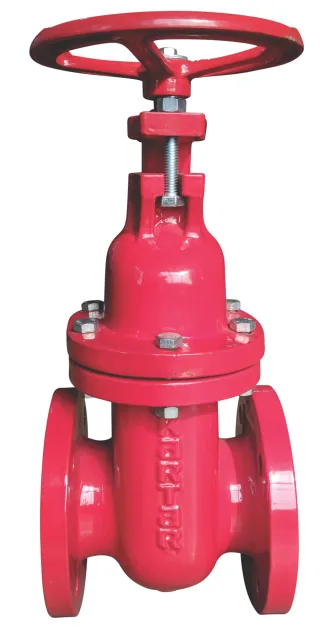

Extra strong non rising sluice valves: the red cast iron K-931X in PN16 to IS 14846 (50 mm to 200 mm), and the made to order high pressure K504-X (PN1.6, CI body), K504-XX (PN2.0, DI body) and K504-XXX (PN2.5, DI body) in 80 mm to 200 mm.

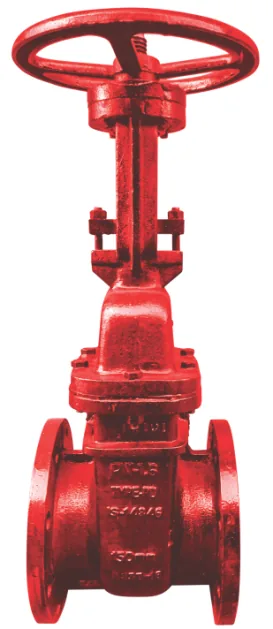

A red cast iron sluice valve with a rising spindle for fire lines, flanged ends, SS AISI 410 stem and bronze (gunmetal) working parts, made to IS 14846 with handwheel operation in PN 16. Sizes 50 mm to 200 mm, higher on request.
Ductile iron resilient seated gate valve with a non rising stem, pocket less body, toroidal sealing, EPDM coated DI wedge and 250 micron epoxy coating, to IS 14846 and BS 5163. With handwheel (K511, 50 mm to 1000 mm) or cap (K511C, 50 mm to 300 mm); the website also lists PN10 and PN16, ISI marking and resilient or metal seating.

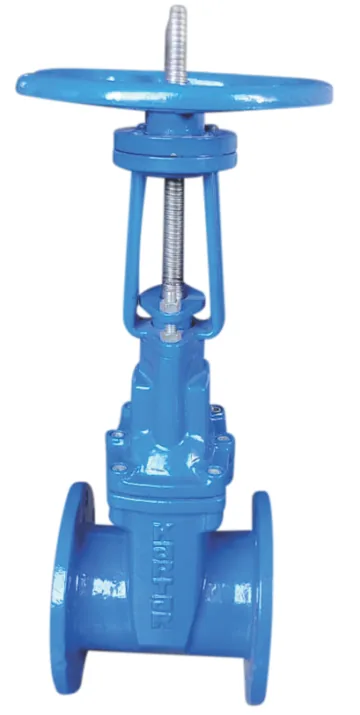

Ductile iron resilient seated gate valve with a rising stem of the outside screw and yoke type, handwheel operated, with EPDM coated DI wedge, toroidal sealing and 250 micron epoxy coating, to IS 14846 and BS 5163 in PN1.6, 50 mm to 600 mm.
The Aqua model of Kartar's DI resilient seated gate valve, non rising, with handwheel (K511 EH) or cap (K511 EC), EPDM coated DI wedge and 250 micron epoxy coating, to IS 14846 and BS 5163 in PN 1.6. Sizes 80, 100, 150 and 200 mm.

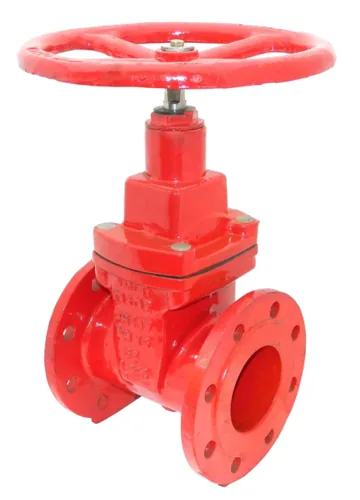

A red ductile iron resilient (soft) seated gate valve for fire lines, with SS AISI 410 stem, EPDM coated DI wedge and vacuum tight design, to BS 5163 and IS 14846, non rising with handwheel, PN16. Sizes 50 mm to 200 mm, higher on request.
A cast steel gate valve with flanged ends drilled to CL-150, a rising stem of the outside screw and yoke type and an SS AISI 410 stem, made to BS 1414. Sizes 40 mm to 300 mm.
A cast steel gate valve with flanged ends drilled to CL-300, a rising stem of the outside screw and yoke type and an SS AISI 410 stem, made to BS 1414. Sizes 40 mm to 250 mm.
A gunmetal (bronze) gate valve made to IS 778 in PN1.0 (CI-I), with screwed ends (K601) or flanged ends (K605), in 15 mm to 100 mm.
A three phase, stay put, multi turn electrical actuator without starter for non rising sluice valves and resilient gate valves, 50 mm to 600 mm. Kartar notes it is a bought out item and the brand is confirmed before ordering.
Spares for Kartar CI valves in 50 mm to 600 mm: hand wheel, cap, SS stem with GM nut, nut and bolt sets for one IS 1538 flange, flange rubber gasket, M.S. flanges and complete flaps for GM or rubber seated NRVs.
Sizes: 8 mm to 100 mm
Compact hex body bronze gate valve with a non rising stem, designed for fitting where space is tight. Female threaded ends, 8 mm to 100 mm.
Sizes: 8 mm to 100 mm
Peg type bronze gate valve designed to BS EN 12288 (BS 5154), with a non rising stem and female threaded ends, 8 mm to 100 mm.
Sizes: 8 mm to 100 mm
ISI marked bronze gate valve made to IS 778 Class 1, with a solid wedge and non rising stem, female threaded, 8 mm to 100 mm.
Sizes: 8 mm to 100 mm
Higher pressure Class 2 version of Zoloto's ISI marked bronze gate valve, made to IS 778 Class 2, female threaded, 8 mm to 100 mm.
Sizes: 15 mm to 100 mm
Bronze gate valve with an inside screw rising stem, so the open or shut position can be seen, with female threaded ends, 15 mm to 100 mm.
Sizes: 15 mm to 50 mm
Class 2 bronze gate valve with an inside screw rising stem and female threaded ends, 15 mm to 50 mm, with a 225°C temperature limit.
Sizes: 15 mm to 100 mm
Flanged, ISI marked bronze gate valve made to IS 778 Class 1, with IS 778 flanges, a solid wedge and non rising stem, 15 mm to 100 mm.
Sizes: 50 mm to 600 mm
Cast iron sluice valve made to IS 14846 PN 1.0, with bolted bonnet and non rising stem, flanged to IS 1538, from 50 mm to 600 mm. Listed for plumbing and fire fighting.
Sizes: 50 mm to 300 mm
PN 1.6 cast iron sluice valve made to IS 14846 and ISI marked, with bolted bonnet and non rising stem, flanged to IS 1538, 50 mm to 300 mm.
Sizes: 50 mm to 300 mm
Outside screw and yoke cast iron sluice valve with a rising spindle, so its position can be seen, PN 1.0, flanged to IS 1538, 50 mm to 300 mm.
Sizes: 50 mm to 300 mm
PN 1.6 outside screw and yoke cast iron sluice valve with a rising spindle and solid wedge, flanged to IS 1538, 50 mm to 300 mm.
Sizes: 50 mm to 300 mm
Ductile iron sluice valve made to IS 14846 PN 1.6 and ISI marked, with bolted bonnet and non rising stem, flanged to IS 1538, 50 mm to 300 mm.
Sizes: 2 ½” to 12″

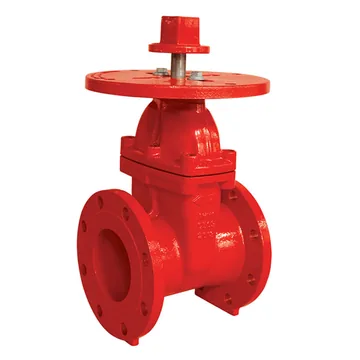

UL Listed non rising stem gate valve to AWWA C515, 200 psi nominal pressure, with flanged ends, handwheel operated, 2½ inch to 12 inch.
Sizes: 2 ½” to 12″

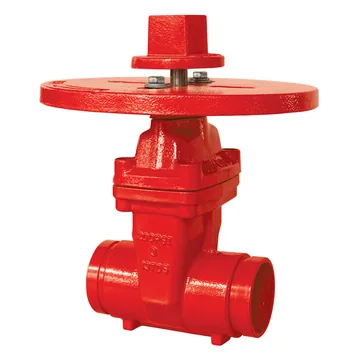

UL Listed non rising stem gate valve to AWWA C515, 200 psi, with grooved ends to metric or AWWA C606, 2½ inch to 12 inch.
Sizes: 2 ½” to 12″

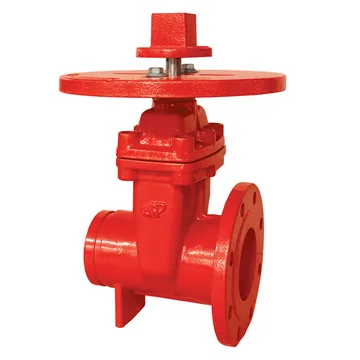

UL Listed non rising stem gate valve to AWWA C515, 200 psi, with one flanged and one grooved end, for joining flanged and grooved pipework.
Sizes: 2″ to 12″

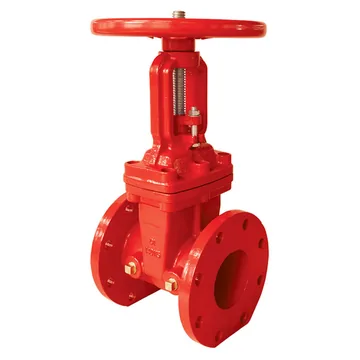

UL Listed outside screw and yoke gate valve to AWWA C515, 200 psi, with flanged ends, 2 inch to 12 inch.
Sizes: 2 to 12″

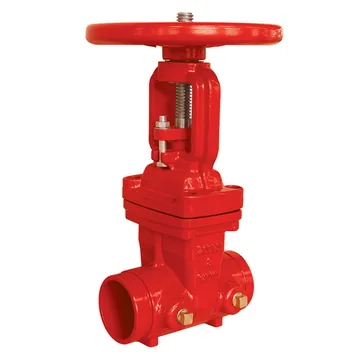

UL Listed outside screw and yoke gate valve to AWWA C515, 200 psi, with grooved ends to metric or AWWA C606, 2 inch to 12 inch.
Sizes: 2″ to 12″

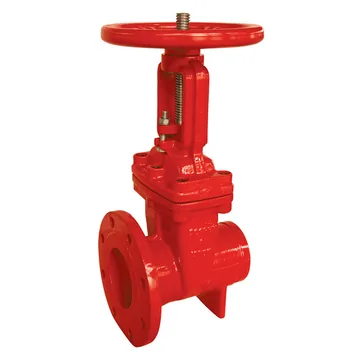

UL Listed outside screw and yoke gate valve to AWWA C515, 200 psi, with one flanged and one grooved end, 2 inch to 12 inch.
Sizes: 2 ½” to 12″

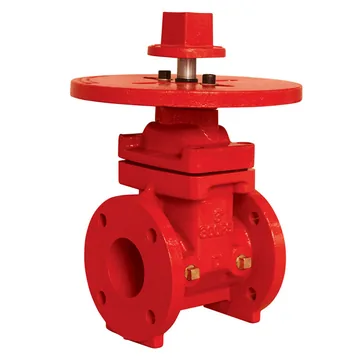

Higher pressure UL Listed non rising stem gate valve to AWWA C515, 300 psi nominal pressure, with flanged ends, 2½ inch to 12 inch.
Sizes: 2 ½” to 12″

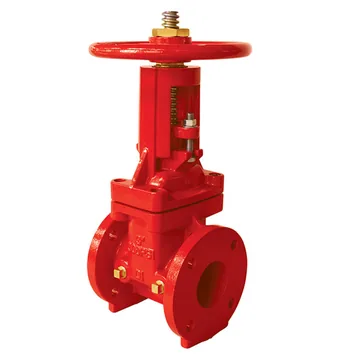

Higher pressure UL Listed outside screw and yoke gate valve to AWWA C515, 300 psi, with flanged ends, handwheel operated, 2½ inch to 12 inch.
Sizes: 50 to 300 mm (2” to 12”)

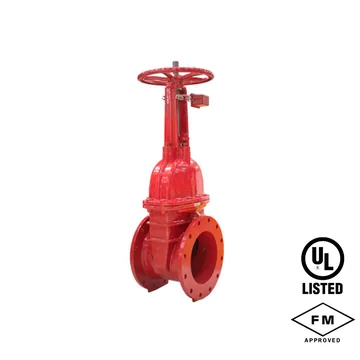

Resilient wedge gate valves for fire protection in OS&Y and non-rising stem (NRS) versions, rated for 21 bar (300 psi). The OS&Y type shows clearly whether it is open or shut, and both are UL Listed and FM Approved.

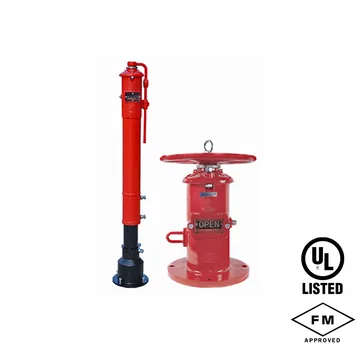

Post indicators that show the position of a non-rising stem gate valve and let it be operated from outside: the HD-IP vertical post for underground valves, adjustable for bury depth, and the HD-WP wall post for valves behind a wall. Both are UL Listed and FM Approved.

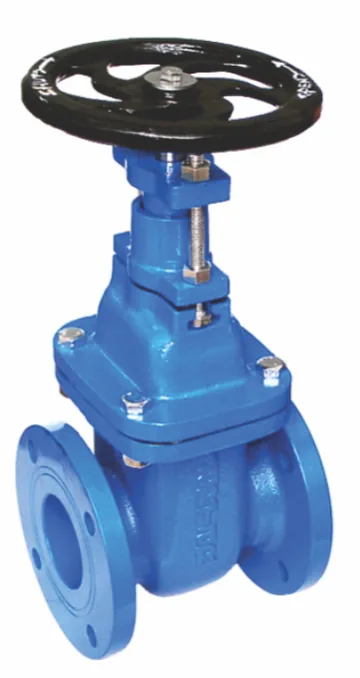

A ductile iron sluice valve, which Kartar notes is also available alongside its cast iron sluice valves. Size, class and ends are confirmed with the maker before quoting.
A box type enclosed gear box for Kartar sluice valves and resilient seated gate valves, listed for valve sizes 50 mm to 600 mm.
An extension stem for operating buried non rising sluice valves and resilient gate valves from above, including the fixing coupler, operative stem, outer housing and cap. Listed for valve sizes 50 mm to 600 mm.
A supervisory switch arrangement that reports the position of a sluice valve or resilient gate valve on a monitored fire main, offered UL/FM approved or non UL/FM, for rising or non rising stems.
Start with what the specification asks for. Where a fire main calls for listed valves, HD Fire offers OS&Y and NRS resilient wedge gate valves that are UL Listed and FM Approved, rated 21 bar (300 psi), from 50 to 300 mm, and New Age offers UL Listed OS&Y and NRS gate valves to AWWA C515 at 200 psi or 300 psi, from 2 to 12 inch. Where an Indian standard is asked for, Sant Valves, Kartar Valves and Zoloto make cast iron and ductile iron sluice valves to IS 14846, with ISI marked models such as the Sant Valves CR-32 and CR-32B, the Zoloto 1079A, 1079B and 1096 and the Kartar Valves K511.
Then match the pressure rating and size, choosing a rating that covers the highest pressure your pump can produce in that line. IS 14846 sluice valves come in two pressure classes, written PN1.0 and PN1.6 by Kartar Valves and Zoloto and PN 10 and PN 16 by Sant Valves. Kartar Valves also makes the extra strong K504-X series to order up to PN2.5, and the red K-931X, K-932 and K-933 for fire lines in PN 16. Sizes reach 600 mm on the Kartar Valves CI sluice valves and the Zoloto 1079A, and 1000 mm on the Kartar Valves K511, while the Sant Valves sluice valves run from 50 mm to 300 mm. For high pressure duty there are cast steel gate valves (Kartar Valves to BS 1414 in Class 150 and Class 300, Sant Valves CS-7B to API 600 in Class 600) and Sant Valves forged steel valves to API 602 from 10 mm to 40 mm.
Choose a rising or non rising stem. An OS&Y (outside screw and yoke) or rising stem valve shows at a glance whether it is open or shut, which helps on fire mains where a closed valve must be noticed: HD Fire, New Age, Kartar Valves (K505, K506, K511 R, K-932), Sant Valves (CR-32A, CR-19B) and Zoloto (1079C, 1079D) all offer one. A non rising stem needs less headroom and suits valve chambers and buried valves. For these, HD Fire offers UL Listed and FM Approved vertical (HD-IP) and wall (HD-WP) post indicators for its NRS valves from 4 to 24 inch, and Kartar Valves offers an extension stem (K535), an enclosed gear box (K507), a three phase electrical actuator (K534) and a supervisory switch (K536) in UL/FM approved or non UL/FM versions.
Finally pick the seat, material and ends. Resilient seated valves, such as the HD Fire resilient wedge valves, the Kartar Valves K511 series and K-933 and the Sant Valves RSV, seal with an EPDM covered wedge, while metal seated valves close a solid wedge onto a renewable or integral seat. Ends can be flanged to IS 1538, ANSI B16.1 Class 125 or BS EN 1092 PN16, grooved to AWWA C606 (New Age), or flanged at one end and grooved at the other. For small bore lines, Sant Valves, Kartar Valves and Zoloto offer gun metal and bronze gate valves to IS 778 from 8 mm to 100 mm, screwed or flanged, many of them ISI marked, and Zoloto adds a compact hex type and a peg type to BS EN 12288.
