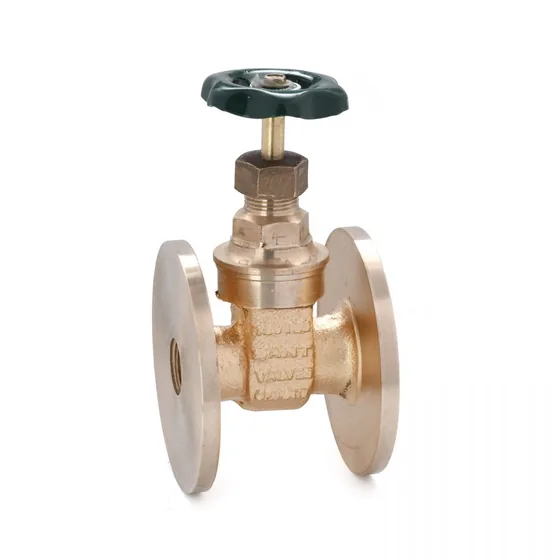

Authorised distributor for Sant ValvesSant Valves SBM-3 Bronze Gate Valve, Flanged (BS 10 Table D)
SBM standard pattern gun metal gate valve with inside screw and non rising stem, flanged to BS 10 Table D. Sizes 15 mm to 150 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Screwed in bonnet, solid wedge, integral seat, Cu-alloy trim
- Expanded pure flexible graphite gland packing
- Body test 30.60 kg/cm² (435 lbs/inch²), seat test 20.40 kg/cm²
Sizes: 15 mm to 150 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 |
| F | 68 | 78 | 87 | 94 | 112 | 118 | 140 | 145 | 178 | 215 | 260 |
| H | 100 | 115 | 135 | 145 | 160 | 190 | 225 | 265 | 320 | 325 | 440 |
| W | 60 | 60 | 65 | 80 | 80 | 90 | 145 | 175 | 200 | 225 | 270 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
