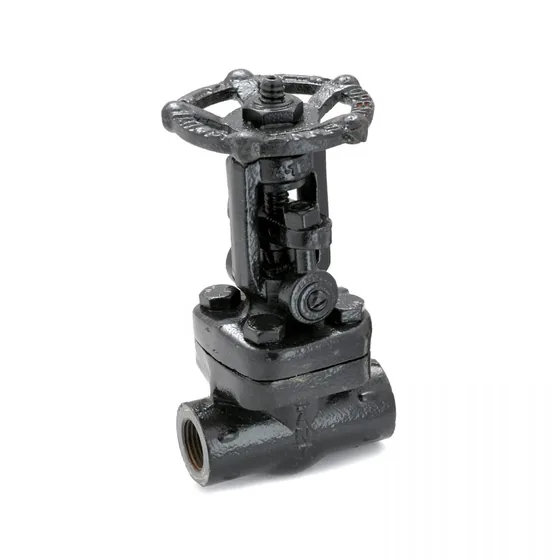

Authorised distributor for Sant ValvesSant Valves FSV-5B Forged Steel Wedge Gate Valve, Class 800, Socket Weld
Standard bore forged steel wedge gate valve to BS 5352/API 602, Class 800, with socket welded ends. Sizes 10 mm to 40 mm.
- Forged carbon steel A 105 body, bolted bonnet, OS&Y rising stem
- Solid wedge, renewable seat, SS AISI 410 trim
- Alloy steel Gr. B7/2H fasteners, spiral wound SS 304 gasket
- Socket welded ends to ASME B16.11
Standards and approvals: BS 5352/API 602
Sizes: 10 mm to 40 mm
Specifications
Specifications
| Specification | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 10 | 15 | 20 | 25 | 32 | 40 |
| Nominal Size (Inches) | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 |
| F | 80±2 | 88±2 | 100±2 | 105±2 | 105±2 | 117±2 |
| H (Approx) | 138 | 145 | 170 | 205 | 225 | 250 |
| W (Approx) | 76 | 76 | 86 | 120 | 120 | 120 |
| A | 10 | 10 | 13 | 13 | 13 | 13 |
| B | 17.5 | 21.7 | 27.2 | 33.9 | 42.55 | 48.65 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
