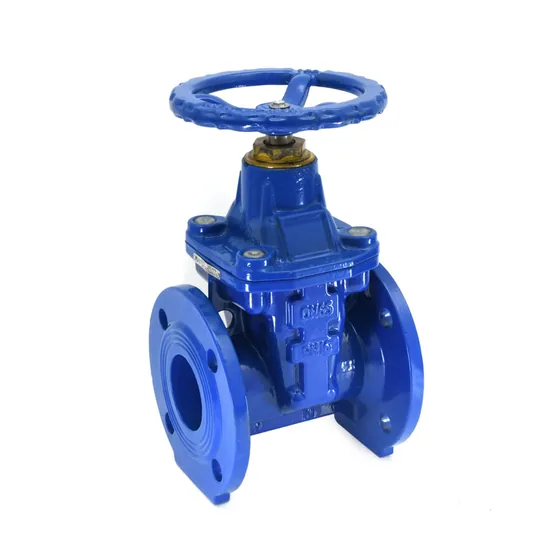

Authorised distributor for Sant ValvesSant Valves RSV Ductile Iron Resilient Seated Gate (Sluice) Valve, PN-16
Ductile iron sluice valve with a non rising stem and a soft, EPDM covered wedge that seals without a metal seat. PN-16, flanged to IS-1538 with drilled flanges, 50 mm to 300 mm.
- D.I. (SG iron) body with DI+EPDM wedge
- Non rising stem, AISI-420 stem trim, NBR O ring gland
- Flanged ends to IS-1538 R/F, drilled
- Body test 2.4 MPa, seat test 1.6 MPa
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| F±2 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 |
| H | 216 | 254 | 282 | 307 | 365 | 409 | 515 | 625 | 705 |
| øD | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| nXød | 4X19 | 4X19 | 4X19 | 8X19 | 8X19 | 8X23 | 8X23 | 12X23 | 12X23 |
| K | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
