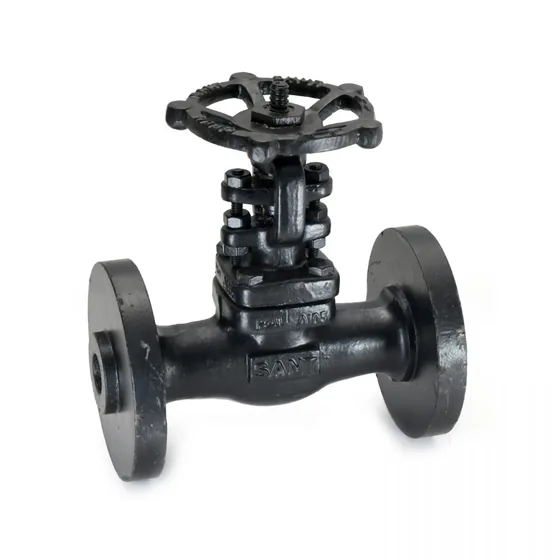

Authorised distributor for Sant ValvesSant Valves FSV-11 Forged Steel Gate Valve, Class 600, Flanged
Forged carbon steel gate valve to API 602 with bolted bonnet, outside screw and yoke and rising stem. Class 600 flanged ends, 15 mm to 40 mm.
- Body in forged carbon steel ASTM A 105
- Solid wedge, renewable seat and AISI 410 trim
- Flanges to ASME B 16.5 Class 600 RF, undrilled
- Body hydro test 153 barg (2220 psig)
Standards and approvals: API 602, BS 5352
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 40 mm |
|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 40 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/2 |
| F | 165±2 | 190±2 | 216±2 | 241±2 |
| H (Approx) | 135 | 140 | 165 | 230 |
| W (Approx) | 98 | 98 | 105 | 140 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
