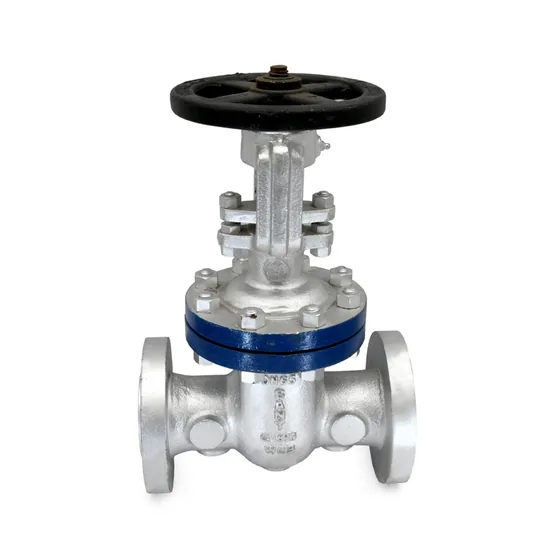

Authorised distributor for Sant ValvesSant Valves CS-7B Cast Steel Gate Valve, Class 600, Flanged
Cast carbon steel (ASTM A-216 Gr. WCB) gate valve conforming to BS-1414/API 600, with OS&Y rising stem and Class 600 flanges. Sizes 40 mm to 200 mm.
- Bolted bonnet, outside screw and yoke, rising stem
- Solid or flexible wedge with renewable seat
- Trim in SS AISI-410 with aluminium bronze sleeves
- Flanges to ASME B 16.5 Class 600 RF, undrilled
Standards and approvals: Conforming to BS-1414/API 600
Sizes: 40 mm to 200 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 |
| F±2 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
| H (Approx.) | 350 | 400 | 425 | 465 | 560 | 665 | 760 | 925 |
| ∅W (Approx.) | 229 | 229 | 229 | 254 | 305 | 405 | 450 | 500 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
