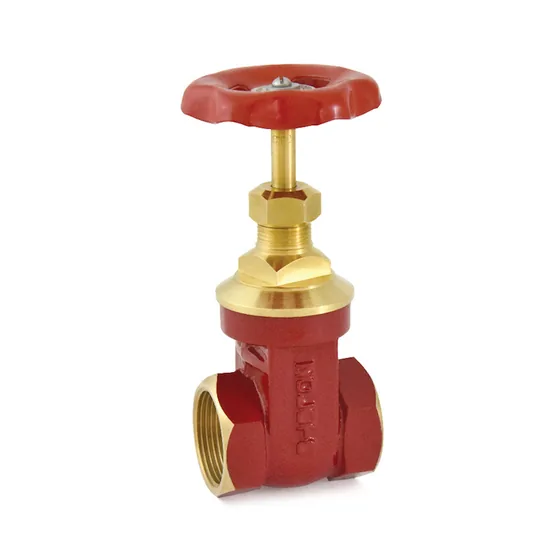

Dealer for ZolotoZoloto Bronze Gate Valve, Peg Type, BS EN 12288, Screwed (1007)
Peg type bronze gate valve designed to BS EN 12288 (BS 5154), with a non rising stem and female threaded ends, 8 mm to 100 mm.
- Design standard BS EN 12288 (BS 5154)
- Female threads to IS 554 / BS 21 / ISO 7
- Screwed in bonnet, inside screw, non rising stem, integral seat
- Sheet metal handwheel and PTFE gland packing
- Maximum working temperature 225°C
Standards and approvals: BSEN 12288 (BS 5154), BS:5154
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 1007 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/4* | 3/8* | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4* | |
| Size (mm) | 8* | 10* | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100* | |
| A ±1.5 | 43 | 43 | 48 | 53 | 60 | 68 | 72 | 83 | 94 | 105 | 127 | |
| B ~ | 89 | 92 | 105 | 114 | 129 | 139 | 155 | 189 | 220 | 250 | 307 | |
| ØC ~ | 50 | 50 | 60 | 65 | 70 | 80 | 90 | 110 | 120 | 140 | 160 | |
| D | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | |
| Shell | 25 kg/cm²g (350 psig) | |||||||||||
| Seat | 16 kg/cm²g (225 psig) | |||||||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
