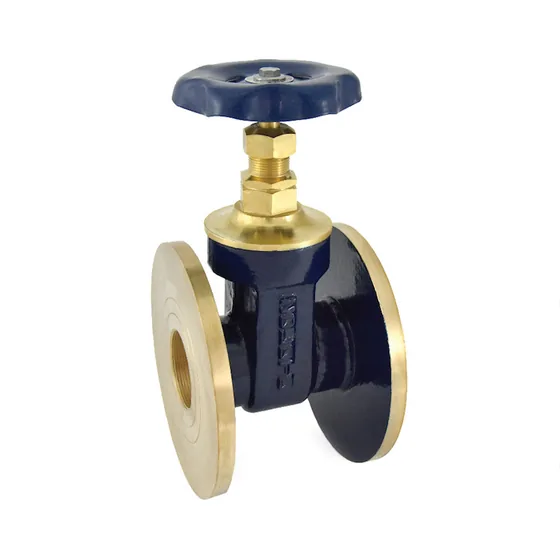

Dealer for ZolotoZoloto Bronze Gate Valve, IS 778 Class 1, Flanged (1036)
Flanged, ISI marked bronze gate valve made to IS 778 Class 1, with IS 778 flanges, a solid wedge and non rising stem, 15 mm to 100 mm.
- Design standard IS 778, Class 1, ISI marked
- Flanged ends to IS 778
- Screwed in bonnet, inside screw, non rising stem, solid wedge
- Can be re-packed under pressure; PTFE gland packing
- Maximum working temperature 45°C
Standards and approvals: IS 778, Class-1, ISI, IS:778 CL-1
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 1036 |
|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| A ±1.5 | 72 | 76 | 90 | 100 | 110 | 120 | 140 | 150 | 190 | |
| B ~ | 105 | 117 | 132 | 140 | 172 | 190 | 214 | 268 | 323 | |
| ØC ~ | 60 | 65 | 70 | 80 | 90 | 110 | 115 | 140 | 160 | |
| Shell | 1.5 MPa | |||||||||
| Seat & Back Seat | 1.0 MPa | |||||||||
| Maximum Working Temperature | 45°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
