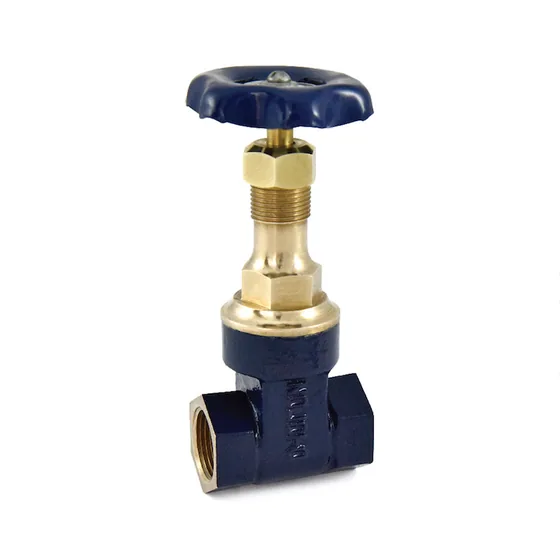

Dealer for ZolotoZoloto Bronze Gate Valve, Rising Stem, Screwed (1035B)
Bronze gate valve with an inside screw rising stem, so the open or shut position can be seen, with female threaded ends, 15 mm to 100 mm.
- Rising stem, inside screw, solid wedge, integral seat
- Female threads to IS 554 / BS 21 / ISO 7
- Can be re-packed under pressure
- Sheet metal handwheel and PTFE gland packing
- Maximum working temperature 45°C
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 1035B |
|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| A ±1.5 | 60 | 60 | 70 | 80 | 90 | 100 | 105 | 125 | 160 | |
| B ~ | 120 | 128 | 150 | 188 | 214 | 243 | 310 | 360 | 432 | |
| ØC ~ | 60 | 65 | 70 | 80 | 90 | 110 | 115 | 140 | 160 | |
| D | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ | |
| Shell | 1.5 Mpa | |||||||||
| Seat & Back Seat | 1.0 Mpa | |||||||||
| Maximum Working Temperature | 45°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
